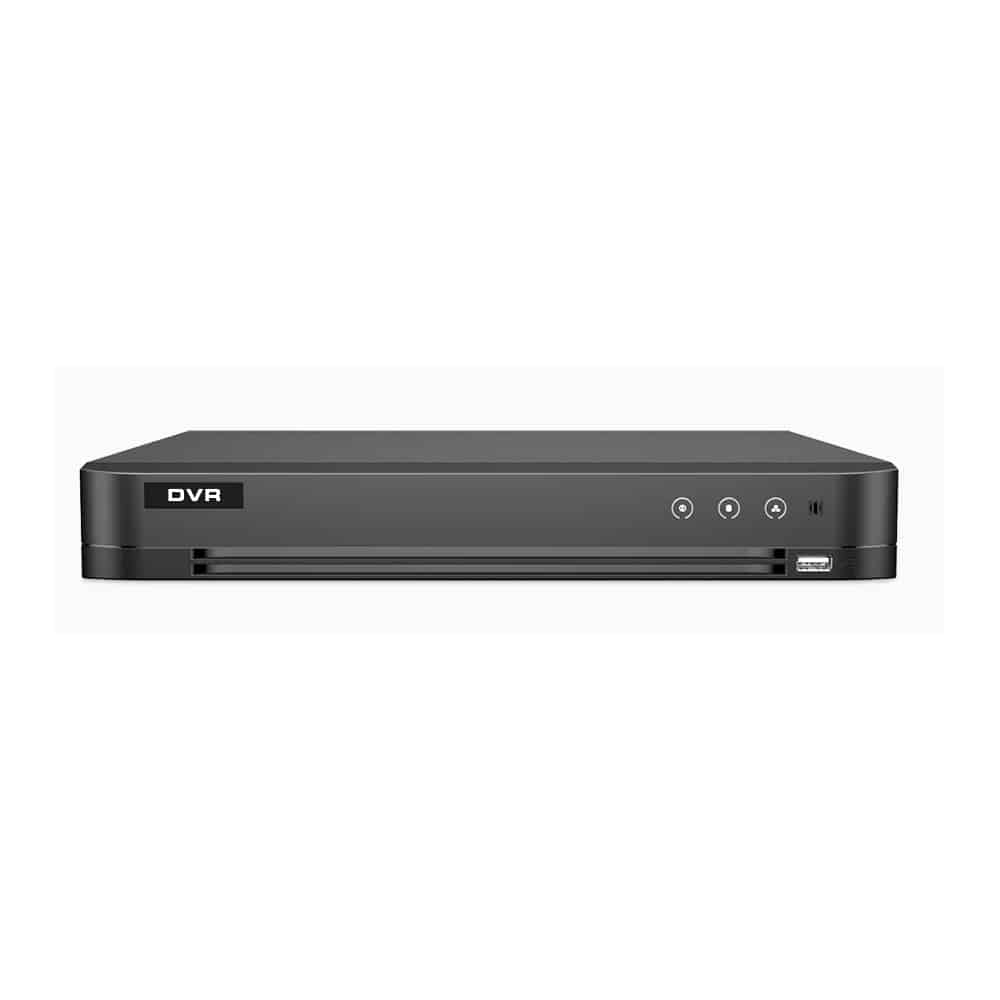

CCTV101 4CH 5MP/3K Lite AcuSense 5-in-1 HD CCTV DVR Recorder

CCTV101 4CH 5MP/3K Lite AcuSense 5-in-1 HD CCTV DVR Recorder

£70.00 inc VAT

The all new CCTV101 3K 4ch DVR supports facial recognition and true 2-way audio over coax for TVI cameras. Records up to 3K (5MP), supports additional IP channels, and uses AcuSense for human/vehicle detection. VGA/HDMI/CVBS video outputs.

Features

  • 4 channels and 1 HDD 1U AcuSense DVR
  • Support 1-ch Facial Recognition or 2-ch Advanced model Perimeter Protection based on Deep Learning algorithm
  • Support 2-ch AcuSearch Technology
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 3K/5MP Lite @ 12 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 6-ch network cameras can be connected
  • Support All channels Motion Detection Technology
  • Support All channels HDTVI Two-Way Audio Technology
SKU: 4CH-3K Category: Brand:
Description

The new CCTV101 3K DVR series supports TVI/AHD/CVI cameras up to 3K (5MP) resolution and for the first time ever in native HD-over-coax, this DVR supports the latest 2-way audio TVI cameras. The DVR also supports older analogue CVBS cameras and includes support for a certain number of IP channels (see specifications).

AOC (audio over coax) is built in as standard (CCTV101 & Hikvision TVI cameras only). Powered by the latest AcuSense AI technology, the DVR delivers human/vehicle-based detection and offers VGA/HDMI and CVBS video outputs.

Specifications

Facial Recognition

Face Picture Comparison

Face picture comparison, face picture search (1-ch face picture comparison alarm for

HD analog camera)

Face Picture Library

Up to 16 face picture libraries

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog

channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Perimeter Protection

Human/Vehicle Analysis

Up to 2-ch

Video and Audio

IP Video Input

2-ch (up to 6-ch), Up to 6 MP resolution

Analog Video Input

4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

3K(2960 x 1665)@25/20 fps, 3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4

MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

AHD Input

5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps,

720P@25/30fps

HDCVI Input

3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30

fps,1080P@25/30 fps, 720P@25/30fps

CVBS Input

PAL/NTSC

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

Audio Input

1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback

4-ch

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p Lite mode is not enabled:

3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled:

3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate

Main stream:

When 1080p Lite mode not enabled:

For 3K stream access: 3K lite@12fps;4 MP

lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP

lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps

(N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled:

3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bitrate

32 Kbps to 6 Mbps

Dual-stream

Support main stream or sub stream

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Network

Remote Connection

32

Total Bandwidth

72 Mbps

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,

ONVIF

Network Interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Wi-Fi

Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

SATA

1 SATA interface, up to 10 TB capacity for each disk

Serial Interface

RS-485 (half-duplex)

USB Interface

Front panel: 1 × USB 2.0;

Rear panel: 1 × USB 2.0

Alarm In/Out

N/A (optional to support)

General

Power Supply

12 VDC, 1.5 A

Consumption

≤ 18 W

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)

Weight

≤ 1.16 kg (2.6 lb)
Additional information
Brand

CCTV101
Channels

4 Channel
Technology

5-in-1
Resolution

5 MegaPixel
