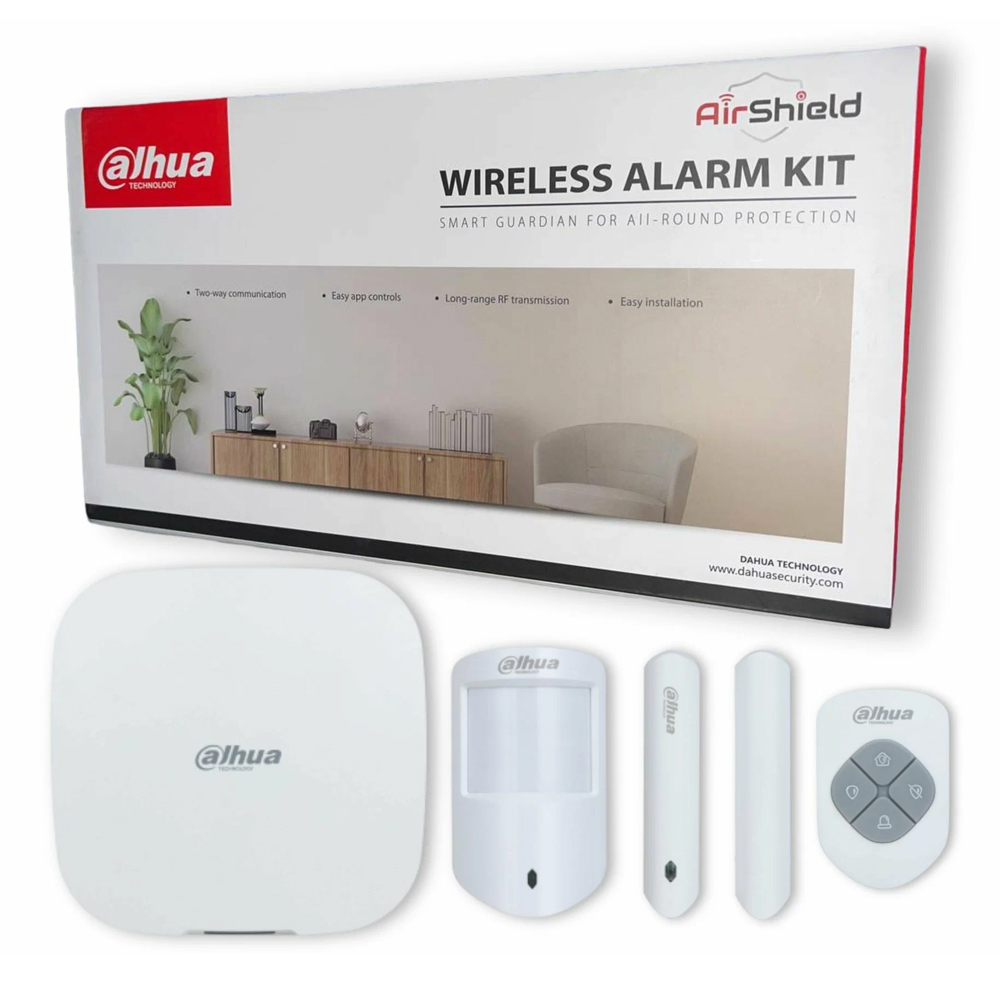

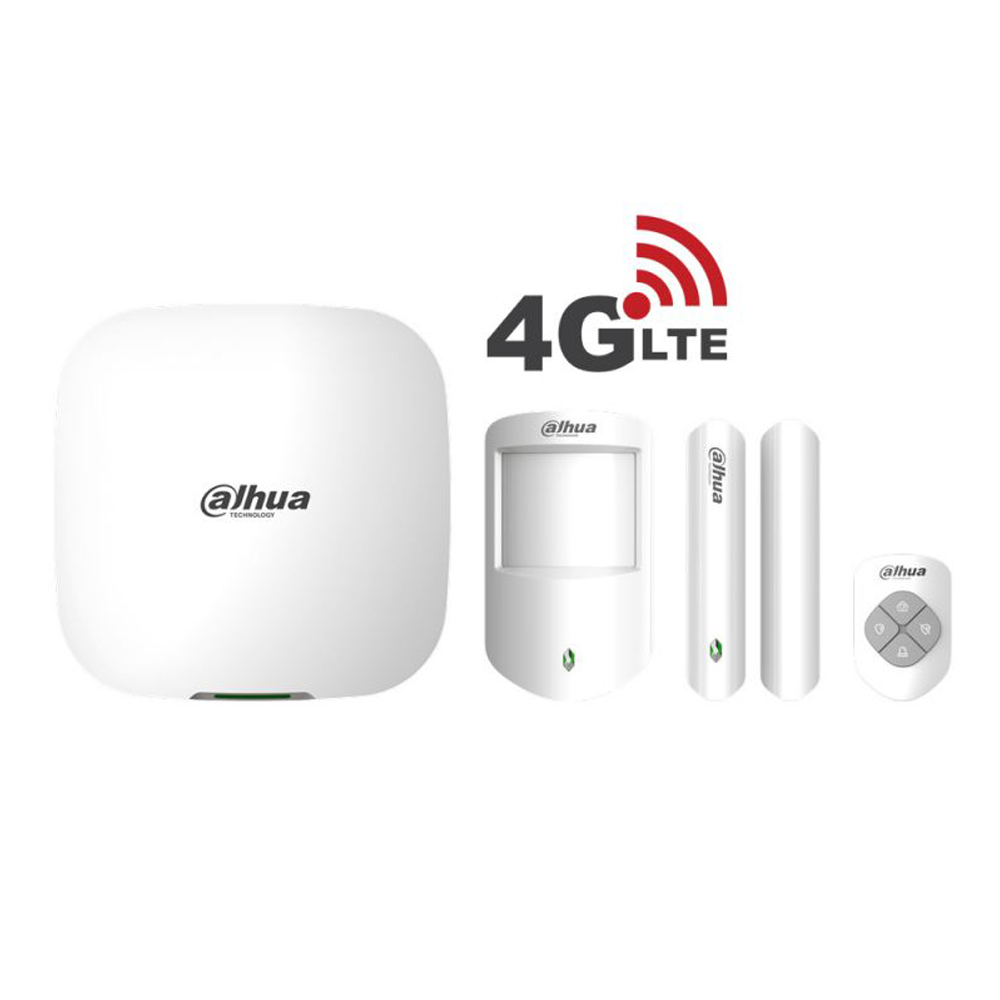

Dahua 4G LTE Wireless Airshield Alarm Kit ART-ARC3000H-03-FW2(868)

Input and Output

Wireless Protection Zone

Hub: 150-channel wireless peripherals (6 sirens, 64 wireless keyfobs)

Port

Buzzer

Hub: Built-in

Button

Hub: 1 × reset, 1 × power, 1 × AP
Keyfob: 4 (Home, Away, Disarm, and SOS)
Door Detector: 1 × power button
PIR Detector: 1 × power button

Indicator Light

Hub: 1 for multiple statuses (alarm, arming, disarming, networking, and malfunction)
Keyfob: 1 × two-color status indicator (green: normal, red: abnormal)
Door Detector: 1 × green alarm indicator
PIR Detector: 1 × green alarm indicator

Storage battery

Hub: Built-in lithium battery

Network Mode

Hub: Ethernet, Wi-Fi and Cellular network (Supports installation of dual SIM cards. Only one card can be enabled at a time)

Network Port

Hub: 1 × RJ-45 10 M/100 M Ethernet port

Function

Network Protocol

Hub: TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP

Offline Cache

Hub: Max. 50 entries (ANR)

Power Failure Protection for Configured Parameters

Hub: Yes

Remote Update

All: Cloud update

Video Linkage

Hub: Yes

SMS

Hub: Yes (up to 5 phone numbers)

Phone Call

Hub: Yes (up to 5 phone numbers)

Low Battery Alarm

All: Yes

Tamper Alarm

Hub: Yes
Door Detector: Yes
PIR Detector: Yes

User Management

Hub: Share function for App users

Search

Hub: Searching push messages, device status, and program version. Detecting signal strength.
Keyfob: Signal strength detection
Door Detector: Signal strength detection
PIR Detector: Signal strength detection

Arm and Disarm

Hub: App; keyfob; schedule

Wireless

Carrier Frequency

All: 868.0 MHz–868.6 MHz

Transmitter Power (EIRP)

All: Limit 25 mW

Communication Distance

Hub: Up to 2,000 m (6,561.68 ft) in an open space
Keyfob: Up to 900 m (2,952.76 ft) in an open space
Door Detector: Up to 1,200 m (3,937.01 ft) in an open space
PIR Detector: Up to 1,600 m (5,249.34 ft) in an open space

Communication Mechanism

All: Two-way

Encryption Mode

All: AES128

Frequency Hopping

All: Yes

Wi-Fi

Wi-Fi Standard

Hub:IEEE 802.11b/g/n

Wi-Fi Frequency Range

Hub:2400-2483.5 MHz

Wi-Fi Power Transmission

Hub:≤20 dBm@2400-2483.5 MHz

Cellular Network

Cellular Network Standard

Hub: GSM/WCDMA/LTE

Frequency Range

Hub:
4G: FDD-LTE: B1/B3/B7/B8/B20; TDD-LTE: B38/B40/B41;
3G: WCDMA: B1/B5/B8;
2G: GSM: 1,800/900 MHz

Transmitter Power (EIRP)

Hub:
4G: Power class3: 23 dBm±2 dB
3G: Power class3: 24 dBm+1/-3 dB
2G: Power class0: 30 dBm±3 dB (GSM900)
Power class5: 33 dBm±3 dB (GSM1800)

Peripherals

External Zone

Door Detector: 1-channel dry contact input

Temperature

Measuring Range (Temperature)

Door Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
PIR Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)

Measuring Precision (Temperature)

Door Detector: ± 1 °C (± 33.8 °F)
PIR Detector: ± 1 °C (± 33.8 °F)

Resolution (Temperature)

Door Detector: 1 °C (33.8 °F)
PIR Detector: 1 °C (33.8 °F)

Specification

Sensor

Door Detector: Reed switch
PIR Detector: Dual elements low-noise PIR sensor

Test Mode

Door Detector: Yes
PIR Detector: Yes

Scenario

Door Detector: Non-metal doors

Movement Distance

Door Detector: < 40 mm (1.57″)

Detection Mode

PIR Detector: PIR

Detection Range

PIR Detector: 12 m (39.37 ft) (90°) with installtion height of 2.2 m (7.21 ft)

Detection Speed

PIR Detector: 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)

Pet Immunity Level

PIR Detector: ≤ 18 kg (39.68 lb)

White Light Resistance Level

PIR Detector: 6500 lx

Two-way Digital Temperature Compensation

PIR Detector: Yes, no attenuation of detection distance in high temperature

Sensitivity

PIR Detector: 3 levels adjustable

General

Power Supply

Hub: 12 V DC, 1.5 A (Europe, UK and USA power adapters are optional)
Keyfob: CR2032 battery
Door Detector: CR123A battery
PIR Detector: CR123A battery

Battery Life

Hub: Storage battery standby for 12 Hours
Keyfob: 5 years
Door Detector: 5 years
PIR Detector: 4 years

Power Consumption

Keyfob: Max. 100 mW
Door Detector: Max. 125 mW
PIR Detector: Max. 120 mW

Operating environment

Hub: –10 °C to +50 °C (+14 °F to +122 °F) (indoor)
Keyfob: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Door Detector: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
PIR Detector: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Operating Humidity

All: 10%–90% (RH)

Product Dimensions

Hub: 163.0 mm × 163.0 mm × 32.0 mm (6.42″” × 6.42″” × 1.26″”) (L × W × H)
Keyfob: 60.0 mm × 39.5 mm × 15.0 mm (2.36″” × 1.56″” × 0.59″”) (L × W × H)
Door Detector: 100.2 mm × 20.8 mm × 20.3 mm (3.94″” × 0.82″” × 0.80″”) (L × W × H)
PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm (4.09″” × 2.36″” × 1.97″”) (L × W × H)

Packaging Dimensions

Hub: 219.0 mm × 187.0 mm × 91.0 mm (8.62″” × 7.36″” × 3.58″”) (L × W × H)
Keyfob: 135.0 mm × 98.5 mm × 27.8 mm (5.31″” × 3.88″” × 1.09″”) (L × W × H)
Door Detector: 135.0 mm × 98.5 mm × 27.8 mm (5.31″” × 3.88″” × 1.09″”) (L × W × H)
PIR Detector: 135.0 mm × 98.5 mm × 56.8 mm (5.31″” × 3.88″” × 2.24″”) (L × W × H)

Installation

Hub: Wall mount; Desktop
Door Detector: Bracket mount
PIR Detector: Wall mount

Net Weight

Hub: 0.38 Kg (0.84 lb)
Keyfob: 20 g (0.04 lb)
Door Detector: 70 g (0.15 lb)
PIR Detector: 100 g (0.22 lb)

Gross Weight

Hub: 0.8 Kg (1.76 lb)
Keyfob: 65 g (0.14 lb)
Door Detector: 115 g (0.25 lb)
PIR Detector: 170 g (0.37 lb)

Casing

All: PC + ABS

Certifications

All: CE
