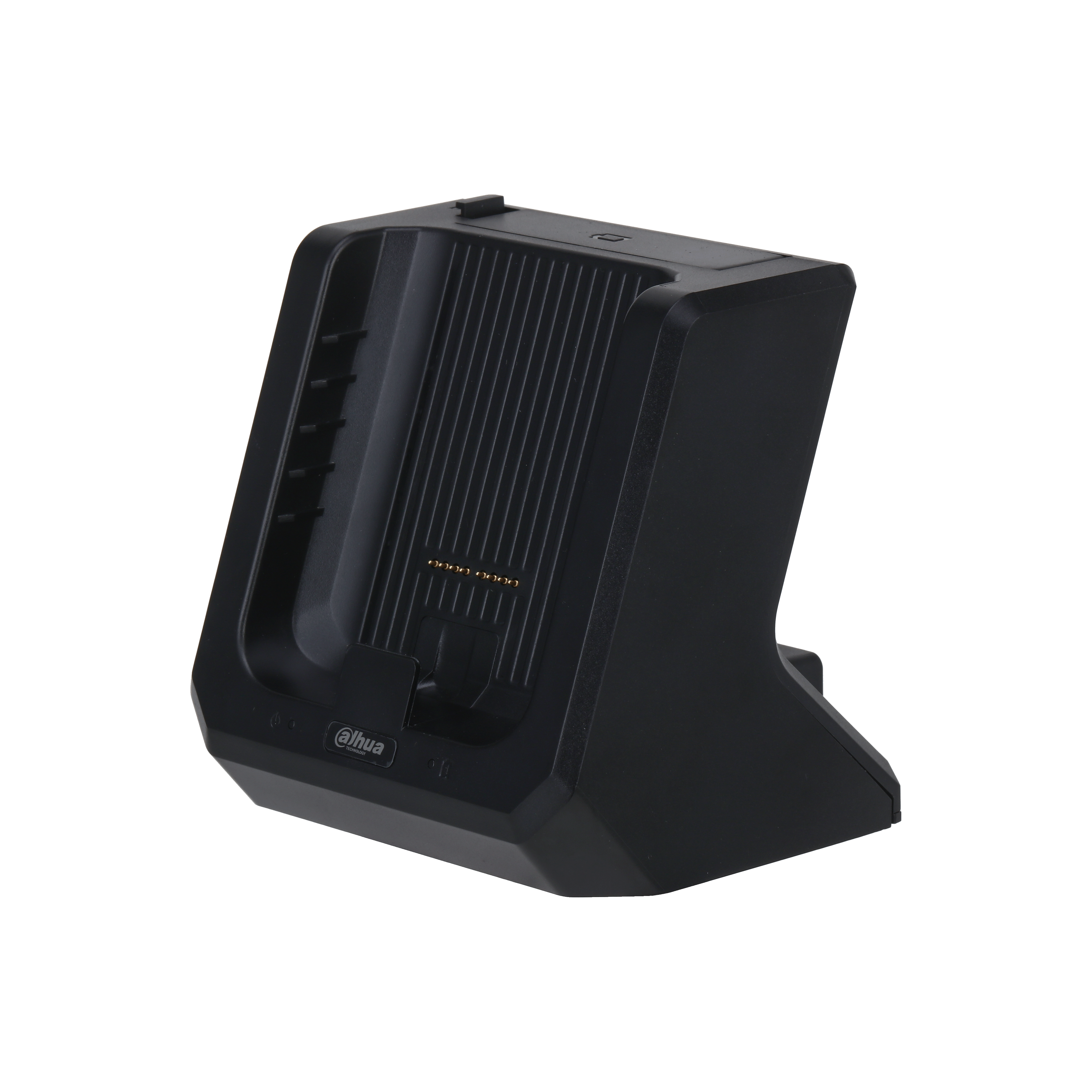

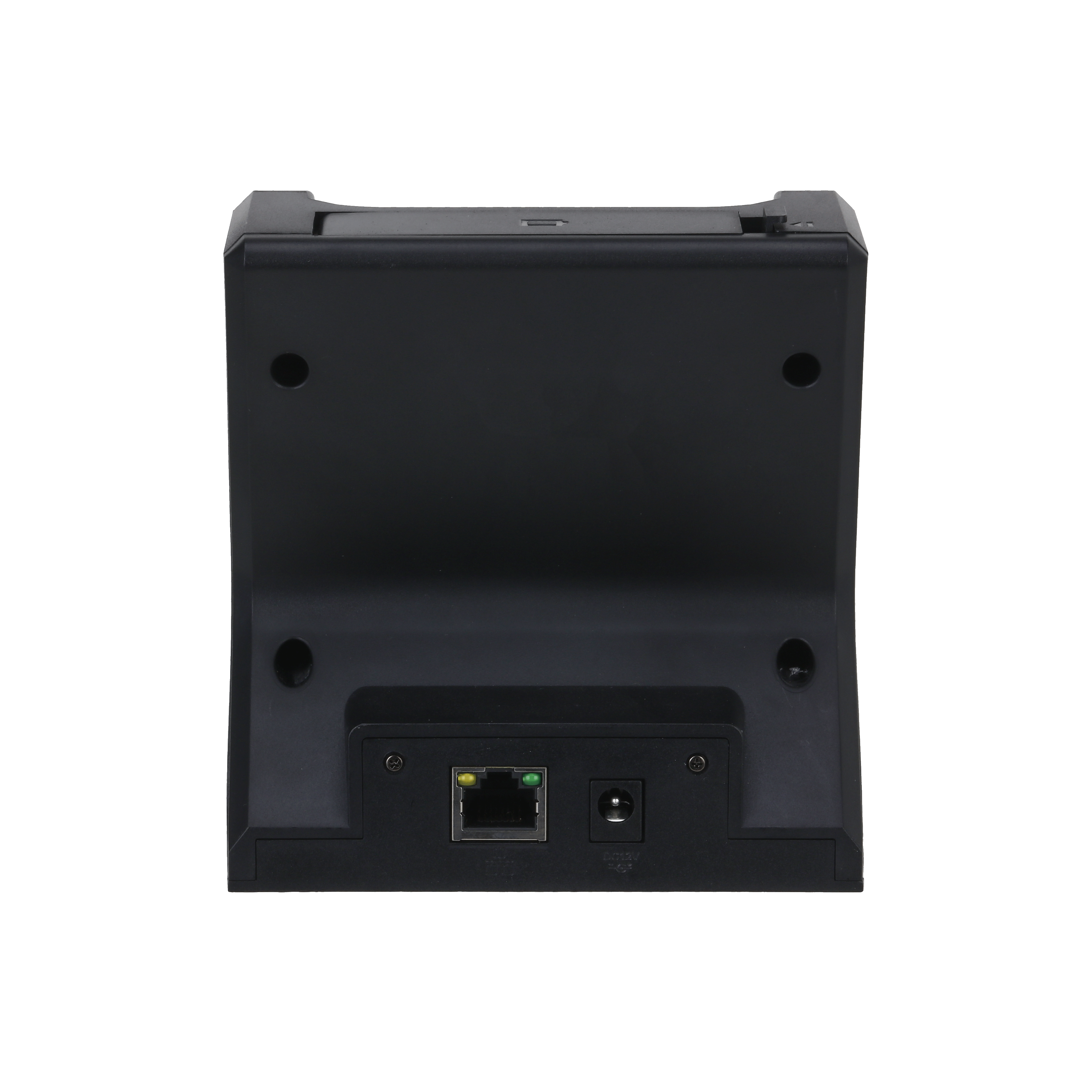

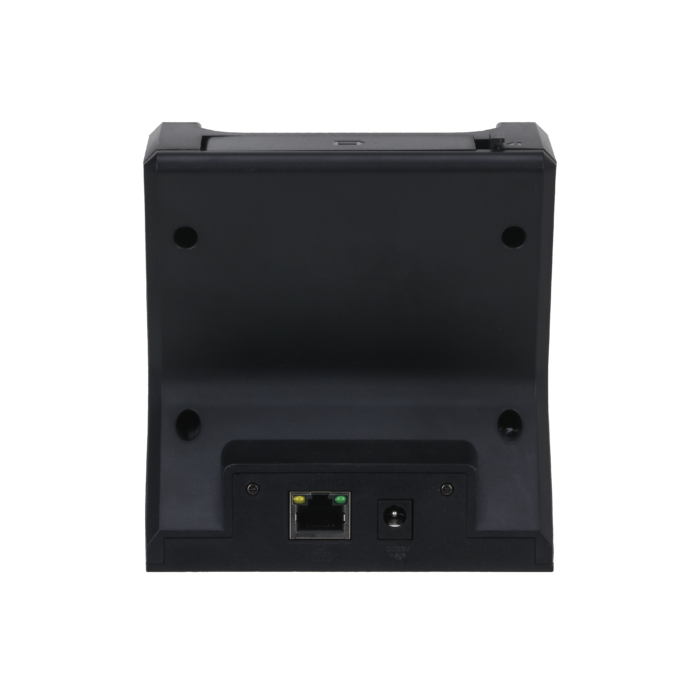

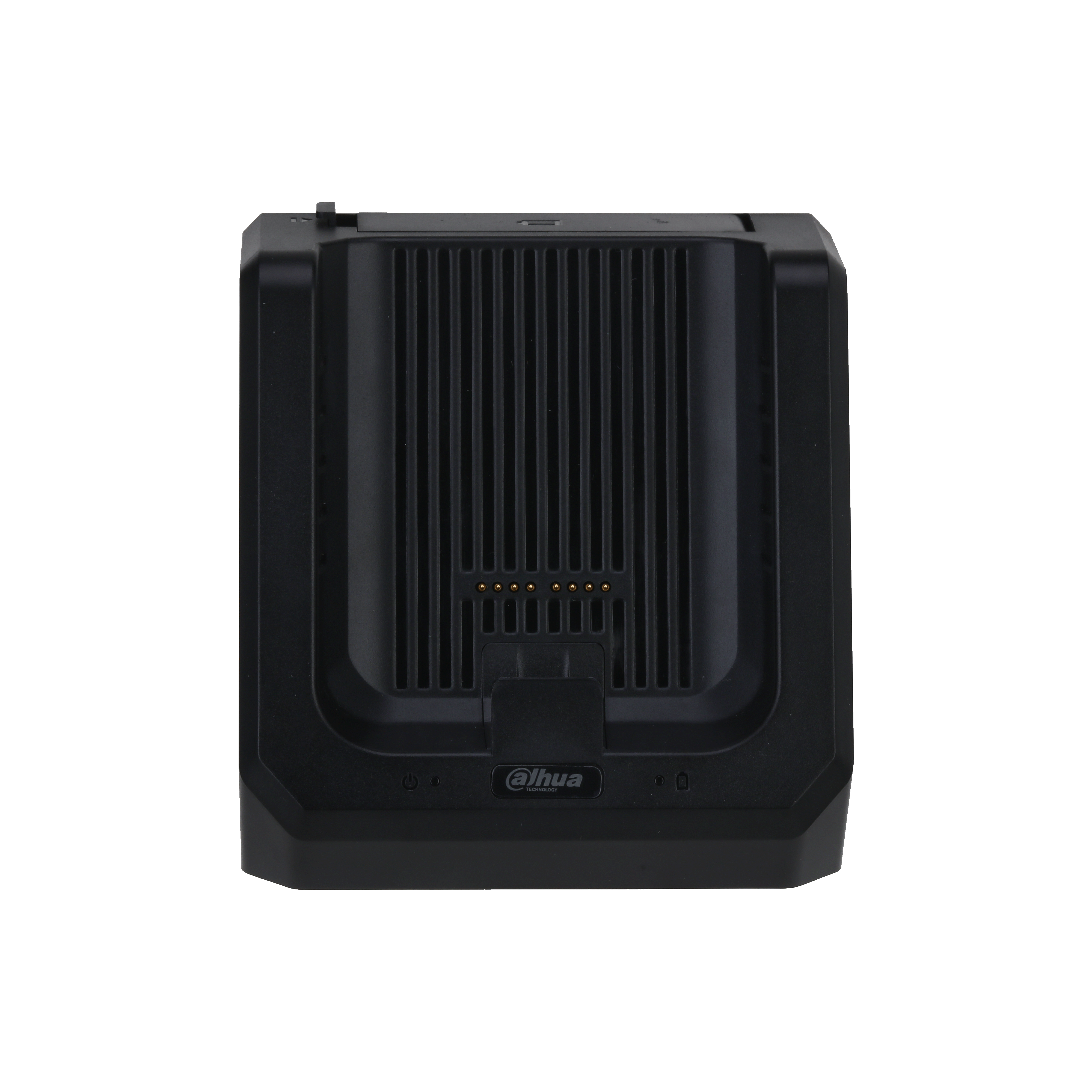

Dahua Docking Base MAE-D200

Network

1 RJ-45 (100 Mbps), PoE

Power

Power Supply

12V DC, 2A
PoE power supply

Power Consumption

24W

Charging

Mode

Charge a MPT320 device or a battery at the same time

Voltage

5V, 2A; max. charging voltage: 4.35V

Time

< 4 (max. load)

Environmental

Operating Conditions

–10°C to +55°C (–14°F to +131°F)

Storage Conditions

–22°C to +70°C (–30°F to +158°F)

Structure

Net Weight

0.418 kg (0.9 lb)

Gross Weight

0.73 kg (1.6 lb)

Product Dimensions

110 mm × 94.6 mm × 116.9 mm (4.3″ × 3.7″ × 4.6″) (L × W × H)

Package Dimensions

208 mm × 170 mm × 139 mm (8.2″ × 6.7″ × 5.5″)

(L × W × H)

	Title	Type	Size
	DH-MAE-D200_datasheet_20201221	application/pdf	294 KB
	MPT320 Accessories_Quick Start Guide_V1.0.0	application/pdf	655 KB

Brand	Dahua
