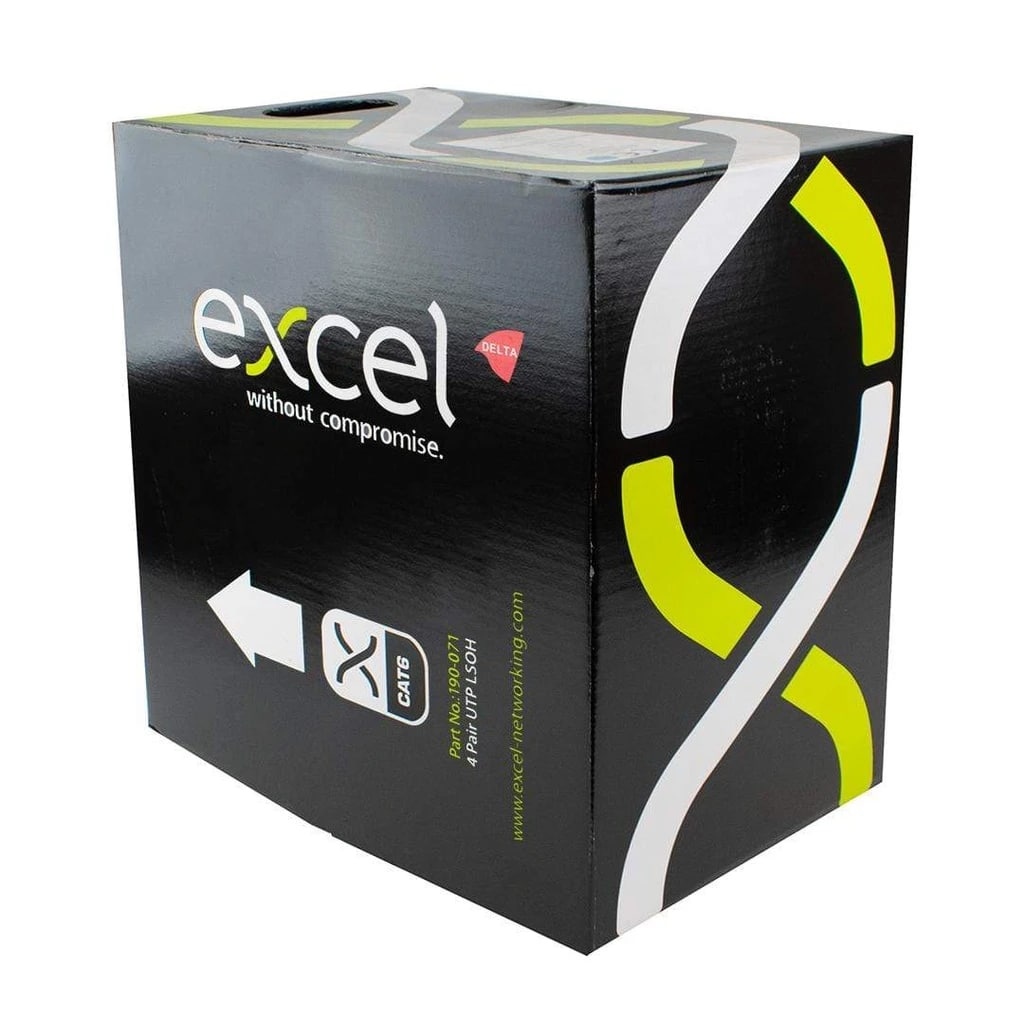

Excel CAT6 UTP Cable 23AWG B2ca LS0H 305m Box (Violet) – 190-071
Excel is a world‐class premium performing end‐to‐end infrastructure solution ‐ designed, manufactured, supported and delivered ‐ without compromise

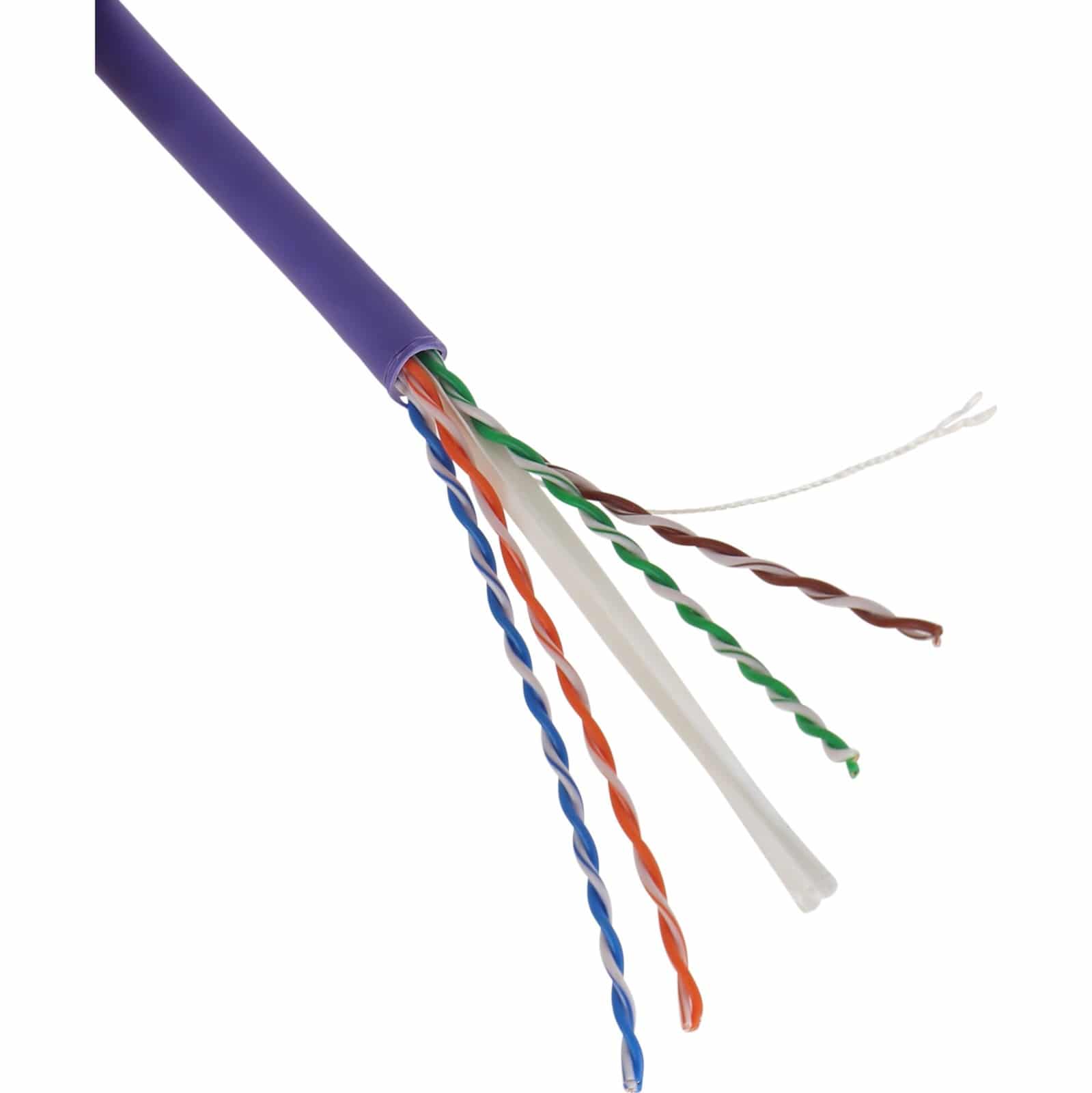

Excel Category 6 Unscreened cables are manufactured and tested to the TIA/EIA 568‐B.2‐1, EN50173‐1 and ISO/ IEC 11801 Category 6 specifications. Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are then formed around a central X-shaped polyethylene filler, which assists in maintaining and enhancing the cable performance.
Features
- EC Verified
- Fast feed box
- Sequential metre markings
- Euroclass B2ca
Specification
| Category | 6 |
| Overall screening | None |
| Conductor screening | None |
| Outer sheath colour | Violet |
| Reaction-to-fire class according to en 13501-6 | B2ca |
| Smoke development class according to en 13501-6 | s1a |
| Euro class flaming droplets/particles according to en 13501-6 | d0 |
| Euro class acidity according to en 13501-6 | a1 |
| Awg-size | 23 |
| Specification core insulation | PE |
| Core identification | Colour |
| Outer sheath material | Copolymer, thermoplastic (LS0H) |
| Diameter of conductor | 0.55 mm |
| Halogen free (acc. en 60754-1/2) | yes |
| Flame retardant | In accordance with EN 60332-1-2 and EN 50399 |
| Low smoke (acc. bs en 61034-2) | yes |
| Outer diameter approx. | 6.2 mm |
| Installation temperature range | -10…60 °C |
| Operating temperature range | -10…60 °C |
| Nvp value | 65 % |
| Conductor category | Class 1 = solid |
| Total number of cores | 8 |
| Stranding element | Pairs |
| Core insulation | Solid HDPE |
| Conductor surface | Bare |
| Title | Type | Size | |
|---|---|---|---|
|
document | application/pdf | 305 KB |
