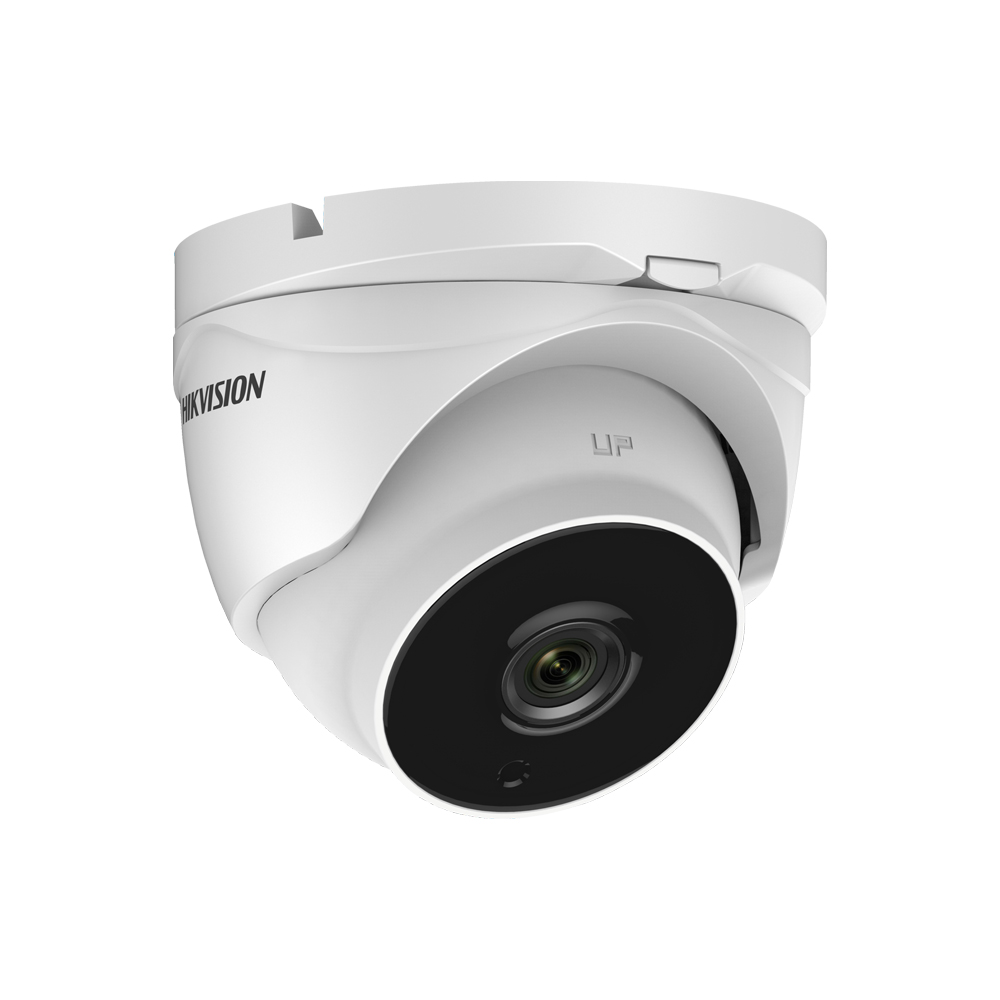

HIKVision 2MP Ultra Low-Light VF PoC EXIR Turret Camera DS-2CE56D8T-IT3ZE
Hikision Turbo HD Ultra Low-Light Motorised VF PoC EXIR Turret Camera, 2MP Progressive Scan CMOS, Colour: 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR, Motorised VF lens; 2.8 – 12 mm @ F1.2, 1920 x 1080P: 25fps, EXIR 2.0, Smart IR, up to 40m IR Range, TDN, 120 dB true WDR, OSD Menu (up the coax), IP67, 12 VDC±25%/ PoC.at, 3 year warranty
- 2 Megapixel high-performance CMOS
- Ultra-Low Light
- 1920 × 1080 resolution
- Auto focus, 2.8 mm to 12 mm motorized vari-focal lens
- 120 dB true WDR, 3D DNR
- EXIR 2.0, Smart IR , up to 40 m IR distance
- IP67
- Up the Coax(HIKVISION-C)
- PoC.at
| Camera | ||
|---|---|---|
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1920(H)*1080(V) | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120dB | |
| Video Frame Rate: | 1080p@25fps/1080p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| Up the Coax: | Support | |
| Menu | ||
| Auto White Balance: | Auto/MWB | |
| BLC: | Support | |
| AGC: | Support | |
| Language: | English/Chinese | |
| General | ||
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) | |
| Power Supply: | 12 VDC±25%/ PoC.at -A: 12 VDC±25%, 24 VDC±25%/ PoC.at | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 40m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) | |
| Dimension: | 134.3mm×123.9mm×111.4mm (5.29”×4.88”×4.39”) | |
| Weight: | Approx. 750g (1.57lb) | |
| Title | Type | Size | |
|---|---|---|---|
|
10818_D模拟相机用户手册UserManualofDS2CE56D8TIT3Z | application/pdf | 1 MB |
|
|
Datasheet_of_DS-2CE56D8T-IT3ZE_20171115 | application/pdf | 945 KB |
| Brand | Hikvision |
|---|---|
| Features | Dark Fighter, POC |
| Resolution | 2 MegaPixel |
| Technology | AHD |
