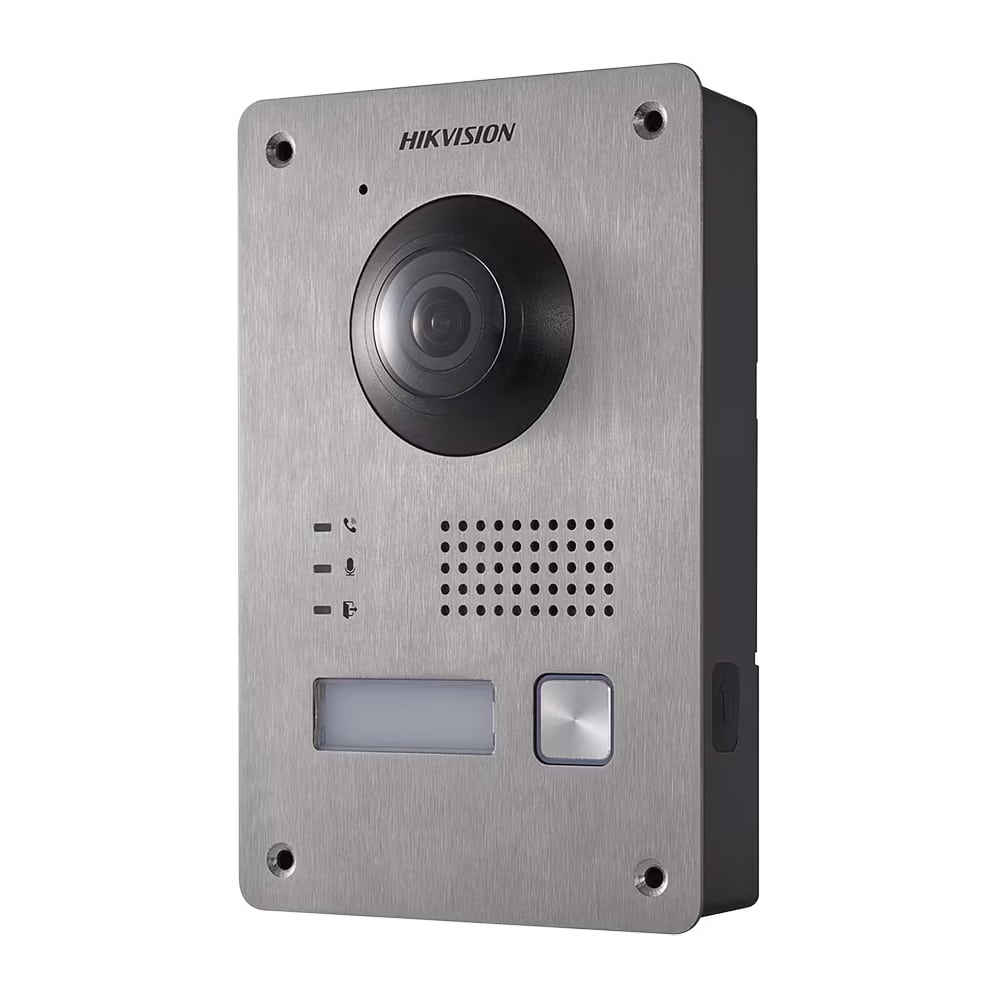

Hikvision 2-Wire Intercom Door Station DS-KV8103-IME2
Login for Price
Note: Surface Mount Box (DS-KAB8103-IMEX) & Video/Audio Distributor (DS-KAD709) are required for mounting/operation and are not included with the Door Station
- Video intercom function
- Access control function
- HD video surveillance with high performance CMOS
- Low illumination 2MP HD colorful 155° fish-eye camera
- Self-adaptive IR supplement
- Tampering alarm and door magnetic alarm supported
- Noise suppression and echo cancellation
- Remote upgrade via client and batch configuration function
- Supports surface mounting and flush mounting
Description
| System parameters | Processor | High-Performance Embedded SOC Processor |
| Operation system | Embedded Linux Operation System | |
|
Video parameters |
Camera | CMOS Low Illumination 2 MP HD Colorful 155° Fisheye Camera |
| Video compression standard | H.264 | |
| Resolution | 1920 × 1080 | |
| Video frame rate | NTST: 30 fps
PAL: 25 fps |
|
|
Audio parameters |
Audio input | Built-in Omnidirectional Microphone |
| Audio output | Built-in Loudspeaker | |
| Audio compression standard | G.711 U | |
| Audio compression rate | 64 Kbps | |
| Audio quality | Noise Suppression and Echo Cancellation | |
| Access control parameters | Exit button | Exit Button for Opening the Door |
| Door magnetic detection | Detects Door Magnetic Status | |
| Light supplement | Light supplement mode | IR Supplement |
| Network parameters | Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
| Network protocol | TCP/IP, RTSP | |
| Alarm parameters | Alarm input | Door Magnetic Alarm, Tampering Alarm |
|
Device interfaces |
Network interface | Two-Wire Interface |
| RS-485 | 1 RS-485 Half-Duplex Port | |
| I/O input | 2 | |
| I/O output | 1-ch 12 VDC Output | |
|
General |
Material | Stainless Steel |
| Power supply | 24 VDC, Power Over Network Cable (DS-KAD709) | |
| Power consumption | ≤12 W | |
| Working temperature | -30 °C to +60 °C (-22 °F to 140 °F) | |
| Working humidity | 10% to 90% | |
| IP protection level | IP 65 | |
| Dimensions (L x W x H) | 163 mm x 104 mm x 44 mm (6.42″ x 4.09″ x 1.73″) |
Documents
| Title | Type | Size | |
|---|---|---|---|
|
DS-KV8103-IME2 | application/pdf | 451 KB |
Additional information
| Brand | Hikvision |
|---|---|
| Features | 2-Way Audio |
| Resolution | 2 MegaPixel |
