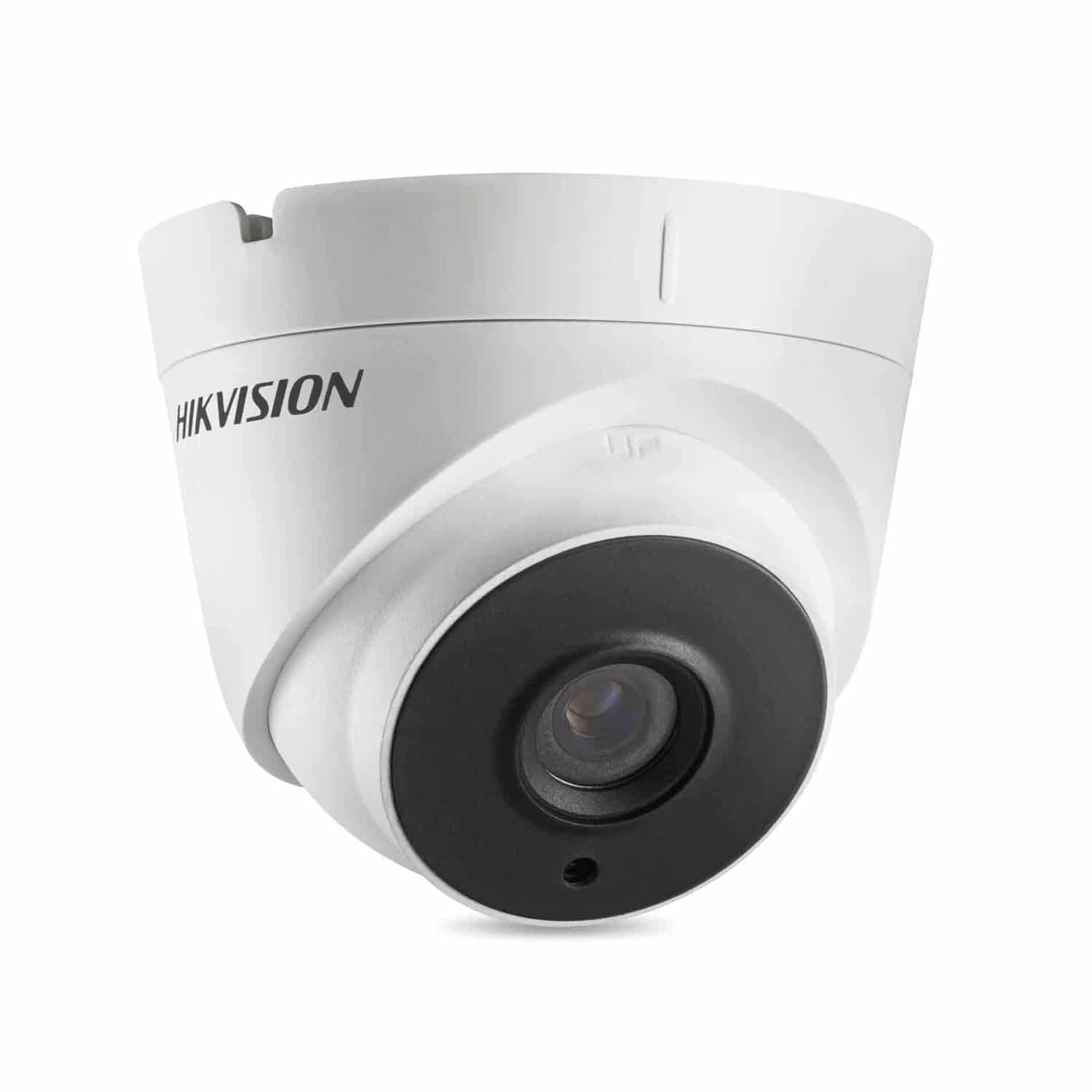

HIKVision 5MP Turret Camera DS-2CE56H0T-IT3E

Name: HIKVision 5MP Turret Camera DS-2CE56H0T-IT3E
SKU: DS-2CE56H0T-IT3E
Price: 43.20 GBP
Availability: InStock

Hikvision 5MP External Turret Camera, 3.6mm, True Day/Night, OSD menu, 2D DNR, DWDR, EXIR, up to 20/40m IR distance,12VDC, IP67, 2560 × 1944 resolution, PoC.

5 Megapixel high-performance CMOS
True Day/Night
OSD menu, 2D DNR, DWDR
EXIR technology, up to 20/40m IR distance
IP67 weatherproof
2560 × 1944 resolution
Up the Coax(HIKVISION-C)

Camera
Image Sensor:	5MP CMOS Image Sensor
Effective Pixels:	2560 (H) × 1944 (V)
Shutter Time:	1/25(1/30) s to 1/50,000 s
Lens Mount:	M12
Adjustment Range:	Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Day& Night:	IR cut filter with auto switch
Video Frame Rate:	PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps; NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
HD Video Output:	1 Analog HD output
Synchronization:	Internal Synchronization
Menu
D/N Mode:	Auto / Color / B/W
Auto White Balance:	Auto/MWB
BLC:	Support
AGC:	Support
Language:	English
General
Operating Conditions:	-40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing)
Power Supply:	12 VDC±25%/PoC.af
Weather Proof:	IP67
IR Range:	Up to 20m
Communication :	Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:	Φ 110 mm × 93.2 mm (Φ 4.33″ × 3.67″)
Weight:	Approx. 340 g (0.75 lb.)

Title	Type	Size
Datasheet_of_DS-2CE56H0T-IT3E_20180326	application/pdf	994 KB
UD09483B_Baseline_H0T_PoC_FF_Series_Turret___Dome_Camera_User_Manual_V1.0.0_20180321	application/pdf	2 MB
Datasheet_of_DS-2CE56H0T-IT1E_20180326	application/pdf	997 KB

Brand	Hikvision
Technology	AHD
Resolution	5 MegaPixel
Features	POC
