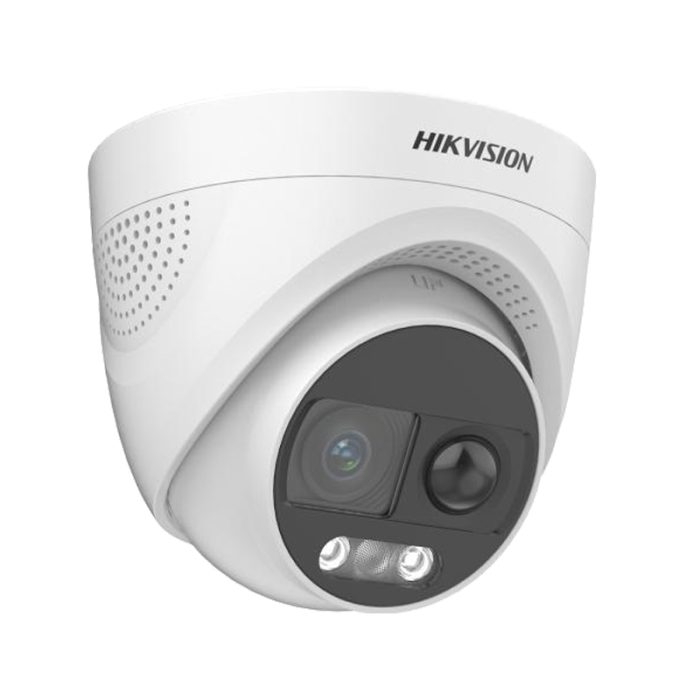

Hikvision 8MP ColorVu PIR Siren Turret Camera DS-2CE72UF3T-PIRXO
- High quality imaging with 8 MP, 3840 × 2160 resolution
- 24/7 color imaging
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm fixed focal lens
- Up to 20 m White Light distance for bright night imaging
- Detects human body through heat-sensitive passive infrared (PIR)
- Active strobe light and audio alarm to warn intruders off
- Water and dust resistant (IP67)
- High quality audio with built-in speaker
| Camera | |
| Image Sensor | 8 MP CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Min. Illumination | 0.0005 Lux @ (F1.0,AGC ON),0 Lux with white light |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s |
| Day ＆ Night | 24/7 Color Imaging |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm fixed focal lens |
| Focal Length ＆ FOV | 2.8 mm, horizontal FOV: 108°, vertical FOV: 57°, diagonal FOV: 127°
3.6 mm, horizontal FOV: 91°, vertical FOV: 45°, diagonal FOV: 110° |
| Lens Mount | M16 |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 20 m |
| Smart Supplement Light | Yes |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Image Settings | Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Smart Light,
Anti-Banding, AGC |
| Frame Rate | 8 MP@12.5 fps/15 fps, 5 MP@20 fps, 1080P@25 fps/30 fps |
| Day/Night Mode | Color |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | WDR, BLC, HLC, Global, HLS |
| Privacy Mask | 4 programmable privacy masks |
| Noise Reduction | 3D DNR/2D DNR |
| White Balance | Auto/Manual |
| White Light | Auto/Off |
| Supplement Detection(PIR) | |
| PIR Range | 11 m |
| PIR Angle | 110° |
| Interface | |
| Video Output | 1 HD analog output |
| Alarm | 1 line out
flashing light alarm (white) |
| Event | |
| Motion Detection | 4 programmable motion areas |
| General | |
| Power | 12 VDC ± 25%, max. 6.4 W
*You are recommended to use one power adapter to supply the power for one camera. |
| Material | Enclosure: Plastic, Main body: Metal |
| Dimension | Ø 109.82 mm × 91.6 mm (Ø 4.32″ × 3.6″) |
| Weight | Approx. 416 g (0.92 lb.) |
| Operating Condition | -40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Language | English |
| Approval | |
| Protection | IP67 |
| Title | Type | Size | |
|---|---|---|---|
|
DS-2CE72UF3T-PIRXO | application/pdf | 1 MB |
| Brand | Hikvision |
|---|---|
| Features | Active Deterrence, Dome Camera |
| Resolution | 8 MegaPixel |
| Technology | TVI |
