SPRO 8MP/4K 8CH 5-in-1 HD CCTV DVR Recorder with AI DHDVR12-B6-V2
Original price was: £223.44.£197.99Current price is: £197.99. inc VAT
The new 4K B6 8ch DVR incorporates support for AI assisted smart motion detection events. The 5-in 1 DVR natively supports CVI cameras but also works with TVI, AHD, CVBS & IP cameras
Description
KEY FEATURES
- 12 channel recording (8 channel BNC + 4 channel 8MP IP)
- Supports H.264/H.264+/H265/H265+ video compression
- 5 IN 1 (CVI/TVI/AHD/ANALOGUE/IP) – Supports up to 8MP on extra IP channels
- Supports IP Audio over CAT5/6 on extra IP channels (compatible SPRO/ONVIF cameras required)
- Supports Analogue Audio over Coax (SPRO compatible cameras required)
- P2P mobile phone setup (no port forwarding or complicated setup)
- Easy P2P for remote mobile viewing (no complicated port forwarding required)
- Encodes 4K(7fps), 6MP(10fps), 5MP(12fps), 4MP/3MP(15fps), 4M-N/1080P/720P/960H/D1/CIF/QCIF (25fps)
- ONVIF 16.12, CGI Conformant
- SMD PLUS (smart motion detection plus) & perimeter protection
- Intrusion & tripwire (human & vehicle classification)
- Face detection 2.0
- PTZ control over 1 co-ax cable (mouse control on DVR – area zoom & scroll zoom)
SPECIFICATIONS
| Model Number | DHDVR12-B6-V2 |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| Operating Interface | Web; Local GUI |
| Perimeter Protection | |
| Performance | Advanced Model: 2 channels, 10 IVS for each channel General
Model: 8 channels, 10 IVS for each channel |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance AI by Recorder |
2 channels (up to 12 face images/s) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases and 20, 000 images |
| Face Recognition Performance AI by Recorder |
2 channel |
| SMD Plus | |
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and motor vehicle,
reducing false alarms caused by leaves, rain and lighting condition change |
| Audio and Video | |
| Analogue Camera Input | 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@20 fps; 5 MP@25 fps;
4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps. 2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps |
| IP Camera Input | Up to 16 channels of IPC access
8 IP channels by default + 8 channels (analogue channels are converted to IP channels)incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled. |
| Encoding Capacity | Main stream: 4K@(1fps-7fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps);
4K-N, 4 MP, 3 MP@(1fps-15fps); 4M-N, 1080p, 720p, 960H, D1,CIF@(1fps–25/30fps); Sub stream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32kbps-6144kbps |
| Audio Sampling | 8kHz, 16 bit |
| Audio Bit Rate | 64kbps |
| Video Output | 1 HDMI, 1 VGA VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 21.06 |
| Browser | Chrome, IE9 or later, Firefox |
| Network Mode | Single-address mode |
| Recording Playback | |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Record Playback | 1/4/9 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Alarm | |
| General Alarm | Motion detection, video loss, tampering |
| Anomaly Alarm | No disk, disk error, low space, offline, IP conflict, MAC conflict |
| Intelligent Alarm | Face detection, face recognition, perimeter protection |
| Alarm Linkage | Record, snapshot (panoramic), IPC external alarm output,
access controller, voice prompt, buzzer, log, preset, email |

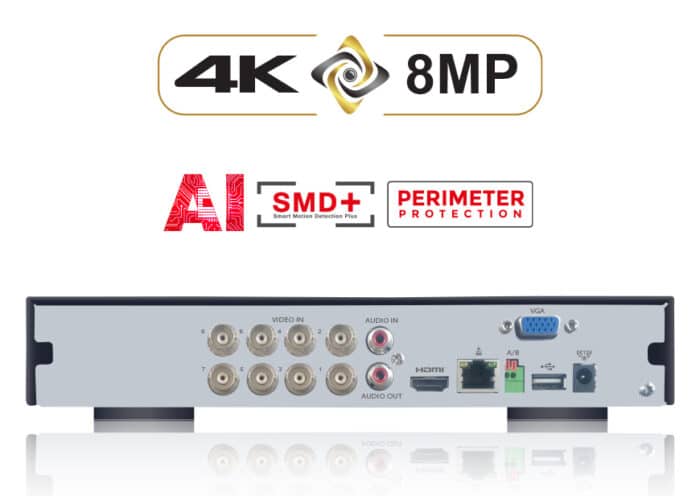

| Ports | |
| TV Output | 1-channel RCA
8-channel BNC (Coaxial Audio) |
| Audio Input | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 1 SATA port, up to 16TB capacity for each disk. The maximum HDD
capacity varies with environment temperature. |
| RS-485 | 1 port, for PTZ control |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | <10 W (without HDD) |
| Net Weight | 1.00 kg (2.21 lb) |
| Gross Weight | 1.40 kg (3.09 lb) |
| Product Dimensions | 260.0 mm × 237.9 mm × 47.6 mm (10.24” × 9.37” × 1.87”) (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 0%–90% (RH) |
| Installation | Desktop |
| Certification | |
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2,
EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
Documents
| Title | Type | Size | |
|---|---|---|---|
|
DHDVR12-B3 | application/pdf | 793 KB |
Additional information
| Brand | SPRO |
|---|---|
| Channels | 8 Channel |
| Resolution | 8 MegaPixel |
| Technology | 5-in-1 |
