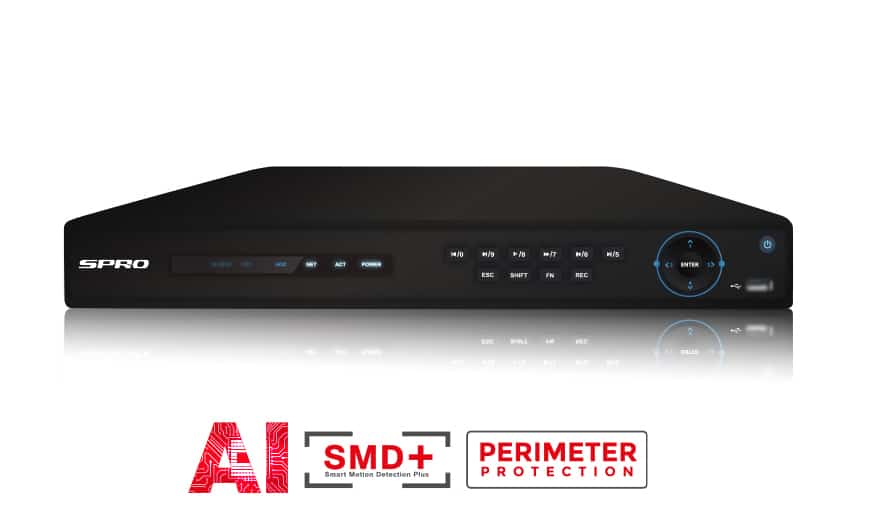

SPRO 5MP Lite 32CH 5-in-1 HD CCTV DVR with AI DHDVR32-B5-V2
Original price was: £519.12.£475.00Current price is: £475.00. inc VAT
Description
- 5 IN 1 ( CVI / TVI / AHD / ANALOGUE / IP )
- P2P no port forwarding required
- SMD PLUS (smart motion detection plus)
- Perimeter protection
- Intrusion & tripwire (human & vehicle classification)
- Face detection 2.0
- Supports IP Audio over CAT5e (compatible cameras required)

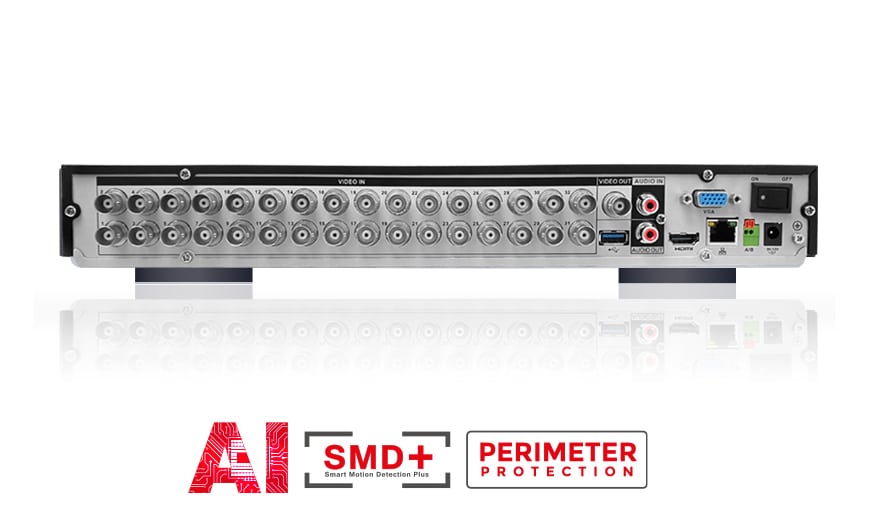

- 1 x HDMI, 1 x VGA & 1 x BNC video output
SPECIFICATIONS
| Model Number | DHDVR32-B5-V2 |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| Perimeter Protection | 2 channels, 10 IVS for each channel |
| AI by Recorder | |
| Perimeter Performance AI by Recorder (Number of Channels) | Advanced Model: 2 channels, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel |
| Face Detection | |
| Face Attributes | Gender, age groups, glasses, expressions, face mask, beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face picture |
| Face Recognition Performance of AI by Recorder | 2 channels |
| SMD Plus | |
| SMD Plus by Recorder | 16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change |
| Audio and Video | |
| Analog Camera Input | 32 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 5MP, 4 MP, 1080P@25/30 fps; 720P@50/60 fps; 720P@25/30 fps. 2. TVI: 5MP, 4MP, 3MP, 1080P@25/30 fps; 720P @25/30 fps. 3. AHD: 5MP, 4MP, 3MP, 1080P@25/30 fps, 720P @25/30 fps |
| IP Camera Input | Up to 32 channels of IPC access 32 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps |
| Encoding Capacity | Main stream: All channels 5M-N@(1fps–10fps); 4M-N/1080P@(1fps–15fps); 1080N; 720P; 960H; D1; CIF@(1fps–25/30fps) Sub stream: D1/CIF@(1fps–25/30fps) |
| Dual-stream | Yes |
| Video Frame Rate | PAL: 1 fps–25 fps. NTSC: 1 fps–30 fps |
| Video Bit Rate | 32 kbps–6144 kbps per channel |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 HDMI, 1 VGA, 1 TV HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Multi-screen Display | 1/4/8/9/16/25/36 |
| Third-party Camera Access | Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung |
| Compression Standard | |
| Video Compression | AI Coding; H.265+; H.265; H.264+;H.264 |
| Audio Compression | G.711A; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Mobile Phone Access | iPhone, iPad, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Browser | Chrome, IE9 or later, Firefox |
| Network Mode | Single-address mode |
| Recording Playback | |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Recording Playback | 1/4/9/16 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection, video loss, tampering |
| Anomaly Alarm | No disk, storage error, low space, offline, IP conflict, MAC conflict |
| Intelligent Alarm | Face detection, face recognition, perimeter protection |
| Alarm Linkage | Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |
| Ports | |
| TV Output | 1 channel |
| Audio Input | 1-channel RCA (external) 32-channel BNC (coaxial audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 2 SATA ports, up to 16 TB, the maximum HDD capacity varies with environment temperature |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 5 A |
| Power Consumption | Lower than 17W (without HDD) |
| Dimensions | 375mm × 287mm × 53mm |
| Net Weight | 1.98KG (without HDD) |
| Gross Weight | 3.15KG (without HDD) |
| Working Environment | -10°C ~+55°C / 10%~90%RH |
| Storage Conditions | -20°C ~+70°C / 10%~90%RH |
| Certifications | |
| Certifications | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
Documents
| Title | Type | Size | |
|---|---|---|---|
|
DHDVR32-B5 | application/pdf | 3 MB |
Additional information
| Brand | SPRO |
|---|---|
| Channels | 32 Channel |
| Resolution | 5 MegaPixel |
| Technology | 5-in-1 |
