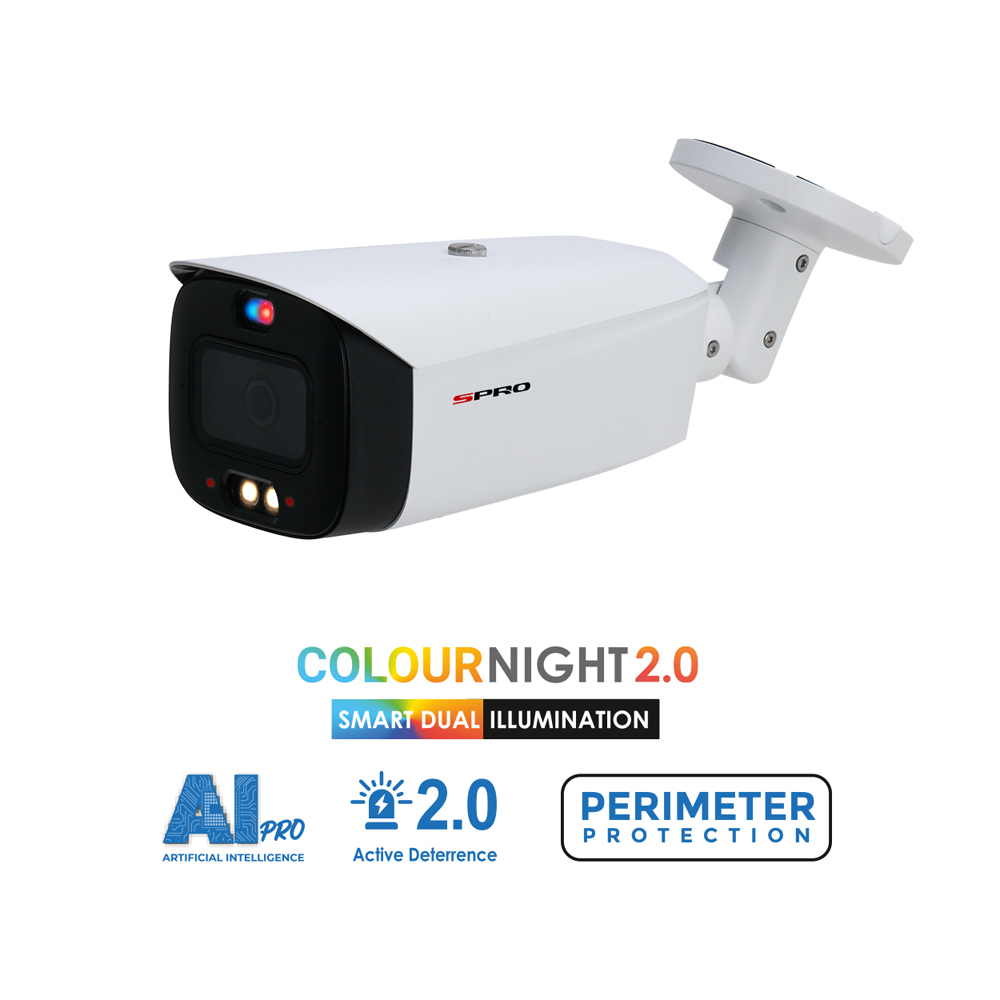

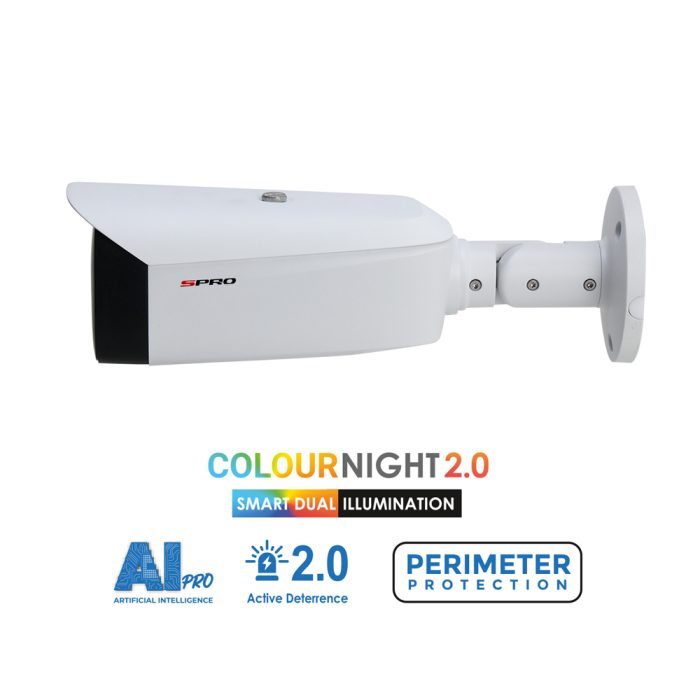

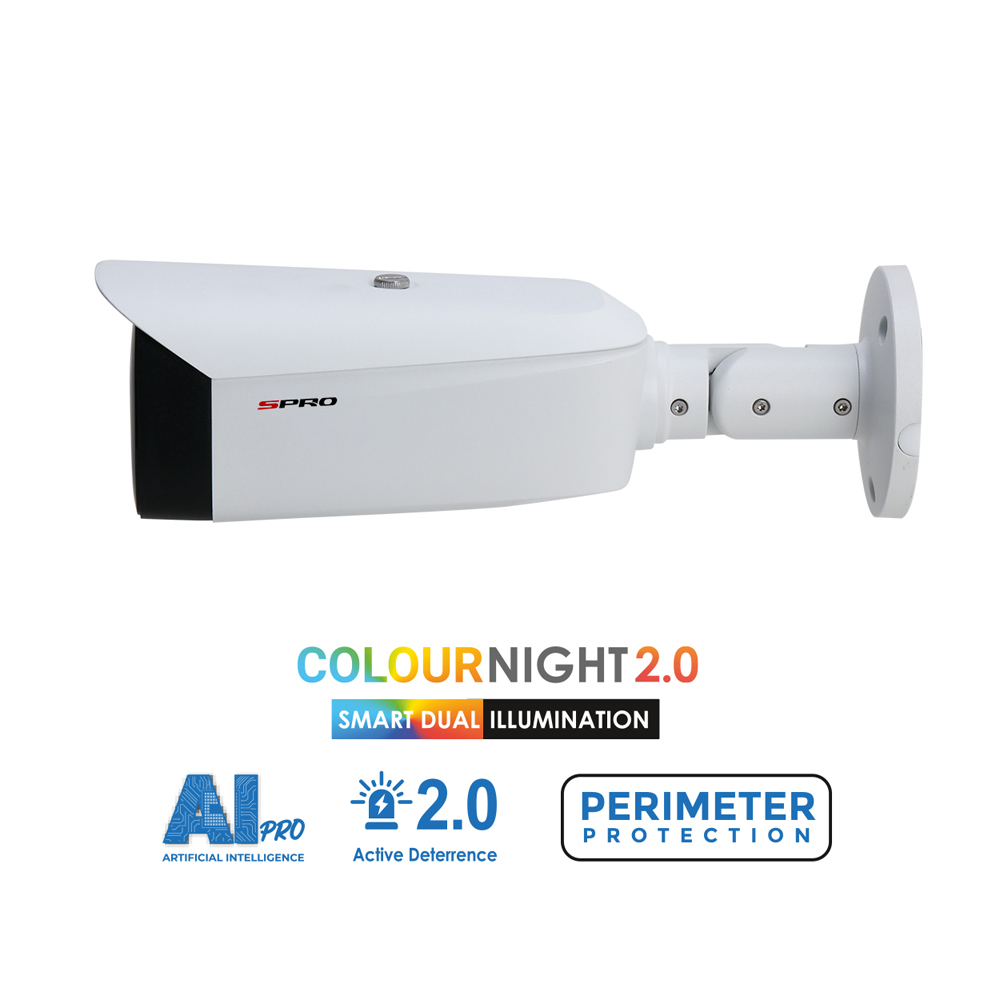

SPRO 8MP TiOC 2.0 Colour Night Active Deterrence Bullet Network Camera DHIPQ80/28LRW/30-D-V2
Original price was: £250.00.£224.99Current price is: £224.99. inc VAT
SPRO 2nd Gen Active Deterrence Cameras – Proactive Security with Smart Detection
The SPRO second-generation Active Deterrence cameras are built to actively prevent crime before it happens by deterring potential intruders.
These advanced cameras feature flashing red and blue strobe lights, a built-in speaker for two-way audio, and pre-recorded warning sounds. Alerts can be triggered by smart motion detection using human or vehicle-based perimeter protection and tripwire events.
Equipped with Colour Night 2.0 technology, these cameras can provide full-colour night vision using a white LED light. For users who prefer traditional night monitoring, the second-generation models also support infrared (IR) illumination for black-and-white night vision or motion-activated white light.
- 8 megapixel @ 25 FPS, 1/2.8 inch CMOS
- H.265 encoding
- 2.8mm fixed Lens
- Up to 30m LED distance (smart LED)
- Up to 30m IR distance
- SMD PLUS (Smart motion detection)
- Intrusion (human & vehicle classification)
- Tripwire (human & vehicle classification)
- Two-way-audio
- Deterrent strobe light & siren
- Alarm: 1 in 1 out
- Microphone & speaker built-in (2 way audio)
- 120dB WDR
- IP67 waterproof
- DC 12V/POE
| Model Number | DHIPQ80/28LRW/30-D-V2 |
| Camera | |
| Image Sensor | 1 / 2.8 inch CMOS |
| Max. Resolution | 3840 (H) x 2160 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual / 1/3 s-1/100,000 s |
| S/N Ratio | > 56 dB |
| Min. Illumination | 0.004 lux@F1.0 (Colour, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on) |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 2 (IR LED) 2 (warm light) |
| Pan / Tilt / Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed Focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Field of View | H: 106°; V: 55°; D: 125° |
| Iris Type | Fixed |
| Close Focus Distance | 2.0 m (6.56 ft) |
| DORI | Detect: 91.0 m (298.56 ft) Observe: 36.4 m ( 119.42 ft) Recognise: 18.2 m (59.71 ft) Identify: 9.1 m (29.86 ft) |
| Intelligence | |
| IVS (Perimeter Protection | Tripwire; intrusion (support the classification and accurate detection of vehicle and human) |
| SMD | Less false alarm, longer detection distance |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream:1920 × 1080@(1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Stream Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32kbps–8192 kbps; H.265: 12kbps–8192 kbps |
| Day/Night | Auto (ICR)/Colour/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart IR | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| Audio | |
| Built-in Mic | Yes, built-in dual Mic |
| Built-in speaker | Yes. built-in speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
| Network | |
| Network | Metal throughout the whole casing |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S;Profile G;Profile T); CGI |
| User / Host | 20 (Total bandwidth: 72 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE8/9/11; Chrome; Firefox |
| Management Software | DMSS |
| Mobile Phone | iOS; Android |
| Certification | |
| Certification | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14; |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V-5 VDC |
| Alarm Output | 1 channel out: 300mA 12 VDC |
| Power | |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | Basic: 4.5 W (12 VDC); 5.5 W (PoE) Max. (pulling stream+warning light+speaker+warm light on): 7.6 W (12 VDC); 9.1 W (PoE) |
| Environment | |
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH |
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal + Plastic |
| Dimensions | 288.4 mm × 94.4 mm × 84.7 mm (11.35″ × 3.72″ × 3.33″) (L × W × H) |
| Net Weight | 1.0 kg (2.20 lb) |
| Gross Weight | 1.23 kg (2.71 lb) |
| Title | Type | Size | |
|---|---|---|---|
|
DHIPQ50-28LW-40-M-I-D | application/pdf | 3 MB |
| Brand | SPRO |
|---|---|
| Features | 2-Way Audio, 24/7 Colour, Active Deterrence, Microphone Built-In |
| Resolution | 5 MegaPixel |
| Technology | IP |
