IPC3612LE-ADF28KC-WL | IPC3612LE-ADF40KC-WL | |||||||||
Camera | ||||||||||
Sensor | 1/2.8″, 2.0 megapixel, progressive scan, CMOS | |||||||||
Minimum Illumination | Colour: 0.003 lux ( F1.6, AGC ON) 0Lux with IR |
|||||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |||||||
S/N | >52dB | |||||||||
WDR | 120dB | |||||||||
Lens | ||||||||||
Lens Type | 2.8mm@F1.6 | 4.0mm @F1.6 | ||||||||
Iris | Fixed | |||||||||
Field of View (H) | 106.7° | 87.5° | ||||||||
Field of View (V) | 57.1° | 46.3° | ||||||||
Field of View (D) | 115.7° | 92.4° | ||||||||
DORI | ||||||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||||
2.8 | 43.4 | 17.4 | 8.7 | 4.3 | ||||||
4.0 | 62.1 | 24.8 | 12.4 | 6.2 | ||||||
Illuminator | ||||||||||
IR Range | Up to 30m (98ft) IR range | |||||||||
Wavelength | 850nm | |||||||||
IR On/Off Control | Auto/Manual | |||||||||
Video | ||||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||||
Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||||||||
Video Bit Rate | 128 Kbps~6 Mbps | |||||||||
U-code | Support | |||||||||
OSD | Up to 4 OSDs | |||||||||
Privacy Mask | Up to 4 areas | |||||||||
ROI | Up to 8 areas | |||||||||
Video stream | Dual streams | |||||||||
Image | ||||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||||
Digital noise reduction | 2D/3D DNR | |||||||||
Smart IR | Supported | |||||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||||
Dewarping | N/A | |||||||||
HLC | Supported | |||||||||
BLC | Supported | |||||||||
Defog | Digital Defog | |||||||||
Events | ||||||||||
Basic Detection | Cross line, intrusion(based on human body detection),motion detection, tampering alarm, audio detection | |||||||||
General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | |||||||||
Audio | ||||||||||
Audio Compression | G.711U, G.711A | |||||||||
Audio Bitrate | 64 Kbps | |||||||||
Two-way Audio | Support | |||||||||
Suppression | Support | |||||||||
Sampling Rate | 8KHZ | |||||||||
Storage | ||||||||||
Edge Storage | Micro SD, up to 128 GB | |||||||||
Network Storage | ANR,NAS(NFS) | |||||||||
Network | ||||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP | |||||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||||||
Client | EZStation EZView EZLive |
|||||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||||||
Interface | ||||||||||
Audio I/O | N/A | |||||||||
Alarm I/O | N/A | |||||||||
RS485 | N/A | |||||||||
Built-in Mic | Support | |||||||||
Built-in Speaker | Support | |||||||||
WIFI | N/A | |||||||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||||||
Video Output | N/A | |||||||||
Certification | ||||||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||||
General | ||||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||||
Power consumption: Max 8.0W | ||||||||||
Power Interface | Ø 5.5mm coaxial power plug | |||||||||
Dimensions (Ø x H) | Φ118 x 95mm (Φ4.6” x 3.8”) | |||||||||
Weight | 0.30kg (0.66lb) | |||||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
Surge Protection | 4KV | |||||||||
Reset Button | N/A |

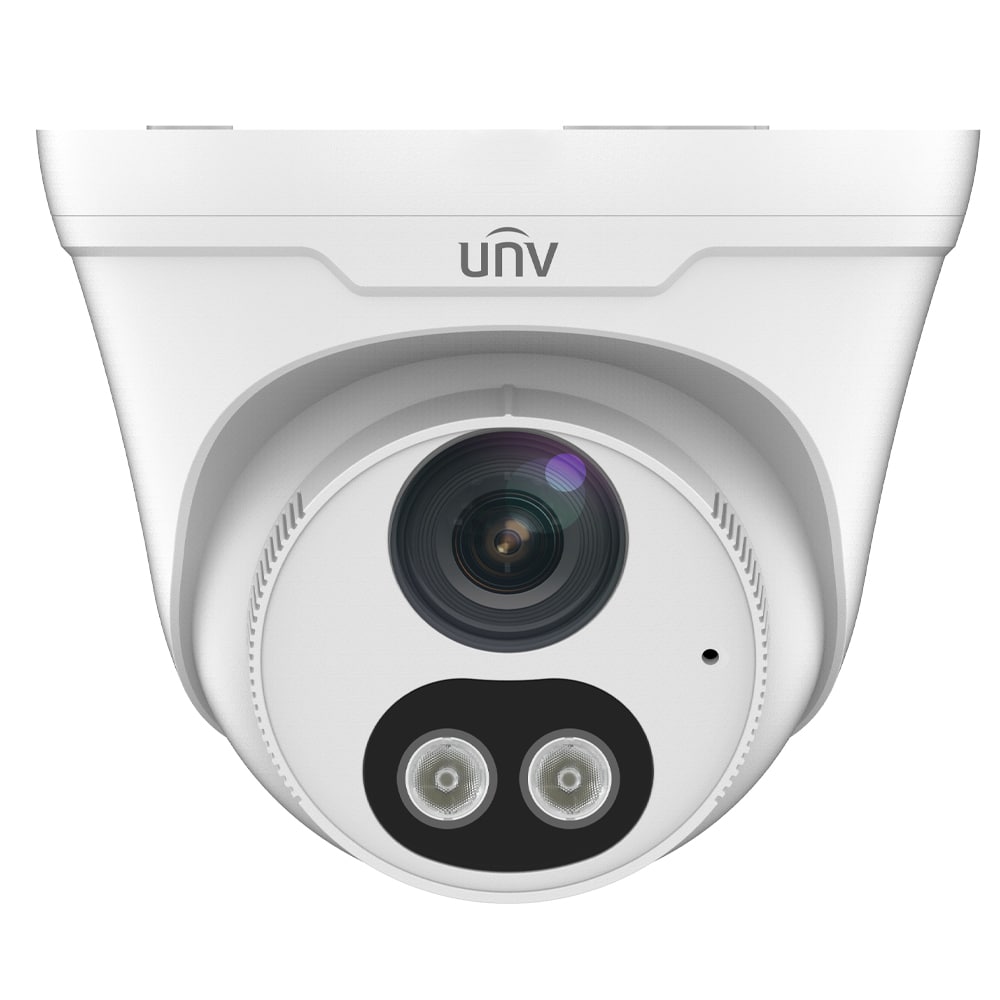

Uniview 2MP ColorHunter Turret Network Camera with 2-Way Audio IPC3612LE-ADF28KC-WL
- 2.8mm fixed lens
- High quality image with 2MP, 1/2.8″CMOS sensor
- 2MP (1920*1080) @30/25fps; 720P (1280*720) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic & Speaker
- Smart IR, up to 30m (98ft) IR distance
- White Light, up to 30m (98ft) white light distance
- Supports 128 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
Title | Type | Size | |
---|---|---|---|
IPC3612LE-ADF28(40)KC-WL Datasheet V1.1-EN | application/pdf | 464 KB |
Brand | UNV |
---|---|
Resolution | 2 MegaPixel |
Technology | IP |
Features | 2-Way Audio, ColorHunter, Microphone Built-In, Turret Camera |
