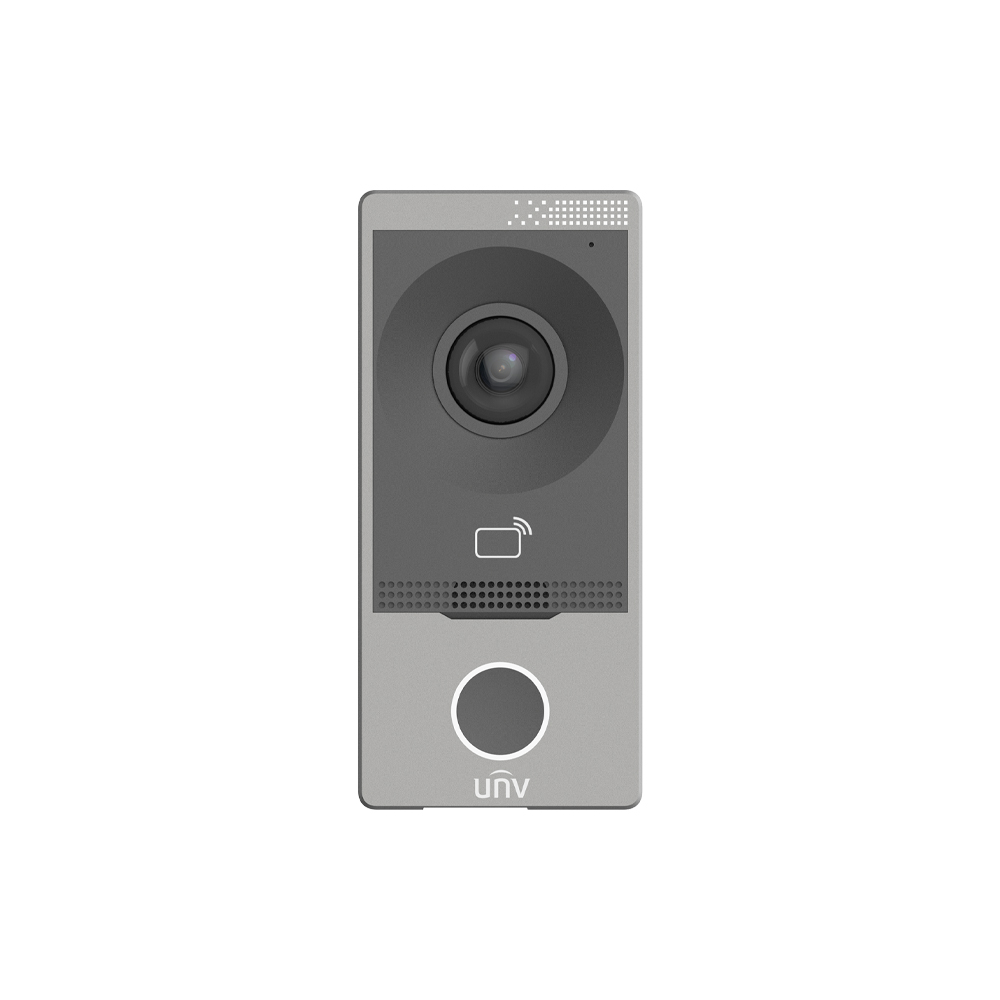

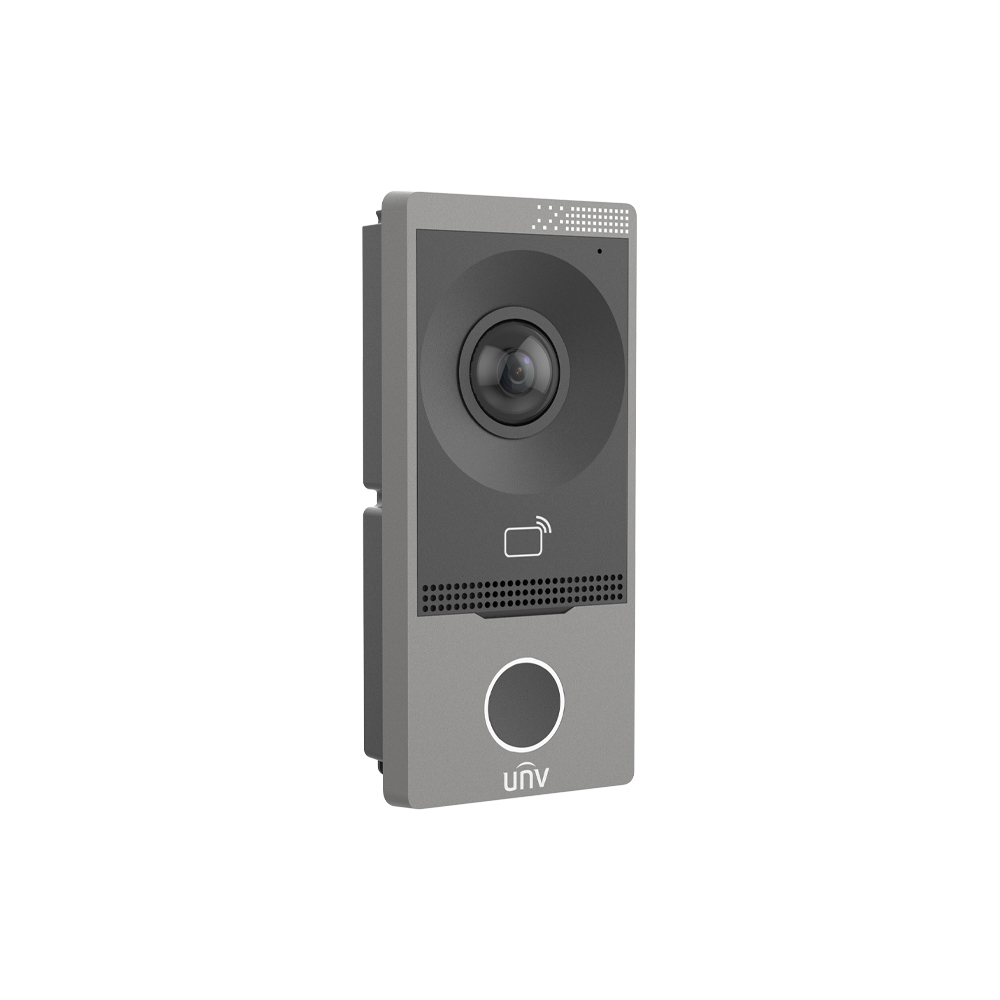

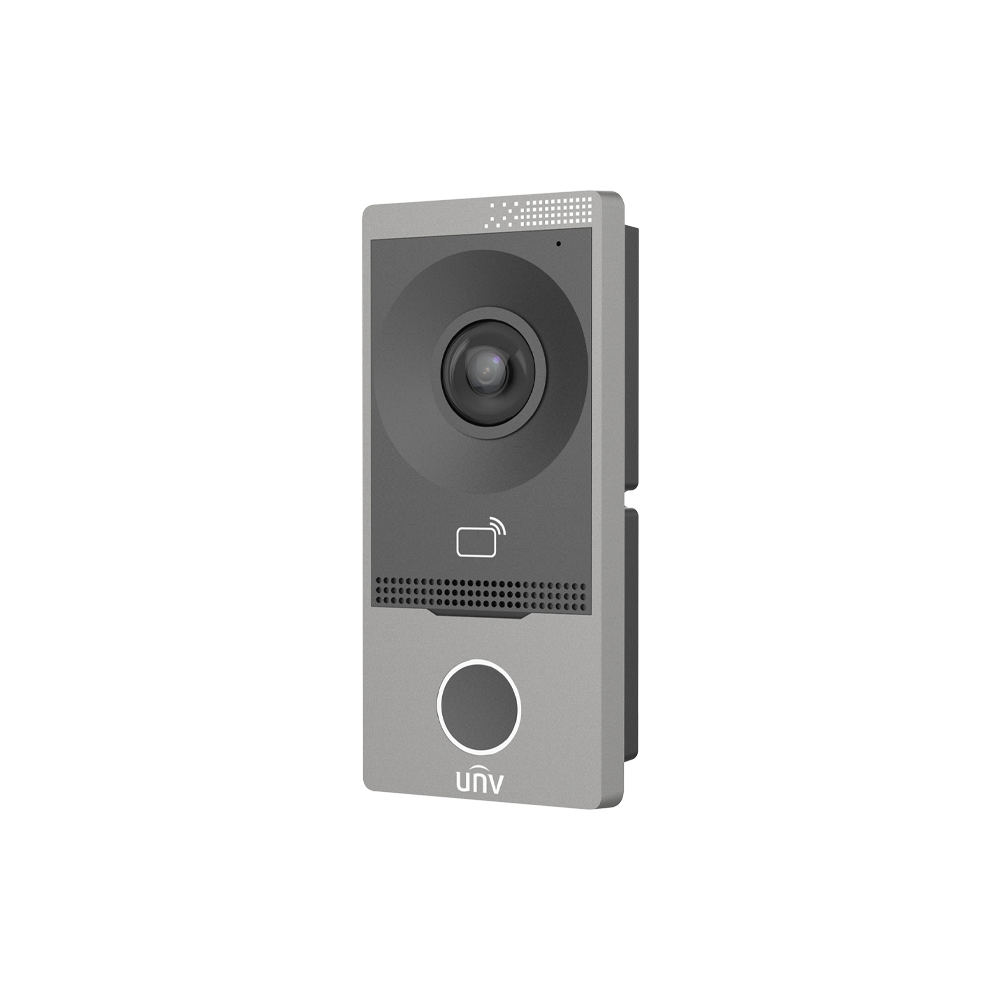

The OEU-201S-HMK-W is a cutting-edge terminal for digital building intercom systems, delivering seamless video intercom, security alarms, and video surveillance to enhance safety and comfort in residential settings. Ideal for villas and modern homes, it ensures a secure and convenient living experience.
Features
- Premium aluminum alloy front panel
- Enables batch configuration for easy setup
- Facilitates intercom calls to linked indoor units or mobile apps
- Includes monitoring, security, and tamper alarm functions
- Supports Wi-Fi connectivity
- Integrated IC card reader for secure access
Keywords: Video intercom, security alarm, video surveillance, digital intercom system, villa residential, aluminum alloy panel, Wi-Fi enabled, IC card reader, batch configuration, tamper alarm, smart home security, indoor unit intercom, mobile app integration.
Hardware Specification | ||||||||
Operation System | Linux | |||||||
Supplement Light | IR light(Adaptive infrared compensation) | |||||||
FOV | Horizontal:124.3° Vertical:67.5° Diagonal:147.2° |
|||||||
Power Consumption | <10W | |||||||
Volume Adjustment | Adjustable | |||||||
Audio Quality | Noise suppression, echo cancellation and AGC | |||||||
Audio Input | 1 built-in omnidirectional microphone | |||||||
Audio Output | 1 built-in speaker | |||||||
Audio Compression Standard | PCM, G711, MP3 | |||||||
Audio Compression Bitrate | 128Kbps | |||||||
Protection Level | IP65 (Apply waterproof glue to the gap between the device and the wall. For more information, see the quick guide.) IK08 |
|||||||
Power Supply | DC 12V±25% input;IEEE802.3af, Standard PoE | |||||||
Weight | 0.267Kg | |||||||
Mount Method | Wall mounted, flush installation | |||||||
Network | 100Mbps network port, supports IEEE802.3af PoE power supply,WIFI | |||||||
Interface | Power *1, network port *1, RS485, door lock interface *2, IO input *4 | |||||||
Resolution | 2MP | |||||||
Dimensions (L x W x H) | 79mm×171mm×34mm | |||||||
Operating Environment | ﹣30℃~﹢60℃,10%~90%, non-condensing, outdoor | |||||||
Operating Frequency | 13.56MHz | |||||||
Basic Business | ||||||||
WDR | Support DWDR | |||||||
Protocol | UNV private protocol | |||||||
Button | 1 physical button | |||||||
Network protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP | |||||||
Specification Index | ||||||||
Card Capacity | 10000 | |||||||
Linked Indoor Station Capacity | 20 |
