| Camera | |
| Max Resolution | 8 MP |
| Sensor Size | 1/2.7″ CMOS |
| Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR ON) |
| Lens | |
| Focus | 2.8 mm |
| Lens Mount | M12 |
| Angle of View (H) | 109.1° |
| Angle of View (V) | 61.0° |
| Angle of View (D) | 126.7° |
| Illuminator | |
| Illuminator Number | Two IR illuminators |
| Illumination Distance | 40m |
| Lifetime | ≥ 60000 hours |
| Video | |
| Resolution | 4K: 3840(H) × 2160(V) 5MP@20fps: 2592(H)×1944(V); 4MP: 2560(H)×1440(V) |
| Frame Rate | CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25s-1/50000s, NTSC: 1/30s-1/50000s |
| Image | |
| Exposure Mode | Four modes: Global (default), BLC, HLC, WDR |
| Day/Night | Three modes: Auto (default), Day, Night |
| Digital Noise Reduction | 2D/3D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | 120 dB WDR |
| Smart IR | Support |
| Flip | Supports 180°horizontal flip, 180°vertical flip |
| Digital Defog | N/A |
| Audio | |
| Built-in Mic | Support |
| Camera Audio | CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps |
| Interface | |
| Power Interface | 5.5 mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
| Humidity | ≤ 95% RH (non-condensing) |
| Surge Protection | 4kV for power&4kV for video output interfaces |
| General | |
| Power | DC 12 V ± 25% |
| Power Consumption | MAX 4.8W |
| Mount | Wall Mount, Pole Mount, Corner Mount, Pendant Mount |
| Dimensions | Φ111mm*98mm (diameter*height) |
| Material | Metal |
| Weight | 417g(0.92lb) |
| OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |

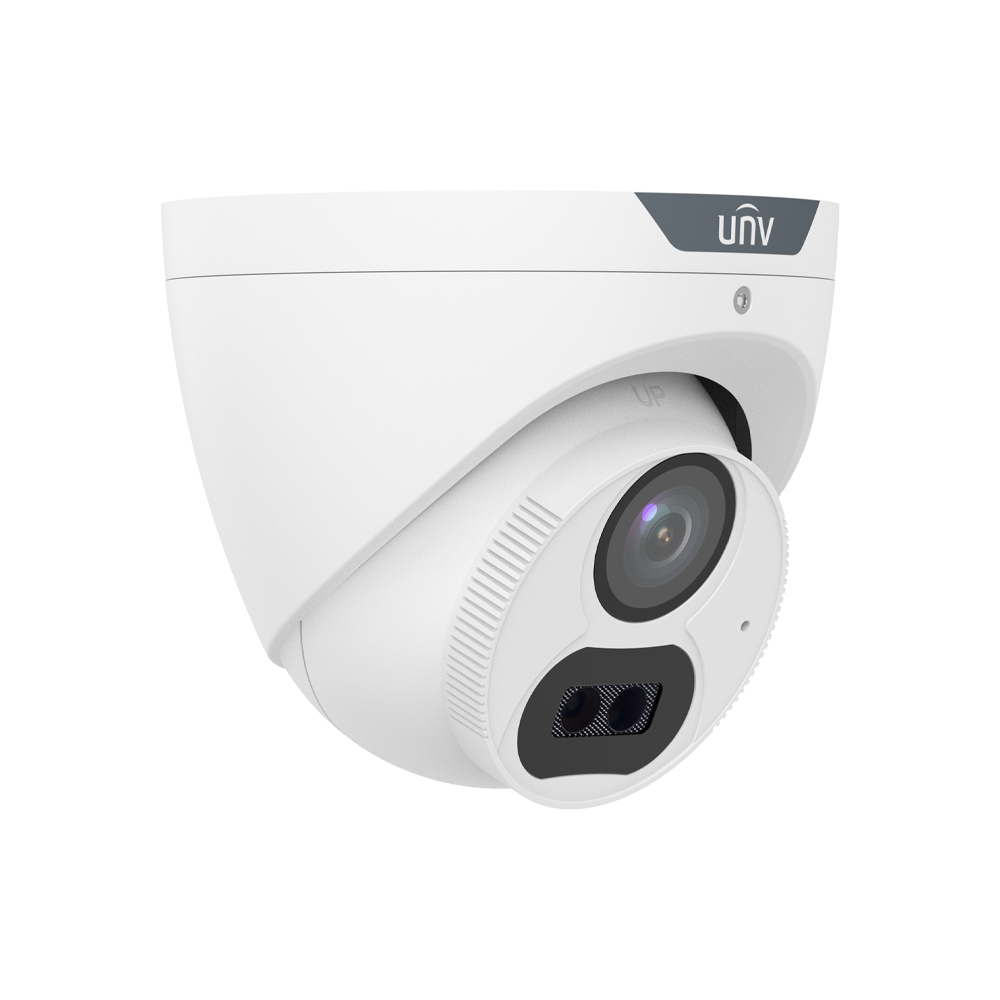

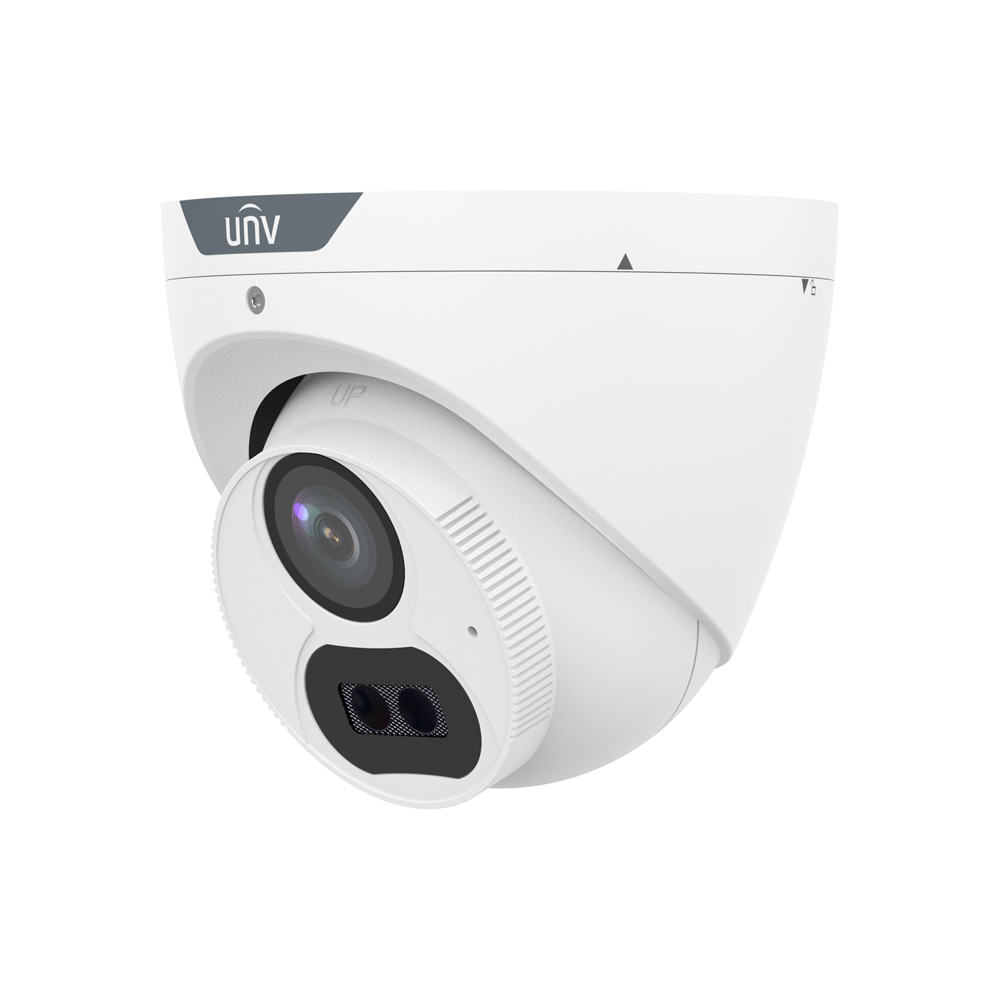

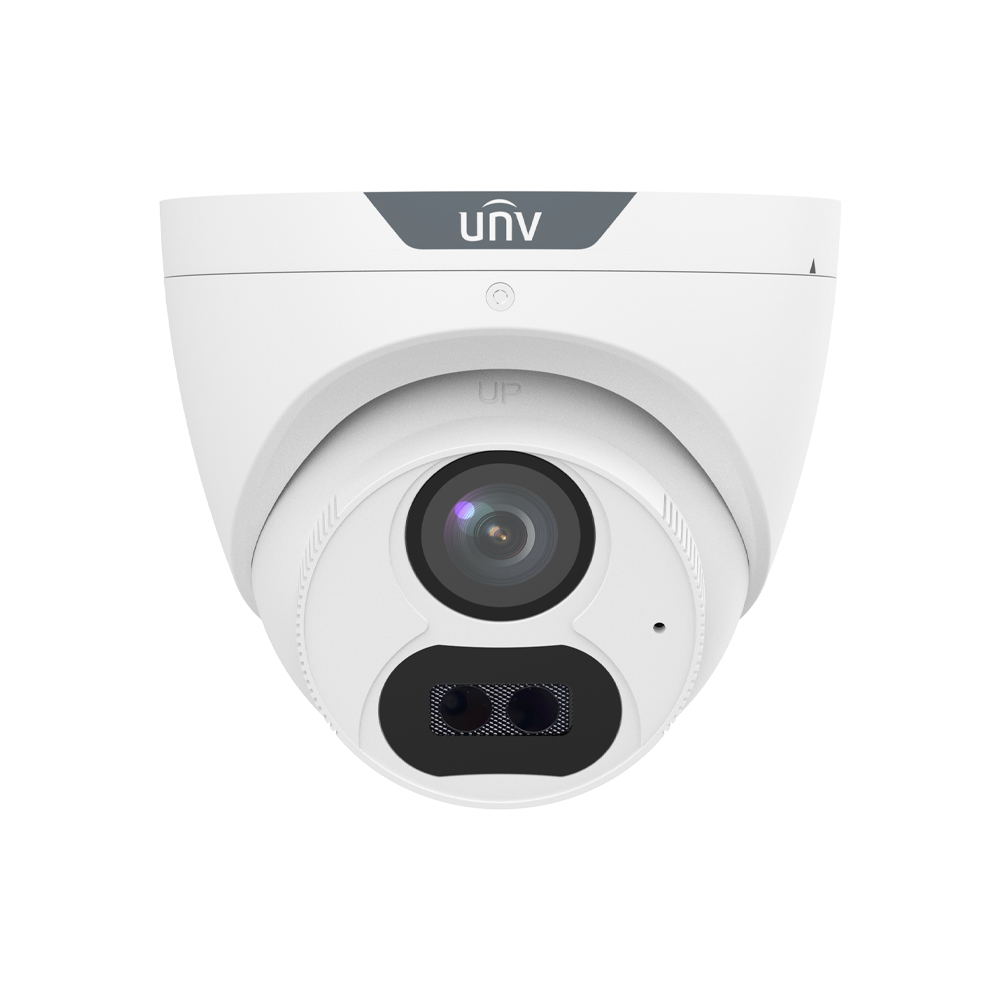

UNV 8MP Analog LightHunter Camera
Login for Price
- 2.8mm Fixed Lens
- High quality imaging with 8MP resolution
- TVI/CVI/AHD/CVBS
- Supports IR-cut filter with auto-switch (ICR)
- LightHunter monitoring with high-sensitivity sensor
- 3D noise reduction technology delivers clean and sharp images
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high quality audio transmission via coaxial cables
- 120dB true WDR technology enables clear image in strong light scene
Description
Documents
| Title | Type | Size | |
|---|---|---|---|
|  | UNV UAC-T128-ADF28MS | application/pdf | 1 MB |
Additional information
| Brand | UNV |
|---|---|
| Features | LightHunter, Turret Camera |
| Resolution | 8 MegaPixel |
| Technology | AHD, Analog (CVBS), CVI, TVI |
