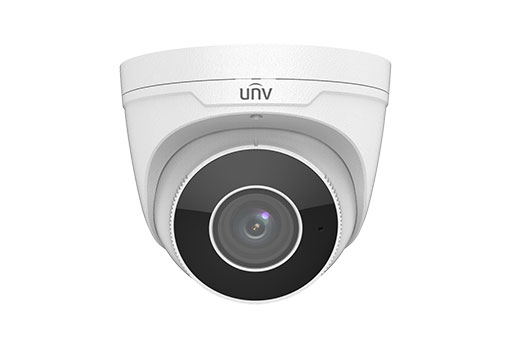

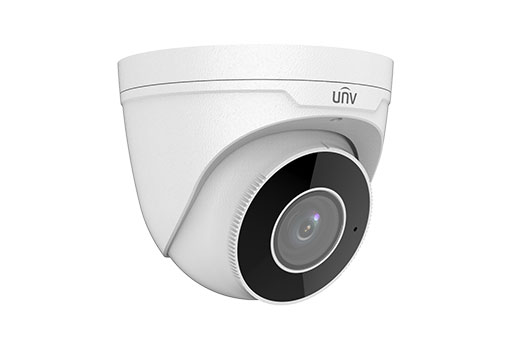

UNV 8MP LightHunter 2.8-12mm Motorised Varifocal Turret Network Camera with Microphone

Name: UNV 8MP LightHunter 2.8-12mm Motorised Varifocal Turret Network Camera with Microphone
SKU: IPC3638SR3-DPZ
Price: 138.00 GBP
Availability: InStock

• 1/2.0″,progressive scan,CMOS
• Up to 3840×2160 resolution,20fps
• 2.8~12 mm
• Smart IR, up to 30m IR distance
• 2D/3D DNR, ROI, 9:16 corridor mode, ONVIF
• Ultra 265,H.265,ONVIF
• DC12V,PoE.Wide voltage range of ±25%
• IP67

Camera
Sensor	1/2″, 8.0 megapixel, progressive scan, CMOS
Lens	2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)		Identify (m)
	2.8	63		25.2	12.6		6.3
	12	270		108	54		27
Angle of view (H)	114.8° ~ 47.3°
Angle of View (V)	75.3° ~ 20.4°
Angle of View (O)	141.2° ~ 55.8°
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 90°			Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
IR Range	Up to 30m (98ft) IR range
wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 8MP (38402160), Max 20fps; 5MP (25921944), Max 30fps; 5MP (29441656), Max 30fps; 4MP (25601440), Max 30fps; 2MP (19201080), Max 60fps; Sub Stream: 2MP (19201080), Max 30fps; Third Stream: D1 (720*576), Max 30fps
Video Bit Rate	128 Kbps~16 Mbps
9:16 Corridor Mode	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping	Support
HLC	Support
BLC	Support
Audio
Audio Compression	G.711
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR, NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Built-in Mic	Supported
Network	1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 8.16W
Dimensions (Ø x H)	Φ129 x 110mm (Ø5.08” x 4.3”)
Net Weight	0.82kg (1.8lb)
Material	Metal
Working Environment	-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
surge protection	6KV
Reset Button	Supported
Ingress Protection	IP67

Title	Type	Size
IPC3600 Series-Network Mini Dome Cameras Quick Guide-V1.01	application/pdf	1 MB
Network Camera User Manual-V3.00	application/pdf	11 MB
UNV IPC3638SR3-DPZ 8MP WDR LightHunter VF Eyeball Network IR Camera V2.1	application/pdf	751 KB

Brand	UNV
Technology	IP
Resolution	4K, 8MP
