KEY FEATURES:
– HD CMOS camera
– Stainless steel panel, IP54,IK07
– Night vision & Voice indication
– Video & Audio messaging
– Remote intercom with mobile APP
– Surface mounted & Flush mounted
SPECIFICATIONS:

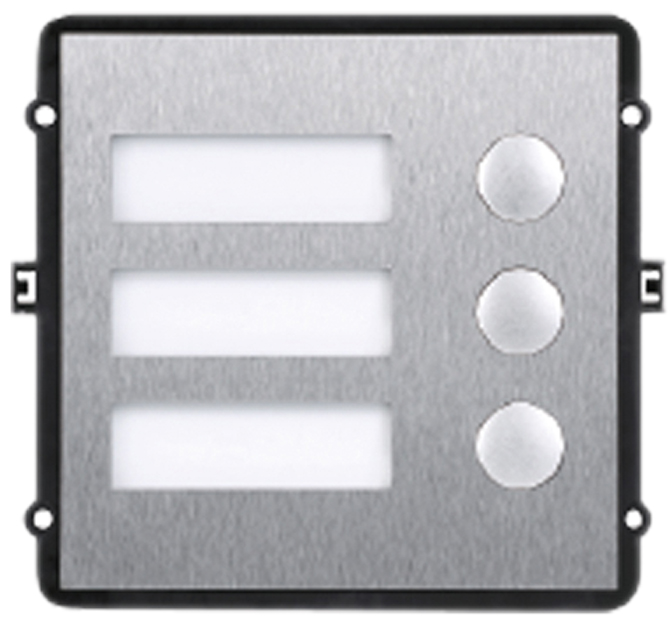

Model Number | VI-MODULE01-B |
Main Processor | Embedded Micro Processor |
Operating System | Embedded LINUX OS |
Video | |
Video Compression | H.264 |
Image Sensor | 1/3″ 1MP CMOS |
Lens | 2.8mm |
Angle of View | D:80° H:75° |
Day/Night | Day/Night |
Audio | |
Audio Compression | G.711 |
Audio Input | Omnidirectional Mic |
Audio Output | Built-in Speaker |
Bidirectional Talk | Support Dual-way Bidirectional talk |
Operation Mode | |
Keypad | Mechanical Button |
Interface | |
Door Control | 2(1 relay out for main lock, 1 extended by access control module) |
Alarm In | 2(1ch unlock button, 1ch feedback) |
RS485 | 1 |
Network | |
Ethernet | 10M/100Mbps Self-adaptive |
Network Protocol | TCP/IP |
General – VI-MODULE01-B | |
Material | Stainless Steel |
Power | DC 12V / POE Provided by VI-SWITCH01 |
Power Consumption | Standby ≤0.1W, Work ≤0.45W Standby ≤0.3W, Work ≤0.3W |
Working Temperature | -40°C~+60°C |
Relative Humidity | 10%~90%RH |
Dimensions | 110mm×120mm×24.9mm |
Weight | 0.27Kg |
Proximity Sensor | N/A |
