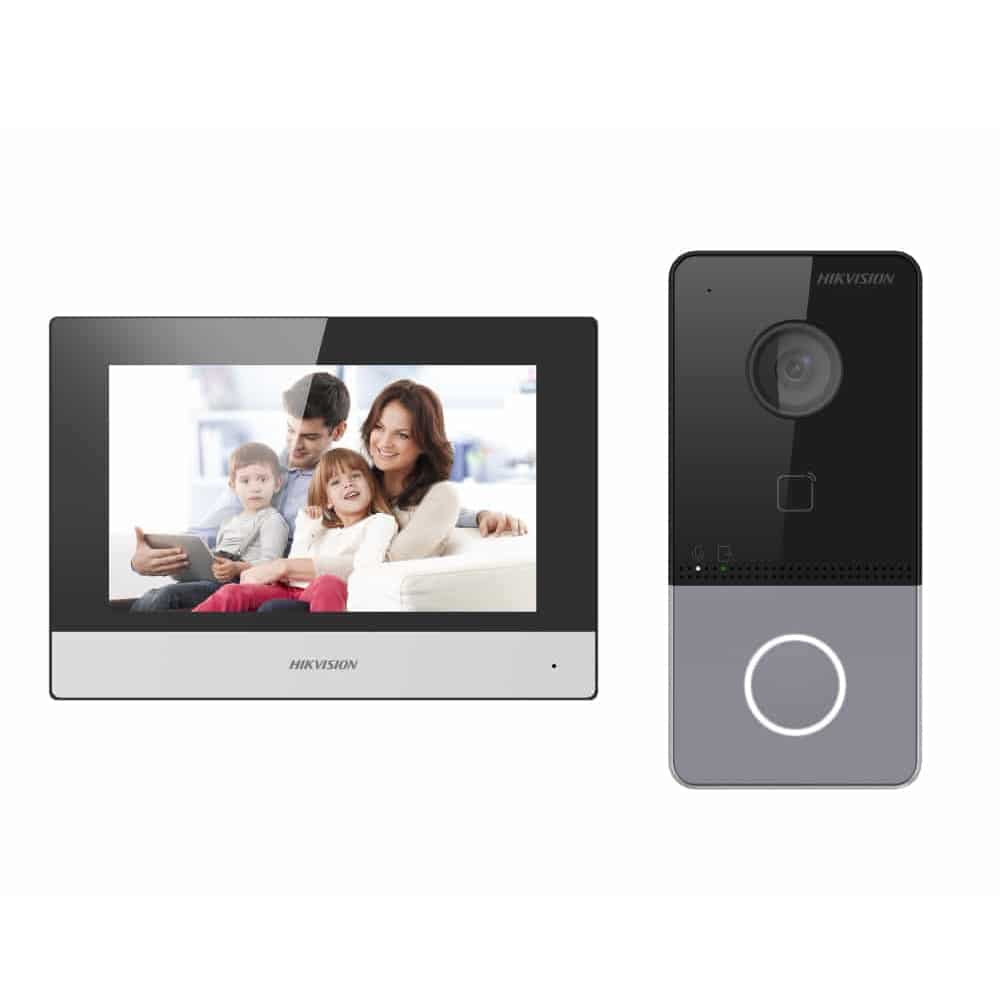

HIKVision 2MP Wi-Fi Video Intercom Villa Door Station with Indoor Monitor
Hikvision 2.4GHz Wi-Fi video doorbell villa door station bundle, 2MP camera, built in mifare card reader, self-adaptive IR supplement with max. 5m IR distance, H.264, WDR, IP55, 12VDC/POE, 3 year warranty *Operates on 2.4GHz Wi-Fi range only, Indoor station: 7-inch touch screen with 1024×600 resolution
- 2MP HD Camera with IR supplement
- Remotely unlock door/gate via client software or mobile client
- 7-inch indoor monitor touch screen (1024×600 resolution)
- Supports WiFi (2.4GHz only)
- Supports setup via web GUI
- IP65 weather rated
- Built-in Mifare card reader
- Standard PoE/ 12 VDC
| Door station/System parameters | |
| Operation system | Embedded Linux operation system |
| Flash | 32 MB |
| RAM | 128 MB |
| Door station/Video parameters | |
| Camera | 2MP HD camer |
| Night vision | Low illumination IR supplement mode:3 m |
| Backlight compensation | Support |
| Digital noise reduction | Support |
| WDR | True WDR |
| Field of view | Horizontal: 129° Vertical: 75° |
| Video Compression Standard | H.264 |
| Stream | Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps |
| Motion detection | Support |
| Flash-avoid frequency | 50 Hz, 60 Hz |
| Door station/Audio parameters | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
| Audio intercom | Two-way audio communication |
| Door station/Network parameters | |
| Network protocol | TCP/IP, RSTP |
| Wired network | 10/100 Mbps Ethernet |
| Door station/Device interfaces | |
| RS-485 | 1 |
| Alarm input | 1 |
| Debugging port | 1 |
| Grounding | 1 |
| TAMPER switch | 1 |
| Door station/General | |
| Power consumption | < 10 W |
| Working temperaturee | -40° C to 53° C(-40° F to 127.4° F) |
| Working humidity | 10% to 95% |
| Dimension | 138 mm × 65 mm × 27 mm |
| Installation | Surface mounting |
| Protection level | IP65 |
| Indicator | 2 |
| Power supply | IEEE802.3af, standard PoE, 12 VDC |
| Indoor station/System parameters | |
| Operation system | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
| Indoor station/Display parameters | |
| Display screen | 7-inch colorful TFT screen |
| Display resolution | 1024 x 600 |
| Operation method | Capacitive touch screen |
| Indoor station/Audio parameters | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
| Indoor station/Network parameters | |
| Wired network | 10/100 Mbps self-adaptive |
| Wireless network | Wi-Fi 802.11 b/g/n |
| Protocol | lTCP/IP, SIP, RTSP |
| RS-485 | 1 RJ-45 10/100 Mbps self-adaptive |
| Indoor station/Device interfaces | |
| RS-485 | 1 |
| Alarm input | 8-ch alarm inputs |
| Relay output | 2 |
| TF card | Max to 32 G, SD 2.0 or lower version |
| Indoor station/General | |
| Power consumption | ≤ 6 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimension (L x W x H) | 200 mm × 140 mm × 15.1 mm (7.9″ x 5.5″ x 0.6″) |
| Title | Type | Size | |
|---|---|---|---|
|
DS-KIS603-P | application/pdf | 426 KB |
| Brand | Hikvision |
|---|---|
| Resolution | 2 MegaPixel |
| Technology | IP |
| Features | 2-Way Audio, Microphone Built-In, PoE |
