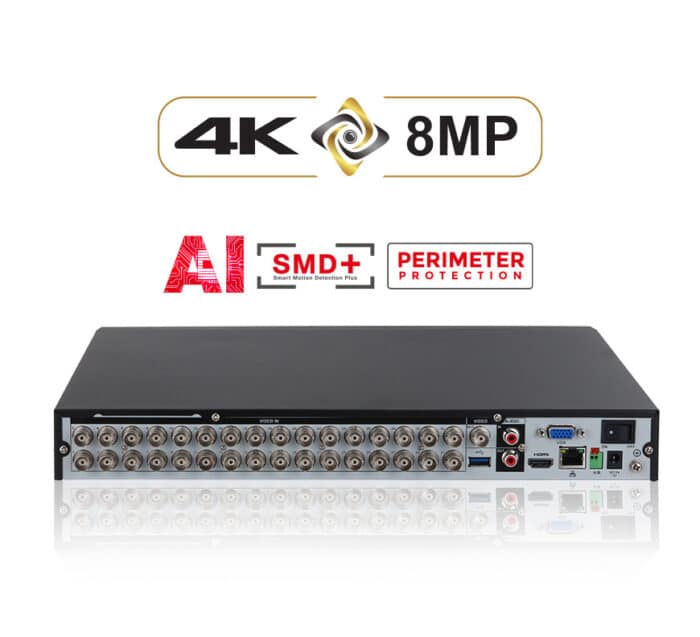

SPRO 8MP/4K 32CH 5-in-1 HD CCTV DVR Recorder with AI DHDVR32-B6
Original price was: £838.32.£746.88Current price is: £746.88. inc VAT
The new 4K B6 32ch BNC DVR incorporates support for AI assisted smart motion detection events. The 5-in 1 DVR natively supports CVI cameras but also works with TVI, AHD, CVBS & IP cameras
KEY FEATURES:
- 32 channel BNC recording
- Supports H.264/H.264+/H265/H265+ video compression
- 5 IN 1 (CVI/TVI/AHD/ANALOGUE/IP) – Supports up to 8MP IP cameras (analogue channels must converted to IP channels)
- Supports IP Audio over CAT5/6 (compatible SPRO/ONVIF cameras required)
- Supports Analogue Audio over Coax (SPRO compatible cameras required)
- P2P mobile phone setup (no port forwarding or complicated setup)
- Easy P2P for remote mobile viewing (no complicated port forwarding required)
- Encodes 4K(7fps), 6MP(10fps), 5MP(12fps), 4MP/3MP(15fps), 4M-N/1080P/720P/960H/D1/CIF/QCIF (25fps)
- ONVIF 21.12, CGI Conformant
- SMD PLUS (smart motion detection plus) & perimeter protection
- Intrusion & tripwire (human & vehicle classification)
- Face detection 2.0
- PTZ control over 1 co-ax cable (mouse control on DVR – area zoom & scroll zoom)
SPECIFICATIONS:
| Model Number | DHDVR32-B6 |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| Operating Interface | Web; Local GUI |
| Perimeter Protection | |
| Performance | Advanced Model: 6 channels, 10 IVS for each channel General Model: 12 channels, 10 IVS for each channel |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance AI by Recorder |
6 channel (up to 12 face image/s each channel) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 20 000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries & regions and state can be added to each face image. |
| Face Recognition Performance AI by Recorder |
6 channels |
| SMD Plus | |
| SMD Plus by Recorder | 32 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| Audio and Video | |
| Analogue Camera Input | 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps. 2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
| IP Camera Input | Up to 32 channels of IPC access 32 channels (analogue channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps |
| Encoding Capacity | Main stream: 4K@(1fps-7fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps); 4K-N, 4 MP, 3 MP@(1fps-15fps); 4M-N, 1080p, 720p, 960H, D1,CIF@ (1fps–25/30fps); Sub stream: 960H@(1fps–15fps); D1/CIF@ (1 fps–25/30fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32kbps-6144kbps |
| Audio Sampling | 8kHz, 16 bit |
| Audio Bit Rate | 64kbps |
| Video Output | 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Multi-screen Display | 1/4/8/9/16/25/36 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Samsung |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 21.12; CGI |
| Browser | Chrome, IE9 or later, Firefox |
| Network Mode | Single-address mode |
| Recording Playback | |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Record Playback | 1/4/9/16 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection; video loss; tampering; local alarm |
| Anomaly Alarm | No disk; storage error; disk full; camera offline; IP conflict; MAC conflict |
| Intelligent Alarm | Face Detection; face recognition; perimeter protection |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email |
| Ports | |
| TV Output | 1 channel |
| Audio Input | 1-channel RCA 32-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 2 SATA ports, up to 16TB capacity for each disk. The Maximum HDD capacity varies with environment temperature. |
| RS-485 | 1 port, for PTZ control |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1(10/100/1000 Mbps Ethernet port, RJ-45 ) |
| General | |
| Power Supply | DV12V, 5A |
| Power Consumption | <32W (without HDD) |
| Net Weight | 2.50kg (5.52lb) |
| Gross Weight | 4.10kg (9.04lb) |
| Product Dimensions | 375.0 mm × 334.4 mm × 53.0 mm (14.76”×13.17”×2.09”) (W×D× H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH) |
| Installation | Rack or Desktop |
| Certification | |
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
| Title | Type | Size | |
|---|---|---|---|
|
DHDVR32-B6 | application/pdf | 446 KB |
| Brand | SPRO |
|---|---|
| Channels | 32 Channel |
| Resolution | 8 MegaPixel |
| Technology | 5-in-1 |
