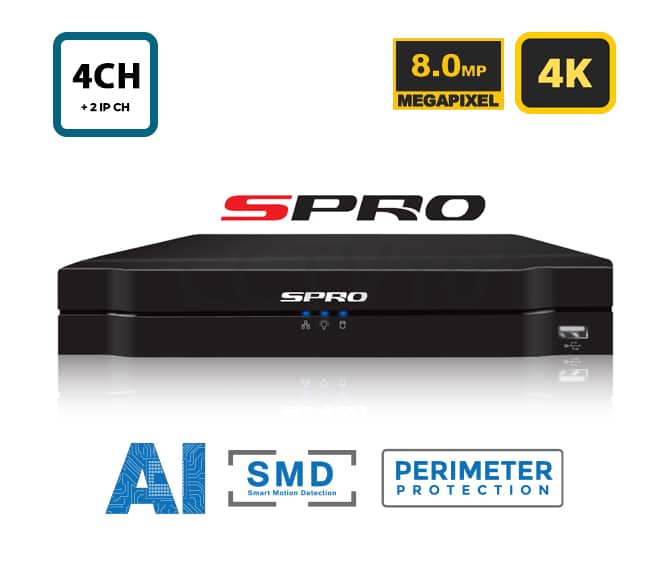

SPRO 8MP/4K 4CH 5-in-1 HD CCTV DVR Recorder with AI DHDVR06-B6-V2
Original price was: £151.20.£134.99Current price is: £134.99. inc VAT
The new 4K B6 4ch DVR incorporates support for AI assisted smart motion detection events. The 5-in 1 DVR natively supports CVI cameras but also works with TVI, AHD, CVBS & IP cameras
Description
KEY FEATURES:
- 6 channel recording (4 channel BNC + 2 channel 8MP IP)
- Supports H.264/H.264+/H265/H265+ video compression
- 5 IN 1 (CVI/TVI/AHD/ANALOGUE/IP) – Supports up to 8MP on extra IP channels
- Supports IP Audio over CAT5/6 on extra IP channels (compatible SPRO/ONVIF cameras required)
- Supports Analogue Audio over Coax (SPRO compatible cameras required)
- P2P mobile phone setup (no port forwarding or complicated setup)
- Easy P2P for remote mobile viewing (no complicated port forwarding required)
- Encodes 4K(7fps), 6MP(10fps), 5MP(12fps), 4MP/3MP(15fps), 4M-N/1080P/720P/960H/D1/CIF/QCIF (25fps)
- ONVIF 16.12, CGI Conformant
- SMD PLUS (smart motion detection plus) & perimeter protection
- Intrusion & tripwire (human & vehicle classification)
- Face detection 2.0
- PTZ control over 1 co-ax cable (mouse control on DVR – area zoom & scroll zoom)
SPECIFICATIONS:
| Specifications: | |
| Model Number | DHDVR06-B6-V3 |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Perimeter Protection | |
| Performance | 2 channels, 10 IVS for each channel |
| Object classification | Human/Vehicle secondary recognition for tripwire and intrusion |
| AI Search | Search by target classification (Human, Vehicle) |
| Face Recognition | |
| Performance | Max 8 face pictures/sec processing 2 channels video stream face recognition, only support analog camera |
| Stranger Mode | Detect strangers’ faces (not in device’s face database). Similarity threshold can be set manually. |
| AI Search | Up to 8 target face images search at same time, similarity threshold can be set for each target face image. |
| Database Management | Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture. |
| Database Application | Each database can be applied to video channels independently. |
| Trigger Events | Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc. |
| SMD Plus | |
| Performance | 4 channels |
| AI Search | Search by target classification (Human, Vehicle) |
| Video & Audio | |
| Analog Camera Input | 4 channels, BNC |
| HDCVI Camera Input | 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD Camera Input | 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps |
| TVI Camera Input | 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps |
| CVBS Camera Input | PAL/NTSC |
| IP Camera Input | 4+2 channels, each channel up to 8MP |
| Audio In/Out | P1/1, RCA |
| Two-way Talk | Reuse audio in/out, RCA |
| Recording | |
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Resolution | 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF |
| Record Rate – Main Stream | 4K(7fps), 6MP(10fps), 5MP(12fps),4MP/3MP(15fps),4M-N/ 1080P/ 720P/ 960H/ D1/ CIF/ QCIF (25fps) |
| Record Rate – Sub Stream | 960H (1~15fps), D1/ CIF/ QCIF (1~25fps) |
| Bit Rate | 32Kbps~6144Kbps Per Channel |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Sample Rate | 8KHz, 16 bit Per Channel |
| Audio Bit Rate | 64Kbps Per Channel |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution HDMI | 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 |
| Resolution VGA | 1920×1080, 1280×1024, 1280×720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/8/9 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Network | |
| Ethernet | 1 RJ-45 Port (100 MB) |
| Network Functions | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android Phone |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection & Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm input | N/A |
| Relay Output | N/A |
| Playback & Backup | |
| Sync Playback | 1/4 |
| Search Mode | Time/Date, MD & Exact search (accurate to second) |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 1 SATA port, up to 10TB |
| Auxiliary Interface | |
| USB Interface | 2 USB Ports (USB 2.0) |
| RS485 | 1 port, For PTZ Control |
| RS232 | N/A |
| General | |
| Power Supply | DC12V/2A |
| Power Consumption | <7W (without HDD) |
| Dimensions | Compact 1U, 260mm × 238mm × 48mm |
| Net Weight | 1.1KG(without HDD) |
| Gross Weight | 1.5KG(without HDD) |
| Operating Environment | -10°C ~+55°C / 0%~90%RH |
| Storage Conditions | -20°C ~+70°C / 0%~90%RH |
Documents
| Title | Type | Size | |
|---|---|---|---|
|
DHDVR06-B3-V2 | application/pdf | 898 KB |
Additional information
| Brand | SPRO |
|---|---|
| Channels | 4 Channel |
| Resolution | 8 MegaPixel |
| Technology | 5-in-1 |
