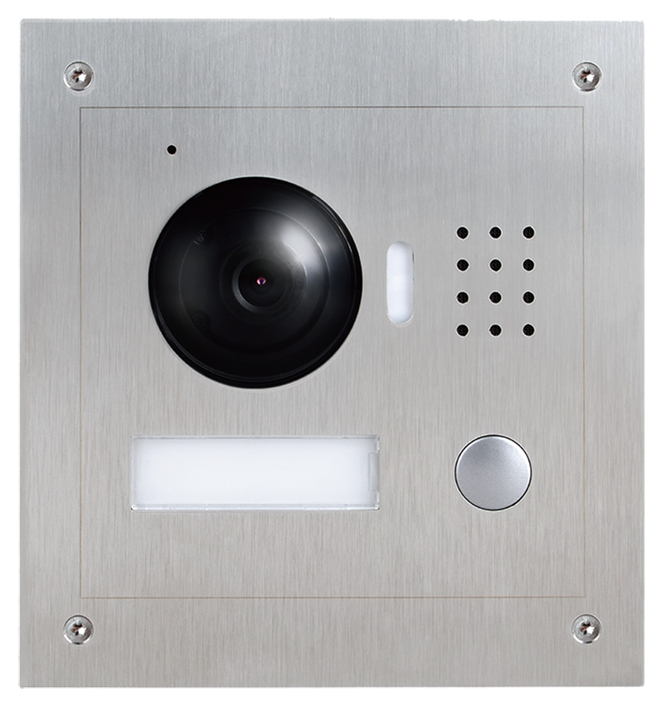

SPRO 1.3MP CAMERA BUILT IN, 2.8MM, MICROPHONE & SPEAKER, ALARMS, DC12V/POE
£255.20 inc VAT
Out of stock
Description
KEY FEATURES:
– HD CMOS camera
– Stainless steel panel, IP54,IK07
– Night vision & Voice indication
– Video & Audio messaging
– Remote intercom with mobile APP
– Surface mounted & Flush mounted
SPECIFICATIONS:
| Model Number | VI-MODULE01-A |
| Main Processor | Embedded Micro Processor |
| Operating System | Embedded LINUX OS |
| Video | |
| Video Compression | H.264 |
| Image Sensor | 1/3″ 1MP CMOS |
| Lens | 2.8mm |
| Angle of View | D:80° H:75° |
| Day/Night | Day/Night |
| Audio | |
| Audio Compression | G.711 |
| Audio Input | Omnidirectional Mic |
| Audio Output | Built-in Speaker |
| Bidirectional Talk | Support Dual-way Bidirectional talk |
| Operation Mode | |
| Keypad | Mechanical Button |
| Interface | |
| Door Control | 2(1 relay out for main lock, 1 extended by access control module) |
| Alarm In | 2(1ch unlock button, 1ch feedback) |
| RS485 | 1 |
| Network | |
| Ethernet | 10M/100Mbps Self-adaptive |
| Network Protocol | TCP/IP |
| General – VI-MODULE01-A | |
| Ingress Protection | IP54, IK07 |
| Tamper Switch | 1 |
| Installation | Surface & Flush |
| Material | Stainless Steel |
| Power | DC 12V / POE Provided by VI-SWITCH01 |
| Power Consumption | Standby ≤1W, Work ≤10W |
| Working Temperature | -40°C~+60°C |
| Relative Humidity | 10%~90%RH |
| Dimensions | 110.7mm×118.1mm×42.3mm |
| Weight | 0.36Kg |
| Proximity Sensor | N/A |
Documents
| Title | Type | Size | |
|---|---|---|---|
|
VI-MODULE01-A | application/pdf | 554 KB |
Additional information
| Brand | SPRO |
|---|
