Hikvision 4MP DeepinView ANPR Bullet Camera 4.7-118mm iDS-2CD7A45G0/P-IZHSY
Login for Price
- Image Sensor: 1/2.5" Progressive Scan CMOS
- Max. Resolution: 2688 × 1520
- Supplement Light Range: Up to 200 m
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Description

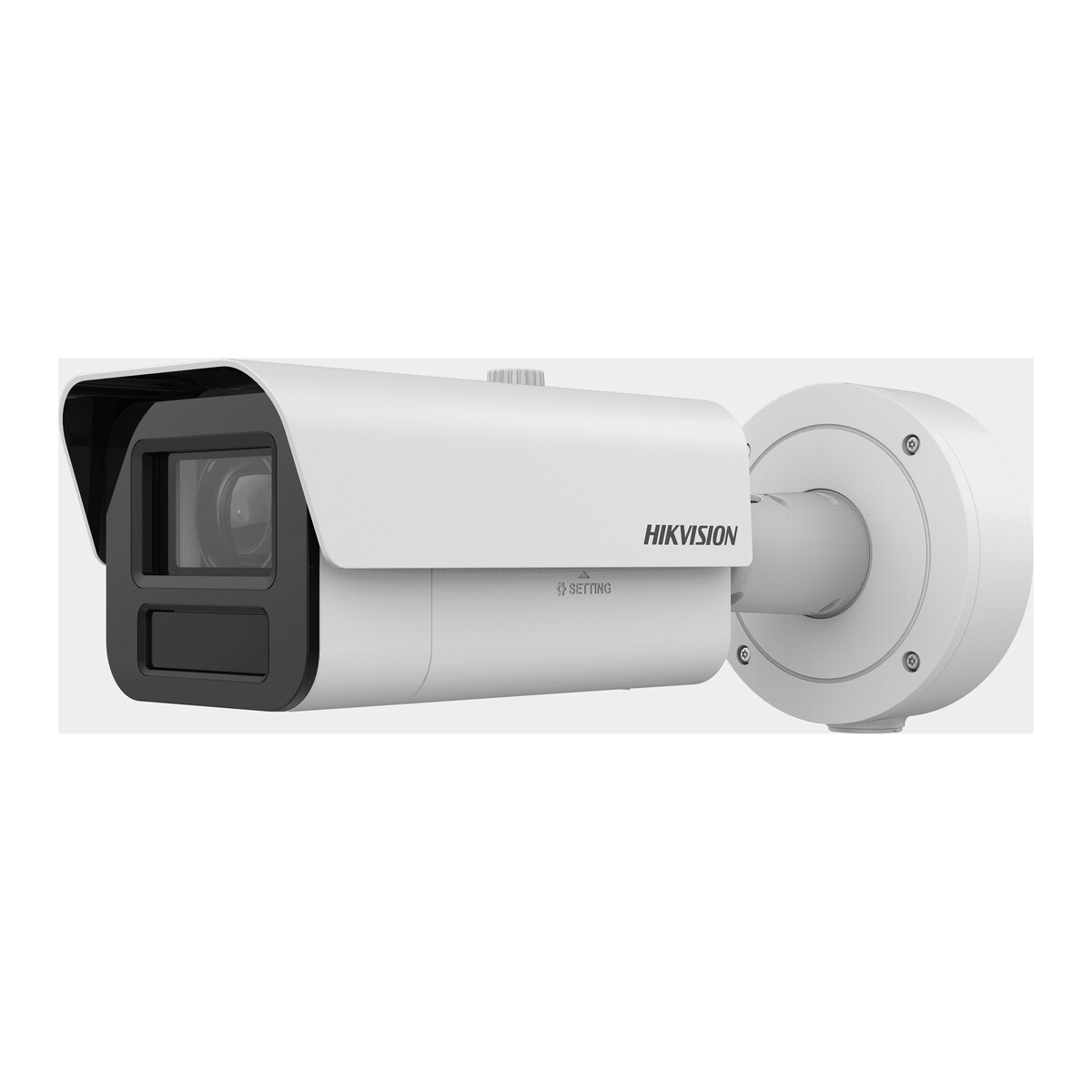

The Hikvision iDS-2CD7A45G0/P-IZHSY is a 4MP ANPR bullet network camera with a 4.7-118mm lens. It records to a Hikvision NVR and can be viewed from anywhere in the Hik-Connect app.
Key features
- Image Sensor: 1/2.5" Progressive Scan CMOS
- Max. Resolution: 2688 × 1520
- Supplement Light Range: Up to 200 m
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Type: Mono sound
Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.009 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | 1 s to 1/30,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens | |
| Focal Length & FOV | 4.7 to 118 mm, horizontal FOV 58° to 2.8°, vertical FOV 32.3° to 1.6°, diagonal FOV 63° to 3° |
| Focus | Auto,Semi-auto,Manual |
| Iris Type | P-iris |
| Aperture | 4.7 to 118 mm: F1.6 to F3.8 |
| DORI | |
| DORI | Wide: D (Detect): 106 m, O (Observe): 42.1 m, R (Recognize): 21.2 m, I (Identify): 10.6 mTele: D (Detect): 2200 m, O (Observe): 873 m, R (Recognize): 440 m, I (Identify): 220 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 200 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz:25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz:30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)60 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480) |
| Fifth Stream | 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,Fifth stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for each stream |
| Target Cropping | Yes |
| e-PTZ | Support Patrol and Auto Tracking settings |
| Audio | |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256 |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Enhancement | BLC,HLC,3D DNR,Distortion Correction,Defog |
| SNR | = 52 dB |
| Privacy Mask | 8 programmable polygon privacy masks |
| Image Stabilization | EIS (Built-in gyroscope to improve EIS performance) |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| Interface | |
| Video Output | 1 Vp-p Composite Output (75 O/CVBS) (Only for debugging) |
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Audio | 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
| RS-485 | -Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | Yes |
| Power Output | -Y: 12 VDC, max. 100 mA |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection |
| Smart Event | scene change detection,audio exception detection,defocus detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning |
| Deep Learning Function | |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)Support combined event alarm triggering |
| Metadata | Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic |
| Road Traffic and Vehicle Detection | Smart Function:Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.Support vehicle and non-vehicle countingBlocklist and allowlist: up to 10,000 recordsLPR Countries/Regions:4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regionsAccuracy (Under recommended installation and lighting conditions):License plate recognition rate =98%Capture rate =99%Driving direction accuracy rate =98%Vehicle Capture Speed:Front installation in checkpoint scenario: up to 120 km/hSide installation: up to 80 km/hCapture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode |
| Parking Management | Support distant view mode and close view mode Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm |
| General | |
| Power | -IZHSY: 12 VDC ± 20%, 1.73 A, max. 20.7 W, three-core terminal block24 VAC ± 20%, 1.31 A, max. 19.9 W, three-core terminal blockPoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.46 A to 0.35 A, max. 19.5 W-IZHS: 12 VDC ± 20%, 1.62 A, max. 19.4 W, two-core terminal block24 VAC ± 20%, 1.21 A, max. 18.7 W, two-core terminal blockPoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.43 A to 0.32 A, max. 18.2 W |
| Material | Aluminum alloy body |
| Dimension | With -Y: Ø140 mm × 378.4 mm (Ø5.5" × 14.9") Without -Y: Ø144.1 mm × 375.2 mm (Ø5.7 × 14.8")" |
| Package Dimension | 425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1") |
| Weight | With -Y: Approx. 2160 g (4.8 lb.)Without -Y: Approx. 2130 g (4.7 lb.) |
| With Package Weight | With -Y: Approx. 3310 g (7.3 lb.)Without -Y: Approx. 3200 g (7.1 lb.) |
| Storage Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, mirror, flash log, password reset via email, pixel counter |
| Heater | Yes |
| De-icing | Yes |
| Device Management | Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces |
| Approval | |
| EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
| Anti-Corrosion Protection | -Y: NEMA 4X (NEMA 250-2018) |
| Other | PVC FREE |
Downloads
Additional information
| Brand | Hikvision |
|---|---|
| Lens | 4.7-118mm |
| Colour | White |
| Resolution | 4 MegaPixel |
| Technology | IP |
| Features | Vandal Resistant, ANPR, Bullet Camera, PoE, Varifocal |
