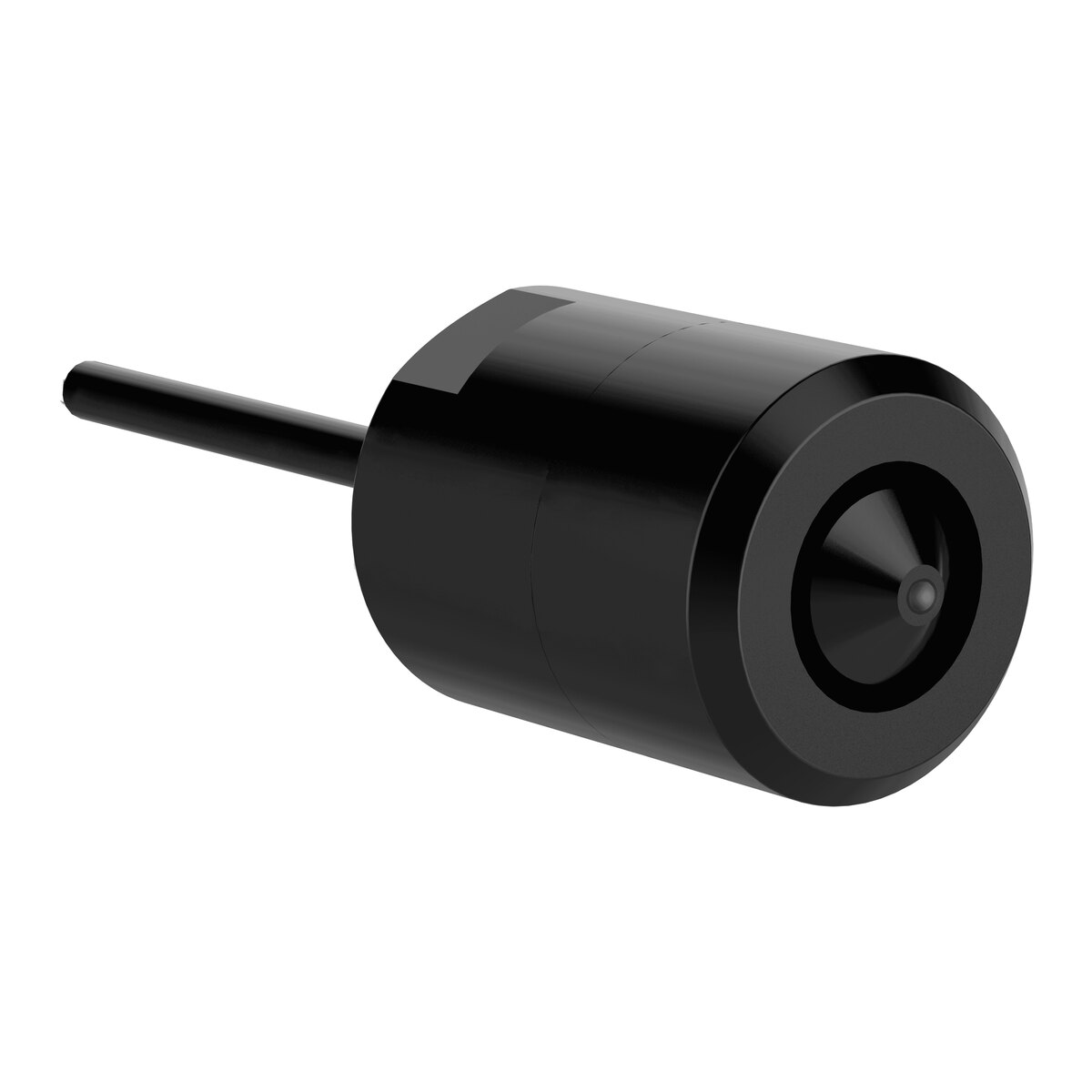

Hikvision 2MP Covert Pinhole Network Camera 3.7mm DS-2CD6425G1-L10

Image Sensor: 1/2.8" Progressive Scan CMOS
Max. Resolution: 1920 × 1080
Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON)
Lens Mount: L10/L20: MiniL30: M12

Description

The Hikvision DS-2CD6425G1-L10 is a 2mp covert pinhole network camera with a 3.7mm lens.

Key features

Image Sensor: 1/2.8" Progressive Scan CMOS
Max. Resolution: 1920 × 1080
Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON)
Lens Mount: L10/L20: MiniL30: M12
Audio Type: Mono
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.002 Lux @ (F1.2, AGC ON)
Shutter Time	1/3 s to 1/100,000 s
Lens
Focal Length & FOV	L10/L20 model:2.8 mm: horizontal FOV: 93.9°, vertical FOV: 51.7°, diagonal FOV: 109.3°3.7 mm: horizontal FOV: 75.5°, vertical FOV: 41.6°, diagonal FOV: 87.3°L30 model:2.8 mm: horizontal FOV: 107.8°, vertical FOV: 57.9°, diagonal FOV: 126.7°4 mm: horizontal FOV: 82.8°, vertical FOV: 45.1°, diagonal FOV: 98°
Lens Mount	L10/L20: MiniL30: M12
Iris Type	Fixed
Aperture	L10/L20: 2.8 mm: F2.53.7 mm: F2.5L30: 2.8 mm: F2.04 mm: F2
DORI
DORI	L10/L20:2.8 mm: D: 47.9 m, O: 19 m, R: 9.6 m, I: 4.8 m3.7 mm: D: 59.3 m, O: 23.5 m, R: 11.9 m, I: 5.9 mL30:2.8 mm: D: 42.8 m, O: 17 m, R: 8.6 m, I: 4.3 m4 mm: D: 55.2 m, O: 21.9 m, R: 11 m, I: 5.5 m
Video
Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream	50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
Video Compression	Main stream: H.265/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
H.264 Type	Baseline Profile/Main Profile/High Profile
H.265 Type	Main Profile
Bit Rate Control	CVR/BVR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	Support 1 fixed region for main stream
Audio
Audio Type	Mono
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate	64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate	8 kHz/16 kHz/32 kHz
Environment Noise Filtering	Yes
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Simultaneous Live View	Up to 15 channels
API	Open Network Video Interface, ISAPI, SDK, ISUP 5.0
User/Host	Up to 32 users3 level: administrator, operator, and user
Network Storage	NAS (NFS, SMB/CIFS)
Client	iVMS-4200, Hik-Connect
Web Browser	Plug-in required live view: IE10, IE11Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch	Yes
Image Settings	Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
Day/Night Switch	Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)	120 dB
Image Enhancement	BLC, HLC, defog, 3D DNR
Privacy Mask	Yes
Interface
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC card, up to 256 GB
Audio	1 input (line in), 1 output (line out)
Alarm	1 input, 1 output (max. 12 VDC, 30 mA)
RS-485	1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key	Yes
Event
Basic Event	Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis
Smart Event	Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detectionAudio exception detection, defocus detection, scene change detection
Linkage	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
General
Power	12 VDC ± 20%, 0.25 A, max. 3 W, two-core terminal blockPoE: 802.3af, Type 1, Class 3, 36 V to 57 V,0.1 A to 0.07A, max. 3.65 W
Dimension	Main body: 77.5 mm × 69 mm × 26 mm (3.1" × 2.7" × 1.0")L10: Ø26 mm × 40 mm (Ø1.0 × 1.6")L20: 37 mm × 26 mm × 25 mm (1.5 × 1.0" × 1.0")L30: Ø26 mm × 50 mm (Ø1.0 × 2.0")"
Package Dimension	Kit/Main body: 254 mm × 164 mm × 130 mm (10" × 6.5" × 5.1")Camera: 219 mm × 139 mm × 100 mm (8.6 × 5.5" × 3.9")"
Weight	Main body: approx. 90 g (0.2 lb.)Camera: approx. 90 g (0.2 lb.)
With Package Weight	Main body: approx. 456 g (1.0 lb.)Package (with 8 m cable): approx. 991 g (2.2 lb.)Package (with 2 m cable): approx. 776 g (1.7 lb.)Camera (with 8 m cable): approx. 676 g (1.5 lb.)Camear (with 2 m cable): approx. 451 g (1.0 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language	18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese
General Function	One-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter
Length of Lens Cable	2 m (6.6 ft.) and 8 m (26.2 ft.) optional
Approval
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
Safety	UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005); LOA (IEC/EN 60950-1)
Environment	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Downloads

Additional information

Brand	Hikvision
Lens	3.7mm
Colour	White
Resolution	2 MegaPixel
Technology	IP
Features	Covert, PoE
