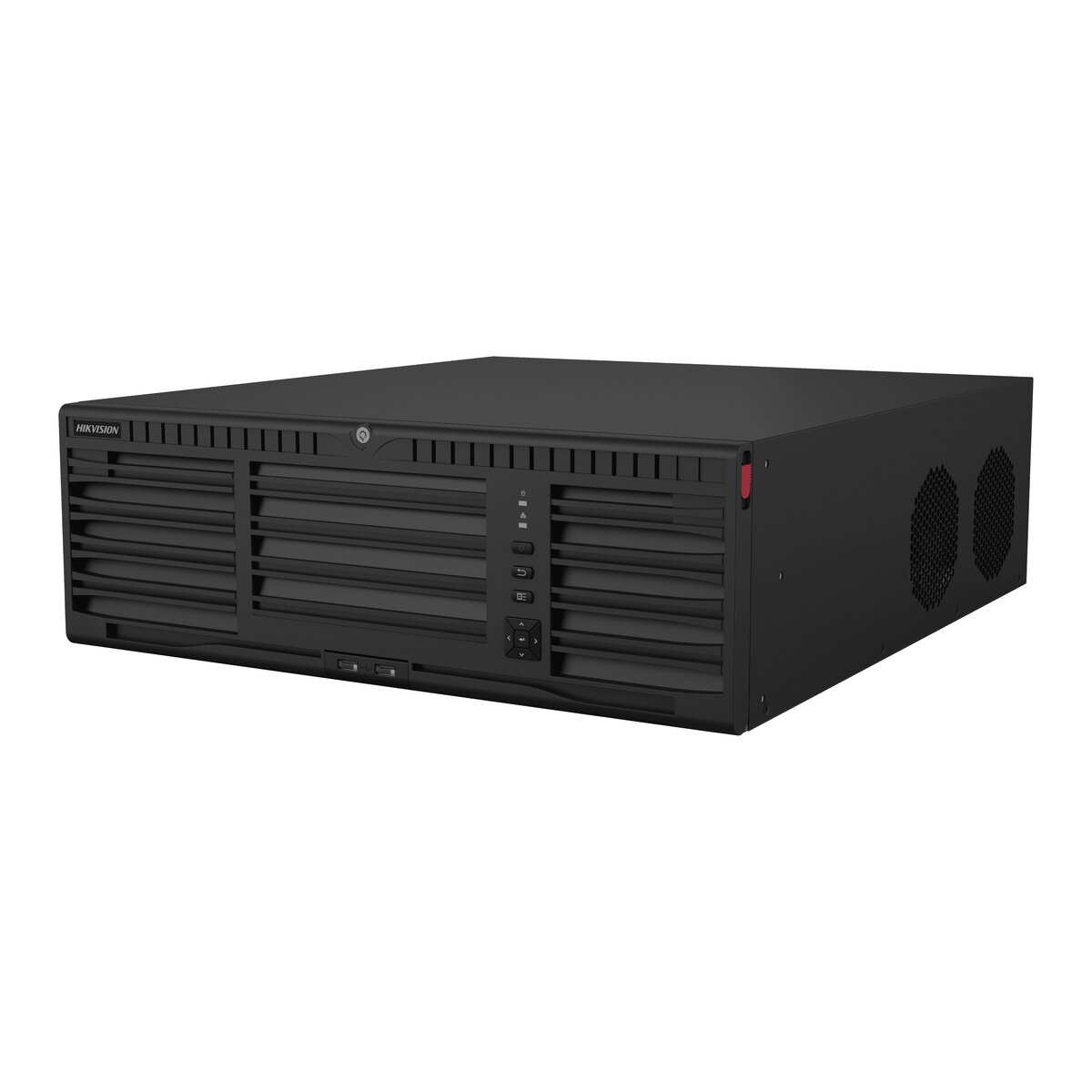

Hikvision 128CH 32MP/8K CCTV NVR Recorder DS-96128NI-M16/R

128-channel IP recording up to 32MP/8K
Incoming bandwidth: 400 Mbps
8K HDMI output for a local monitor
16 SATA bays, up to 16TB per drive

Description

The Hikvision DS-96128NI-M16/R is a 128-channel network video recorder for IP cameras up to 32MP (8K).

It takes 16 SATA hard drives of up to 16TB each, with RAID for protection against a failed disk. No hard drive is included: choose one from our surveillance hard drives.

Key features

128-channel IP recording up to 32MP/8K
Incoming bandwidth: 400 Mbps
8K HDMI output for a local monitor
16 SATA bays, up to 16TB per drive
H.265+ compression for longer recording on the same storage
Free Hik-Connect app for live view and playback on your phone

Need cameras to go with it? See our IP cameras, or send us a message with your camera count and we will check compatibility.

Specifications

Video and Audio
IP Video Input	128-ch
Incoming Bandwidth	400 Mbps
Outgoing Bandwidth	400 Mbps
HDMI 1 Output	8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
HDMI 2 Output	4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output	1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
VGA 2 Output	1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Video Output Mode	HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
Audio Input	1-ch, RCA (2.0 Vp-p, 1 KO)
Audio Output	2-ch, RCA (Linear, 1 KO)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KO, using the audio input)
Decoding
Decoding Format	H.265+/H.265/H.264+/H.264
Recording Resolution	32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Decoding Capability	2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Network
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS
Network Interface	2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
RAID
RAID Type	RAID0, RAID1, RAID5, RAID6, RAID10
Auxiliary Interface
Serial Interface	1 RS-485 (full-duplex), 1 RS-232
SATA	16 SATA interfaces supporting hot-plug
eSATA	1 eSATA interface
Capacity	Up to 16 TB capacity for each disk
Alarm In/Out	16/9
USB Interface	Front panel: 2 x USB 2.0; Rear panel: 2 x USB 3.0
Ctrl 12V	Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V	12 VDC, 1 A power output
General
Power Supply	100 to 240 VAC, 50 to 60 Hz, redundant power supply
Consumption	= 50 W (without HDD)
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10% to 90%
Chassis	3U chassis
Dimension (W x D x H)	445 x 496 x 150 mm (17.5" x 19.5" x 5.9")
Weight	= 12.5 kg (without HDD, 27.6 lb.)
