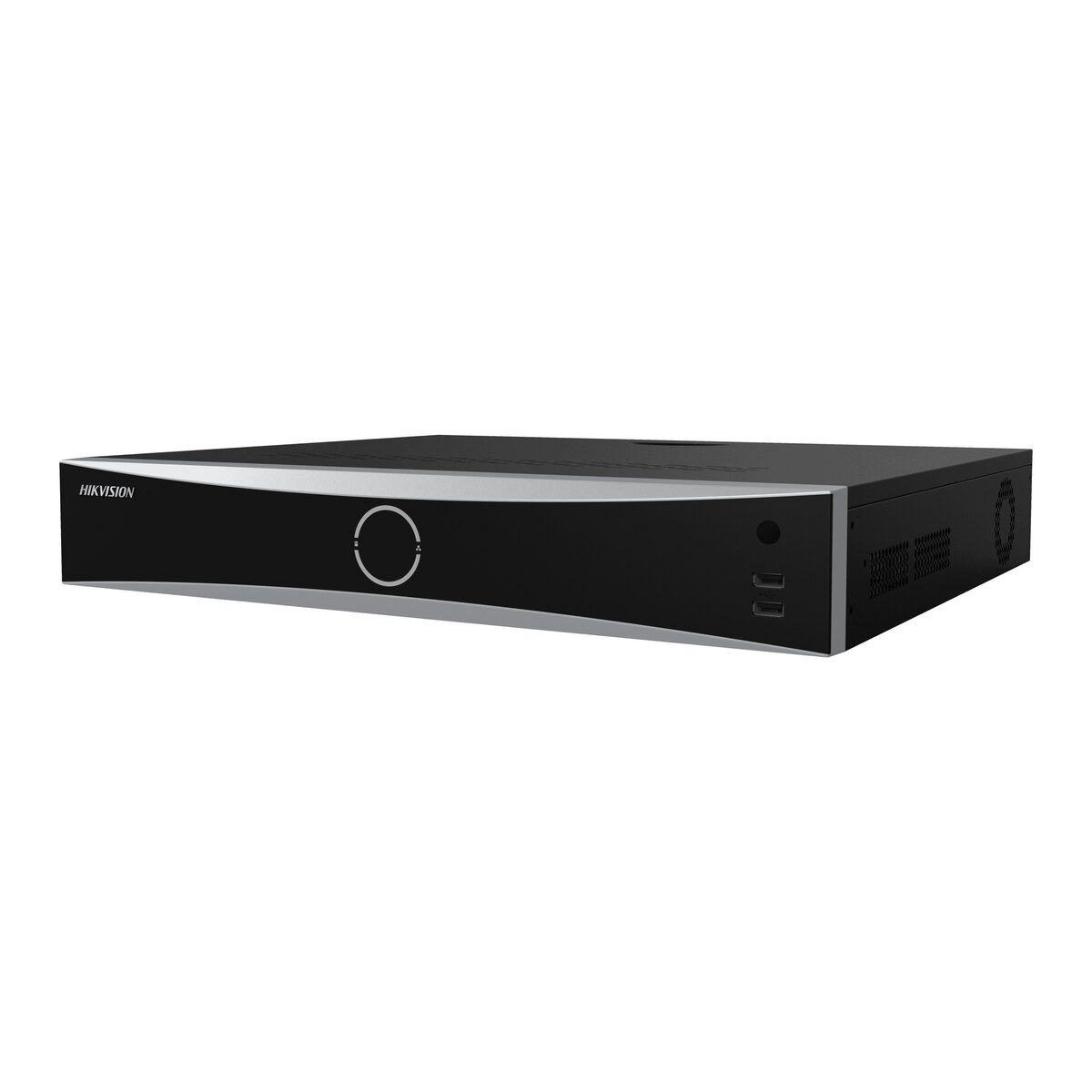

Hikvision 16CH 32MP/8K DeepinMind CCTV NVR Recorder iDS-7716NXI-M4/X

16-channel IP recording up to 32MP/8K
DeepinMind AI: human and vehicle detection on any camera
Incoming bandwidth: 256 Mbps
8K HDMI output for a local monitor

Description

The Hikvision iDS-7716NXI-M4/X is an 16-channel network video recorder for IP cameras up to 32MP (8K).

DeepinMind deep-learning analytics run on the recorder itself, so it can sort people from vehicles and search footage by those targets even with standard cameras. It takes 4 SATA hard drives of up to 14TB each. No hard drive is included: choose one from our surveillance hard drives.

Key features

16-channel IP recording up to 32MP/8K
DeepinMind AI: human and vehicle detection on any camera
Incoming bandwidth: 256 Mbps
8K HDMI output for a local monitor
4 SATA bays, up to 14TB per drive
H.265+ compression for longer recording on the same storage
Free Hik-Connect app for live view and playback on your phone

Need cameras to go with it? See our IP cameras, or send us a message with your camera count and we will check compatibility.

Specifications

Intelligent Analytics
AI by NVR	Facial recognition, perimeter protection, video structurization, throwing objects from building
AI by Camera	Facial recognition, perimeter protection, video structurization, throwing objects from building, motion detection2.0, ANPR, people counting, VCA
Engine	2, each engine can run an intelligent algorithm, engine mode is adjustable
Facial Recognition
Facial Detection and Analytics	Face picture comparison, human face capture, face picture search
Face Picture Library	Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture = 4 MB, total capacity = 20 GB)
Face Picture Comparison (Captured from Camera)	16-ch (8-ch for each engine); Comparison speed: 48 pictures per second
Facial Detection and Analytics Performance	16-ch 2 MP (8-ch for each engine), up to 8 MP
Perimeter Protection
By NVR	24-ch 2 MP (12-ch for each engine), up to 8 MP
By Camera	All channels
Video Structurization
Structured Analysis	12-ch 2 MP (6-ch for each engine), up to 8 MP
Face Picture Library	Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture = 4 MB, total capacity = 20 GB)
Face Picture Comparison	16-ch; Comparison speed: 32 pictures per second
Throwing Objects from Building
By NVR	16-ch 2 MP (8-ch for each engine), up to 8 MP
By Camera	All channels
ANPR
By Camera	All channels
Plate Attributes	Vehicle brand, vehicle colour, vehicle type
Vehicle Attributes	Plate number, license plate colour, license plate type
Video and Audio
IP Video Input	16-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth	256 Mbps
Outgoing Bandwidth	256 Mbps
HDMI 1 Output	8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
HDMI 2 Output	4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA Output	1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Video Output Mode	HDMI1/VGA1 simultaneous output, HDMI1/HDMI2 independent output
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
Audio Output	1-ch, RCA (Linear, 1 KO)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 k O)
Decoding
Decoding Format	H.265/H.265+/H.264/H.264+
Decoding Capability	2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)
Recording Resolution	32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Network
Remote Connection	128
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS
Network Interface	2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA	4 SATA interfaces; 3.5-inch HDD
eSATA	1 eSATA interface
Capacity	Up to 14 TB capacity for each HDD
Serial Interface	1 RS-232, 2 RS-485 (full-duplex), 1 keyboard
USB Interface	Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
Alarm In/Out	16/4
General
Power Supply	100 to 240 VAC, 50 to 60 Hz
Consumption	= 50 W (without HDD)
Working Temperature	-10 to 55° C (14 to 131° F)
Working Humidity	10 to 90%
Dimension (W x D x H)	445 x 400 x71 mm ( 17.5"x 15.7" x 2.8")
Weight	= 5 kg (without HDD, 11 lb.)
