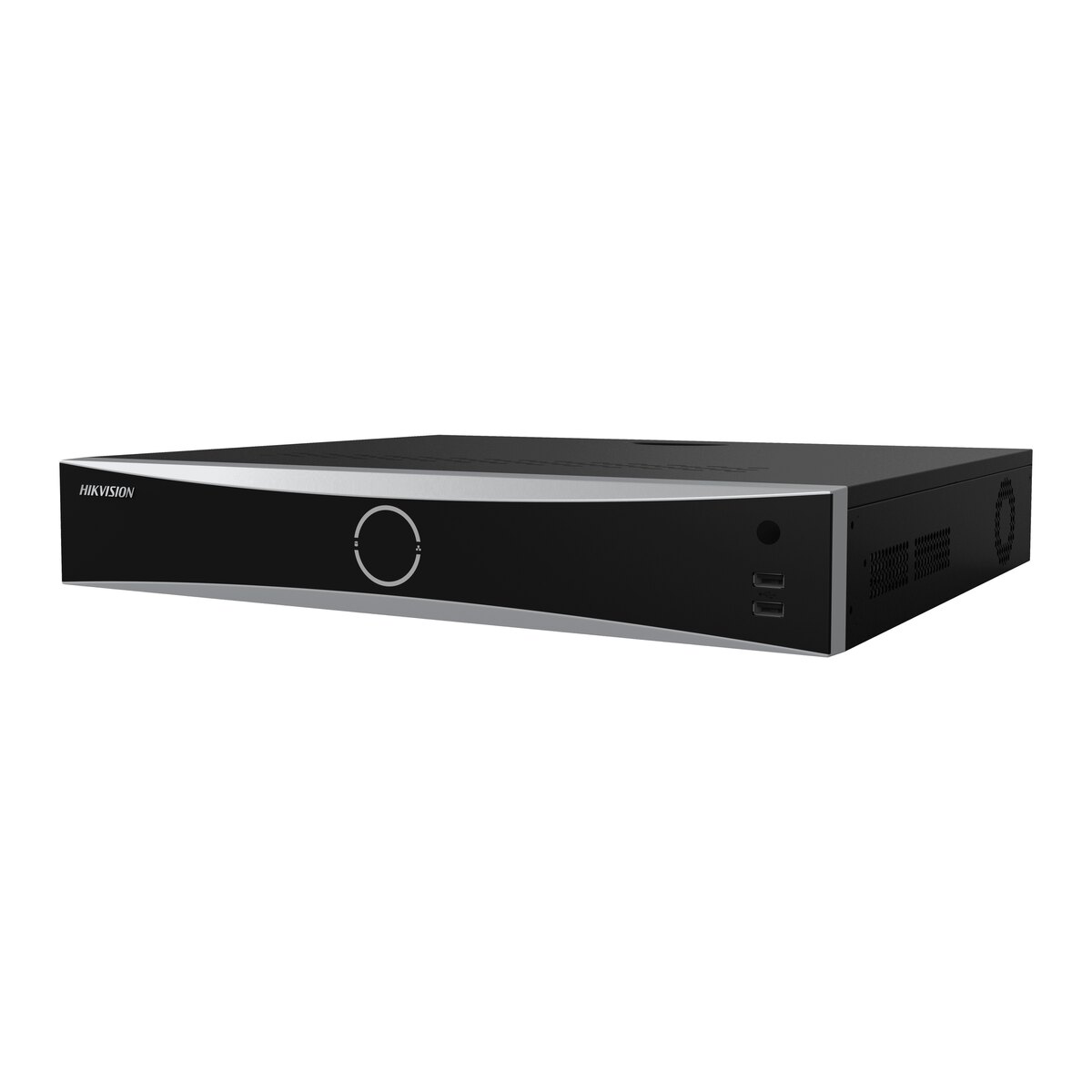

Hikvision 16CH 32MP/8K DeepinMind PoE CCTV NVR Recorder iDS-7716NXI-M4/16P/X
If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products
- 16-channel IP recording up to 32MP/8K
- 16 PoE ports for plug and play camera connection
- DeepinMind AI: human and vehicle detection on any camera
- Incoming bandwidth: 256 Mbps
- Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
- Express delivery 1-2 working days
- Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
- +44 (0) 121 655 014610:00 - 17:00 Mon-Fri
Description
The Hikvision iDS-7716NXI-M4/16P/X is an 16-channel network video recorder for IP cameras up to 32MP (8K), with a built-in 16-port PoE switch so each camera needs only one network cable for power and video.
DeepinMind deep-learning analytics run on the recorder itself, so it can sort people from vehicles and search footage by those targets even with standard cameras. It takes 4 SATA hard drives of up to 14TB each. No hard drive is included: choose one from our surveillance hard drives.
Key features
- 16-channel IP recording up to 32MP/8K
- 16 PoE ports for plug and play camera connection
- DeepinMind AI: human and vehicle detection on any camera
- Incoming bandwidth: 256 Mbps
- 8K HDMI output for a local monitor
- 4 SATA bays, up to 14TB per drive
- H.265+ compression for longer recording on the same storage
- Free Hik-Connect app for live view and playback on your phone
Need cameras to go with it? See our IP cameras, or send us a message with your camera count and we will check compatibility.
Specifications
| Intelligent Analytics | |
|---|---|
| AI by NVR | Facial recognition, perimeter protection, video structurization, throwing objects from building |
| AI by Camera | Facial recognition, perimeter protection, video structurization, throwing objects from building, motion detection2.0, ANPR, people counting, VCA |
| Engine | 2, each engine can run an intelligent algorithm, engine mode is adjustable |
| Facial Recognition | |
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
| Face Picture Library | Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture = 4 MB, total capacity = 20 GB) |
| Face Picture Comparison (Captured from Camera) | 16-ch (8-ch for each engine); Comparison speed: 48 pictures per second |
| Facial Detection and Analytics Performance | 16-ch 2 MP (8-ch for each engine), up to 8 MP |
| Perimeter Protection | |
| By NVR | 24-ch 2 MP (12-ch for each engine), up to 8 MP |
| By Camera | All channels |
| Video Structuralization | |
| Structured Analysis | 12-ch 2 MP (6-ch for each engine), up to 8 MP |
| Face Picture Library | Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture = 4 MB, total capacity = 20 GB) |
| Face Picture Comparison | 16-ch; Comparison speed: 32 pictures per second |
| Throwing Objects from Building | |
| By NVR | 16-ch 2 MP (8-ch for each engine), up to 8 MP |
| By Camera | All channels |
| ANPR | |
| By Camera | All channels |
| Plate Attributes | Vehicle brand, vehicle color, vehicle type |
| Vehicle Attributes | Plate number, license plate color, license plate type |
| Video and Audio | |
| IP Video Input | 16-ch Up to 32 MP resolution *: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI 1 Output | 8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| HDMI 2 Output | 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. |
| Video Output Mode | HDMI1/VGA1 simultaneous output, HDMI1/HDMI2 independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480 |
| Audio Output | 1-ch, RCA (Linear, 1 KO) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k O) |
| VGA Output | 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Decoding | |
| Decoding Format | H.265/H.265+/H.264/H.264+ |
| Decoding Capability | 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps) |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Network | |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| Power | = 200 W |
| Auxiliary Interface | |
| SATA | 4 SATA interfaces; 3.5-inch HDD |
| eSATA | 1 eSATA interface |
| Capacity | Up to 14 TB capacity for each HDD |
| Serial Interface | 1 RS-232, 2 RS-485 (full-duplex), 1 keyboard |
| USB Interface | Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0 |
| Alarm In/Out | 16/4 |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | = 50 W (without HDD and PoE off) |
| Working Temperature | -10 to 55° C (14 to 131° F) |
| Working Humidity | 10 to 90% |
| Dimension (W x D x H) | 445 x 400 x71 mm (17.5"x 15.7" x 2.8") |
| Weight | = 5 kg (without HDD, 11 lb.) |
Downloads
Additional information
| Brand | Hikvision |
|---|---|
| Resolution | 32 MegaPixel |
| Technology | IP |
| HDD Bays | 4 HDD Bays |
| Features | AI Person/Vehicle Detection, PoE (Power over Ethernet) |
| Channels | 16 Channel |
