Hikvision 256CH 32MP/8K CCTV NVR Recorder DS-96256NI-I16

256-channel IP recording up to 32MP/8K
Incoming bandwidth: 768 Mbps
4K HDMI output for a local monitor
16 SATA bays, up to 10TB per drive

Description

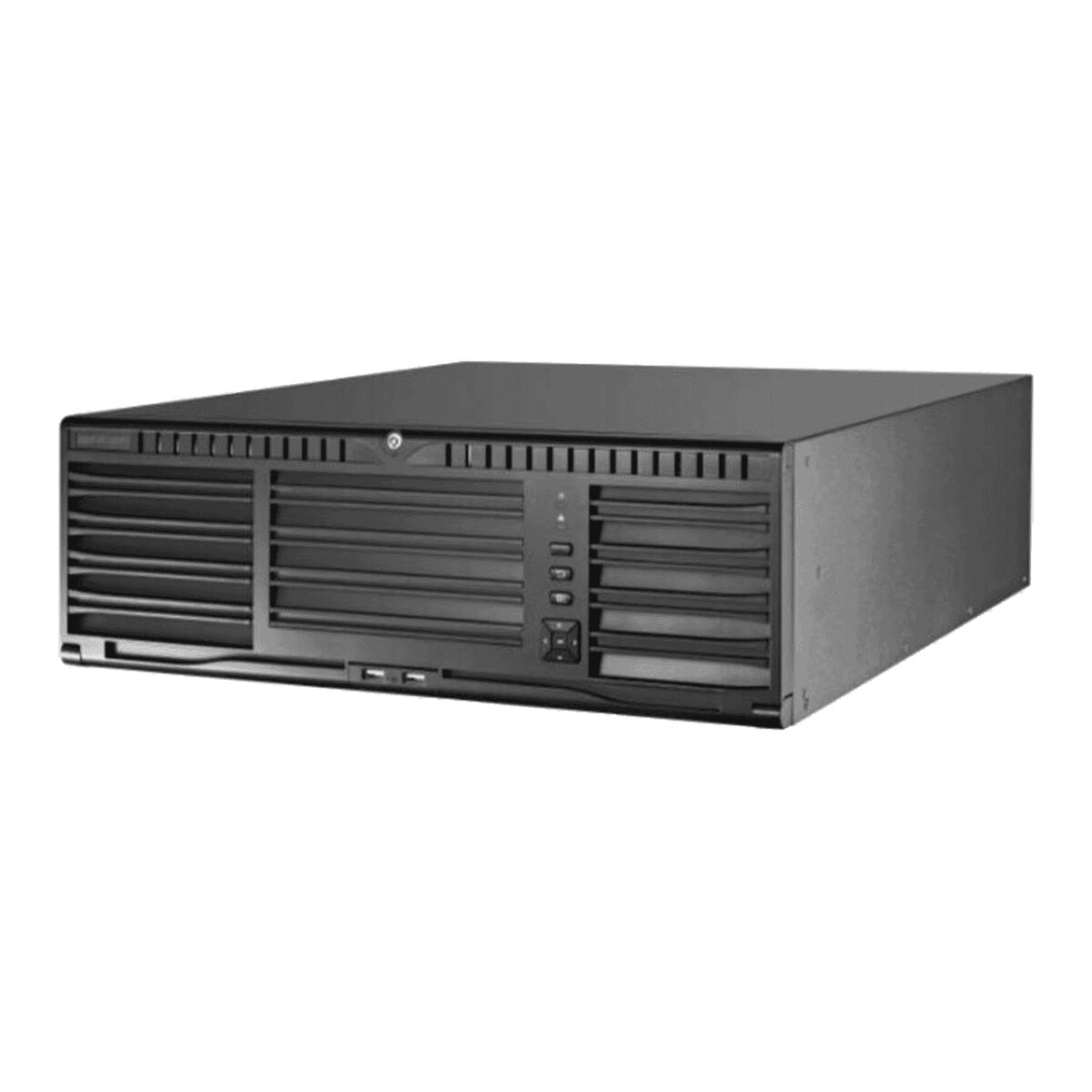

The Hikvision DS-96256NI-I16 is a 256-channel network video recorder for IP cameras up to 32MP (8K).

It takes 16 SATA hard drives of up to 10TB each, with RAID for protection against a failed disk. No hard drive is included: choose one from our surveillance hard drives.

Key features

256-channel IP recording up to 32MP/8K
Incoming bandwidth: 768 Mbps
4K HDMI output for a local monitor
16 SATA bays, up to 10TB per drive
H.265+ compression for longer recording on the same storage
Free Hik-Connect app for live view and playback on your phone

Need cameras to go with it? See our IP cameras, or send us a message with your camera count and we will check compatibility.

Specifications

Video and Audio
IP Video Input	256-ch
Incoming Bandwidth (RAID Mode)	768 Mbps
Outgoing Bandwidth	768 Mbps
Incoming Bandwidth	768 Mbps
Outgoing Bandwidth (RAID mode)	768 Mbps
TLS outgoing bandwidth	128 Mbps, or 64 Mbps (when RAID is enabled)
HDMI Output	Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 x 2160), 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1080p (1920 x 1080)/60Hz, UXGA (1600 x 1200)/60Hz, SXGA (1280 x 1024)/60Hz, 720p (1280 x 720)/60Hz, XGA (1024 x 768)/60Hz
VGA Output	1-ch. Resolution: 1080p (1920 x 1080)/60Hz, UXGA (1600 x 1200)/60Hz, SXGA (1280 x 1024)/60Hz, 720p (1280 x 720)/60Hz, XGA (1024 x 768)/60Hz
LCD Output	Optional: One 7 inch LCD
Audio Output	1-ch. RCA (2.0 Vp-p, 1 K„¦)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 K„¦)
Decoding
Decoding Format	H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
Recording Resolution	32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.
Decoding Capability	1-ch@32 MP (8160 x 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Network
Network Protocol	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Camera Access Protocol	HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
Network Interface	4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
RAID
RAID Type	RAID0, RAID1, RAID5, RAID 6, and RAID10
Auxiliary Interface
SATA	16 SATA interfaces supporting hot-plug
eSATA	1 x eSATA interface
mini SAS	2 x mini SAS interface (optional)
Capacity	Up to 10 TB for each HDD
Serial Interface	RS-232; RS-485; Keyboard
USB Interface	Front Panel: 2 x USB 2.0; Rear Panel: 2 x USB 3.0
Alarm In/Out	16/8
Extension Board	One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.
General
Power Supply	100 to 240 VAC, 50 to 60Hz, 5 A
Consumption	= 140W
Working Temperature	0 °C to + 50 °C (32 °F to 122 °F)
Working Humidity	10% to 90%
Dimension (W x D x H)	442 x 494 x 146 mm (17.4 x 19.4 x 5.7 inch)
Weight	= 16 kg (35.3 lb)
