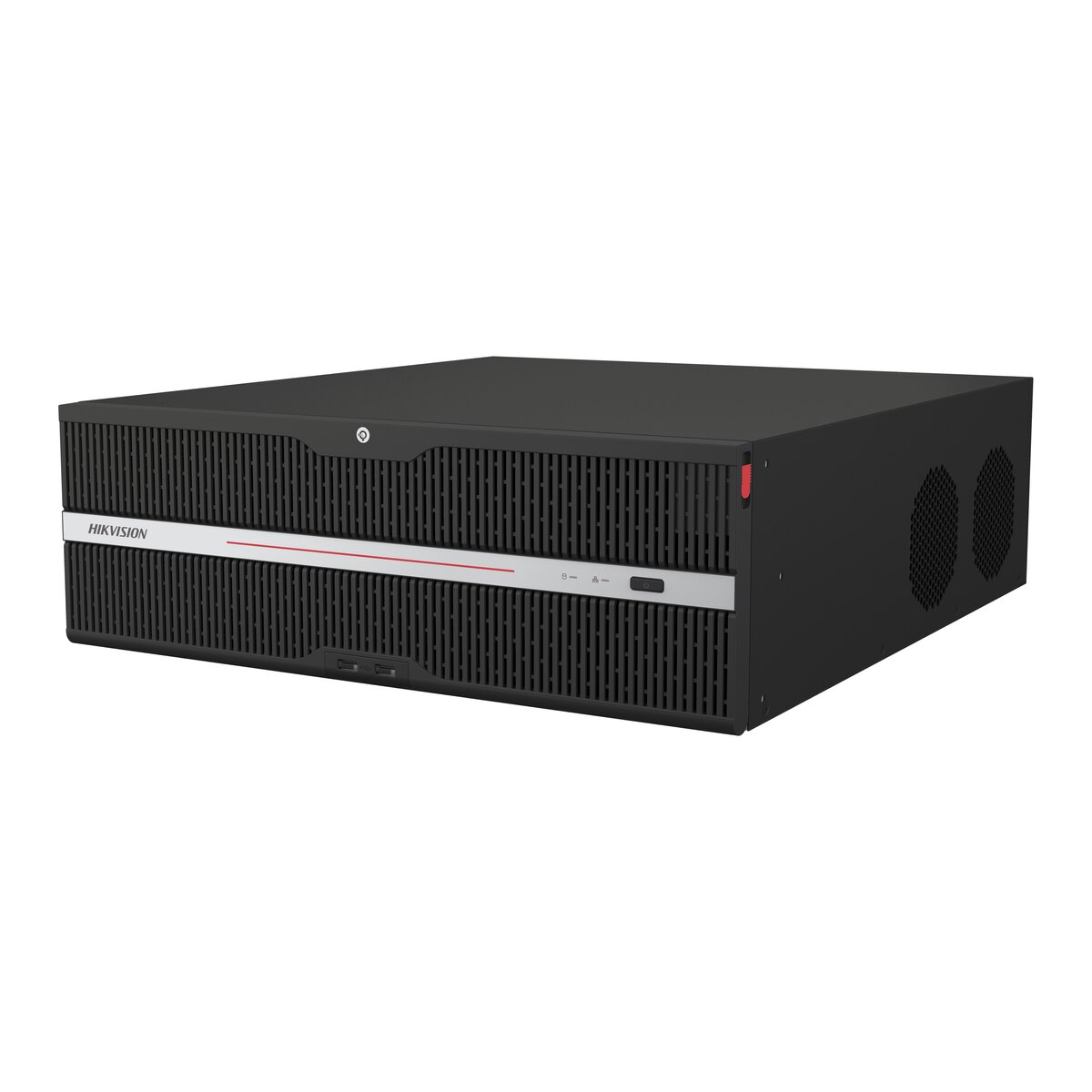

Hikvision 256CH 32MP/8K AcuSense CCTV NVR Recorder DS-96256NXI-S16R

256-channel IP recording up to 32MP
16 SATA bays with RAID and N+M hot spare
Redundant power supply, 3U rack mount
8K HDMI output

Description

The Hikvision DS-96256NXI-S16R is a 256-channel, 3U rack-mount network video recorder from the S series, built for large sites that need one recorder for hundreds of IP cameras. It accepts cameras up to 32MP, takes in up to 1280 Mbps, and drives an 8K monitor from its third HDMI output.

Sixteen drive bays take 3.5-inch disks of up to 20TB each, so the recorder holds up to 320TB before you add an eSATA drive. RAID 0, 1, 5, 6 and 10, plus N+M hot spare, keep recordings safe when a disk fails, and the dual power supplies keep it running if one fails. On the recorder itself, AcuSense analytics handle facial recognition, perimeter protection and video structuralization, and AcuSearch finds people and vehicles across your footage. No hard drives are included: choose them from our surveillance hard drives.

Key features

256 IP camera channels, up to 32MP each
1280 Mbps incoming bandwidth (640 Mbps in RAID mode)
16 SATA bays, up to 20TB per drive, plus eSATA
RAID 0/1/5/6/10 with N+M hot spare
Redundant power supply
4 × 2.5 Gbps network ports
8K HDMI output, with four HDMI and two VGA outputs in total
Facial recognition, perimeter protection and AcuSearch on the recorder

Planning a large system? Send us a message with your camera count and storage target and we will size the drives and confirm compatibility.

Specifications

Intelligent analytics
AI by NVR	Facial recognition, perimeter protection, video structuralization
AI by camera	Facial recognition, perimeter protection, video structuralization, AcuSearch, Motion Detection 2.0, ANPR, people counting, VCA
Face picture library	Up to 64 libraries, up to 300,000 face pictures (each ≤ 4 MB, total ≤ 10 GB)
Face picture comparison	16-ch, 24 pictures per second
Facial detection performance	Simultaneous mode: 8-ch up to 2 MP; independent mode: 4-ch up to 2 MP
AcuSearch	By NVR: up to 32-ch. By camera: all channels, up to 345,600 targets per day
Perimeter protection	By NVR: 8-ch (simultaneous) or 4-ch (independent), up to 2 MP. By camera: all channels
Video structuralization	Simultaneous mode: 8-ch up to 2 MP; independent mode: 4-ch up to 2 MP
Video and audio
IP video input	256-ch, up to 32 MP resolution
Incoming bandwidth	1280 Mbps (640 Mbps in RAID mode)
Outgoing bandwidth	1024 Mbps (512 Mbps in RAID mode)
HDMI 1 / HDMI 2 output	4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 2K (2560 × 1440)/60 Hz, 1080p/60 Hz
HDMI 3 output	8K (7680 × 4320)/30 Hz, 4K/60 Hz, 2K/60 Hz, 1080p/60 Hz
HDMI 4 output	1080p (1920 × 1080)/60 Hz
VGA 1 / VGA 2 output	1080p (1920 × 1080)/60 Hz
HDMI input / loopback	1-ch / 1-ch
Audio output	2-ch, RCA (linear, 1 kΩ)
Two-way audio	1-ch, RCA (2.0 Vp-p, 1 kΩ)
Decoding
Decoding format	H.265, H.265+, H.264, H.264+
Decoding capability	2-ch@32 MP, 2-ch@24 MP, 4-ch@16 MP, 8-ch@8 MP, 16-ch@4 MP, 32-ch@1080p (30 fps)
Synchronous playback	16-ch
Recording resolution	32 MP, 24 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Network
Remote connections	512
Network interface	4 × RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet
Network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF
API	ONVIF (profile S/G), SDK, ISAPI
Camera access protocol	ONVIF (version 2.5), RTSP
Storage and interfaces
SATA	16 × SATA, 3.5-inch HDD, up to 20 TB each
eSATA	1
RAID	RAID 0, 1, 5, 6, 10; N+M hot spare
Serial interface	1 × RS-232, 2 × RS-485 (half-duplex)
USB	Front: 2 × USB 2.0; rear: 4 × USB 3.0
Alarm in/out	32 / 16
IP speakers	Up to 8-ch
General
Power supply	100 to 240 VAC, 50 to 60 Hz, redundant
Consumption	≤ 100 W (without HDD)
Working temperature	-10 to 55 °C
Working humidity	10 to 90%
Dimensions (W × D × H)	442 × 497 × 146 mm (3U)
Weight	≤ 12 kg (without HDD)
Certification	CE, UKCA, IC, CB, RoHS, REACH, WEEE, RCM
