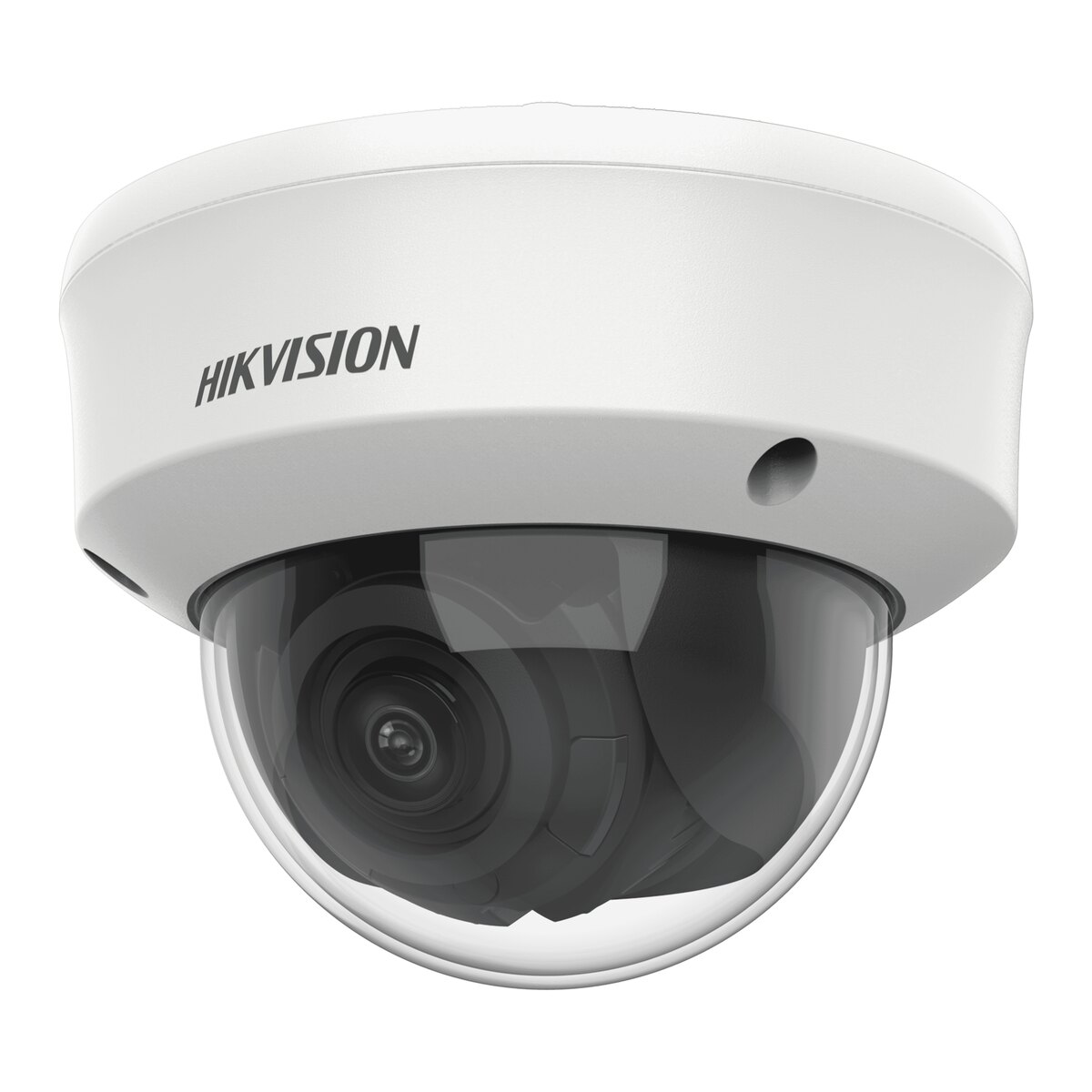

Hikvision 2MP Motorised Varifocal Turbo HD Dome Camera 2.7-13.5mm DS-2CE5AD0T-VPIT3F

If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products

In stockSKU: DS-2CE5AD0T-VPIT3F(2.7-13.5mm)

Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) x 1080 (V)
Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Lens Mount: Î¦14

Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
Express delivery 1-2 working days
Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
+44 (0) 121 655 014610:00 - 17:00 Mon-Fri

Compatible brackets and mounts

Hikvision

Hikvision Vertical Pole Mount DS-1275ZJ-SUS

SKU: DS-1275ZJ-SUS

In stock

Hikvision

Hikvision Corner Mount DS-1276ZJ-SUS

SKU: DS-1276ZJ-SUS

In stock

Description

The Hikvision DS-2CE5AD0T-VPIT3F is a 2MP dome Turbo HD camera with a 2.7-13.5mm lens. The motorised lens zooms and focuses from the recorder or the app, so you can frame the shot once the camera is up. It connects to a Hikvision Turbo HD DVR over standard coax cable.

Key features

Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) x 1080 (V)
Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Lens Mount: Î¦14
Lens Type: 2.7 mm to 13.5 mm varifocal lens
Supplement Light Range: IR: Up to 40 m

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	2 MP CMOS
Signal System	PAL/NTSC
Max. Resolution	1920 (H) x 1080 (V)
Frame Rate	TVI: 1920 x 1080 @ 30 fps, 1920 x 1080 @ 25 fps AHD: 1920 x 1080 @ 30 fps, 1080P @ 25 fps CVI: 1920 x 1080 @ 30 fps, 1080P @ 25 fps CVBS: PAL/NTSC
Min. Illumination	0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Lens Mount	Î¦14
Day & Night	ICR
Angle Adjustment	Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
Lens
Lens Type	2.7 mm to 13.5 mm varifocal lens
Focal Length & FOV	Horizontal FOV: 100° to 30°, vertical FOV: 52° to 17°, diagonal FOV: 116° to 34.5°
Illuminator
Supplement Light Range	IR: Up to 40 m
Day/Night Mode	Auto/Colour/BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
Image Parameters Switch	STD/HIGH-SAT
White Balance	Auto/Manual
Image Enhancement	DWDR, BLC, HLC, Global
Noise Reduction	2D DNR
Language	English
Image Settings	Brightness, Smart IR, Sharpness, AGC
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS
General
Power	12 VDC ± 25%, Max. 5 W
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
Material	Main Body: Metal, Cover: Plastic
Communication	HIKVISION-C
Dimension	Ø 143 mm x 106.7 mm ( Ø 5.62" x 4.19")
Weight	Approx. 630 g (1.39 lb.)
Approval
Protection	IP67

Downloads

Additional information

Brand	Hikvision
Lens	2.7-13.5mm
Colour	White
Resolution	2 MegaPixel
Technology	AHD, Analog (CVBS), CVI, TVI
Features	Varifocal Lens
Camera Type	Dome
Night Vision	Infrared (IR)
