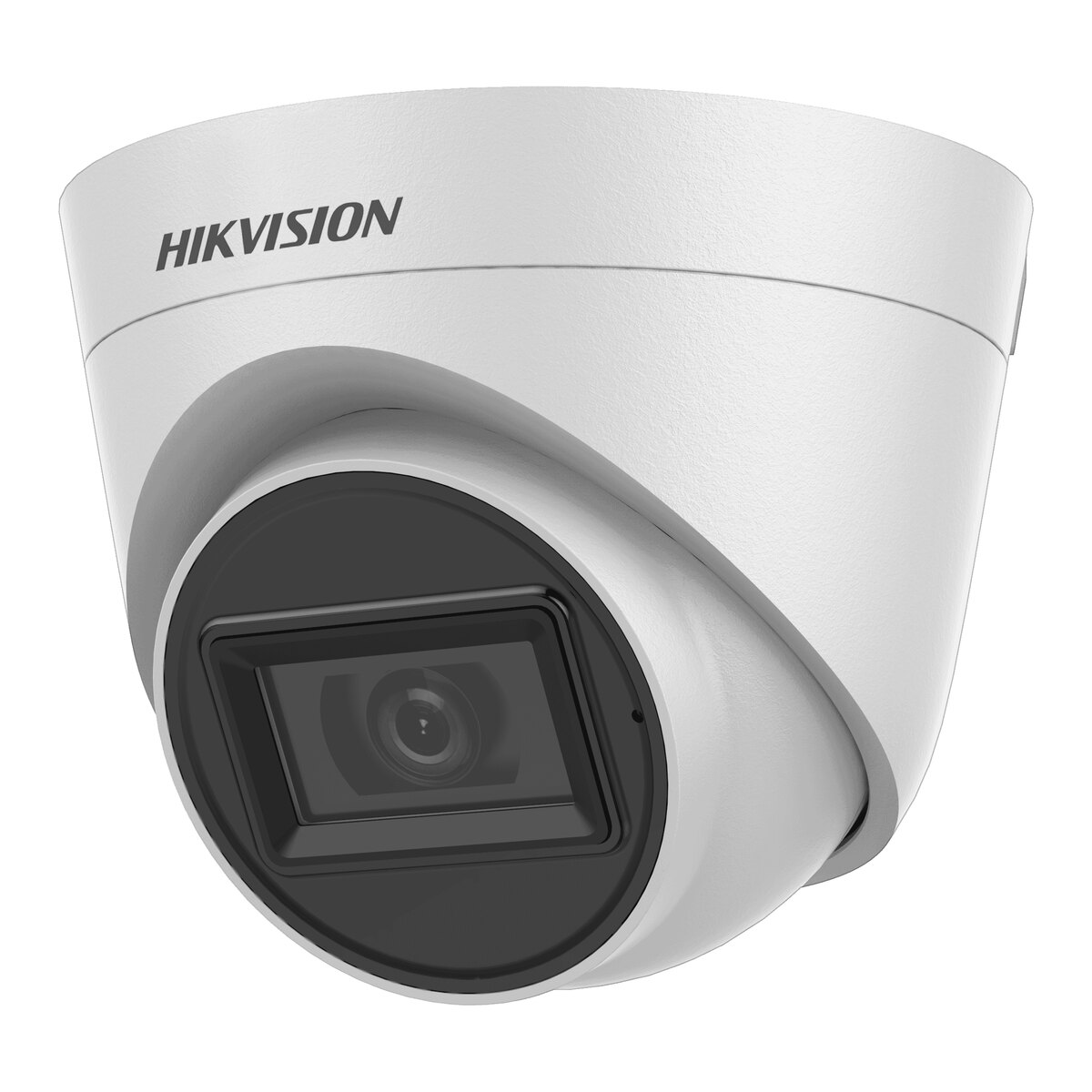

Hikvision 2MP Turbo HD Turret Camera with Mic 2.8mm DS-2CE78D0T-IT3FS

Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) x 1080 (V)
Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Lens Type: 2.8 mm fixed lens

Description

The Hikvision DS-2CE78D0T-IT3FS is a 2MP turret Turbo HD camera with a 2.8mm lens. A built-in microphone records sound with the video. It connects to a Hikvision Turbo HD DVR over standard coax cable.

Key features

Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) x 1080 (V)
Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Lens Type: 2.8 mm fixed lens
Focal Length & FOV: 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
Lens Mount: M12

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	2 MP CMOS
Max. Resolution	1920 (H) x 1080 (V)
Min. Illumination	0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Day & Night	ICR
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal System	PAL/NTSC
Lens
Lens Type	2.8 mm fixed lens
Focal Length & FOV	2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
Lens Mount	M12
Image Parameters Switch	STD/HIGH-SAT
Image Settings	Brightness, Sharpness, Mirror, Smart IR
Frame Rate	TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
Day/Night Mode	Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	Yes
White Balance	Auto/Manual
AGC	Support
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS
General
Material	Main Body: Metal Enclosure: Plastic
Dimension	Î¦ 109.82 mm x 91.03 mm (Î¦ 4.32" x 3.6")
Weight	Approx. 300 g (0.66 lb.)
Operating Condition	€˜-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication	HIKVISION-C
Language	English
Power Supply	12 VDC ± 25%
Consumption	Max. 3.7 W
IR Range	Up to 40 m
Approval
Protection	IP67

Downloads

Additional information

Brand	Hikvision
Lens	2.8mm
Colour	White
Resolution	2 MegaPixel
Technology	AHD, Analog (CVBS), CVI, TVI
Features	Built-in Microphone
Camera Type	Turret
Night Vision	Infrared (IR)
