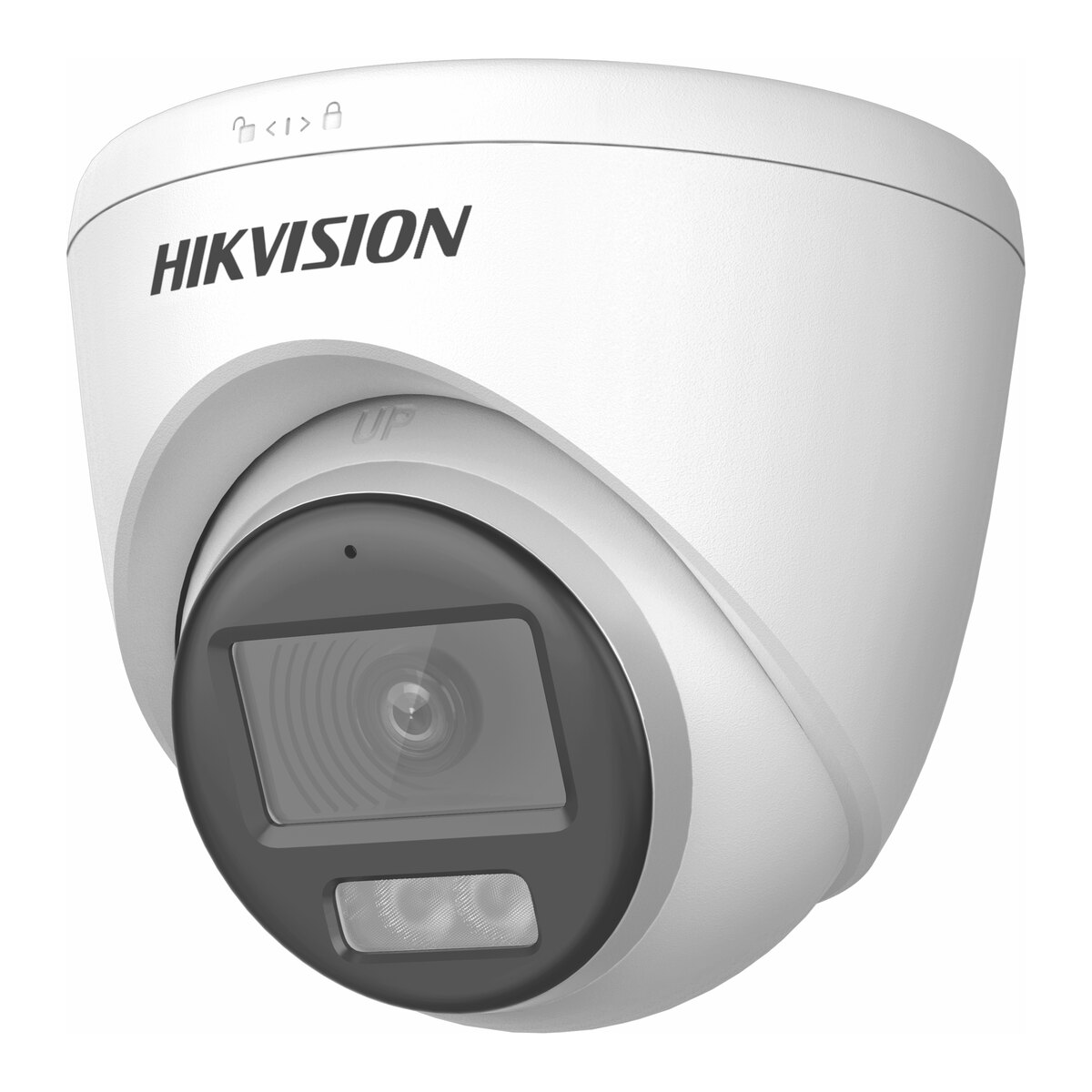

Hikvision 2MP Ultra Low Light Turbo HD Turret Camera 2.8mm DS-2CE72D8T-IT3SE

Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) x 1080 (V)
Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON)
Lens Type: 2.8 mm fixed focal lens

Description

The Hikvision DS-2CE72D8T-IT3SE is a 2MP turret Turbo HD camera with a 2.8mm lens. It connects to a Hikvision Turbo HD DVR over standard coax cable.

Key features

Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) x 1080 (V)
Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON)
Lens Type: 2.8 mm fixed focal lens
Focal Length & FOV: 2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 123°
Lens Mount: M12

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	2 MP CMOS
Max. Resolution	1920 (H) x 1080 (V)
Min. Illumination	0.0005 Lux @ (F1.0, AGC ON)
Shutter Time	PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night	ICR
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System	PAL/NTSC
Slow Shutter	Max. 16 times
Lens
Lens Type	2.8 mm fixed focal lens
Focal Length & FOV	2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 123°
Lens Mount	M12
Illuminator
Supplement Light Type	IR
Supplement Light Range	IR: Up to 40 m
Image Parameters Switch	STD/HIGH-SAT
Image Settings	Brightness, Contrast, Sharpness, Anti-banding, AGC
Frame Rate	TVI: 1080p @30 fps, 1080p @25 fps
Day/Night Mode	Auto
Wide Dynamic Range (WDR)	=130 dB
Privacy Mask	4 programmable privacy masks
Image Enhancement	WDR, BLC, HLC, Global, HLS
Noise Reduction	3D DNR
White Balance	Auto, Manual
Interface
Video Output	1 HD analogue output
Built-in Microphone	Yes
Event
Motion Detection	4 programmable motion areas
General
Material	Main body: Metal, Enclosure: Plastic
Dimension	Ø109.98 mm x 98.27 mm (Ø4.33" x 3.87")
Weight	Approx. 365 g (0.81 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
Communication	HIKVISION-C
Language	English
Power	12 VDC±25%/PoC.at, Max. 5.1 W *You are recommended to use one power adapter to supply the power for one camera.
Approval
Protection	IP67

Downloads

Datasheet (PDF)

Additional information

Brand	Hikvision
Lens	2.8mm
Colour	White
Resolution	2 MegaPixel
Technology	TVI
Features	Built-in Microphone, PoC (Power over Coax)
Camera Type	Turret
Night Vision	Infrared (IR)
