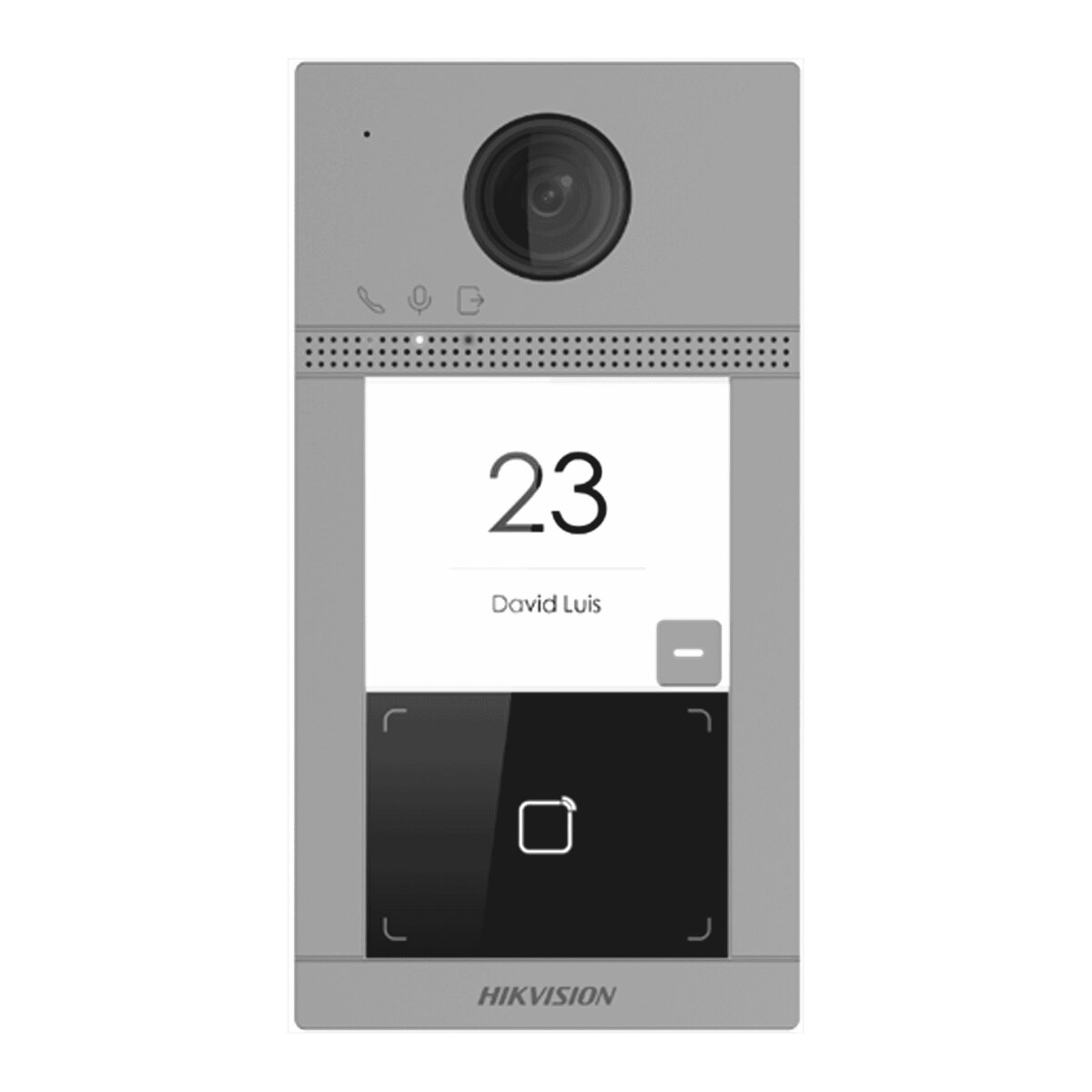

Hikvision 2MP Wi-Fi Metal Villa Door Station, Surface Mount DS-KV8113-WME1(C)/Surface

2MP (1080p) camera
Infrared night vision
Wi-Fi
IP65 weatherproof

Description

A video door station for Hikvision's IP intercom range. Visitors press the call button and you answer from an indoor station or from the Hik-Connect app on your phone.

Key features

2MP (1080p) camera
Infrared night vision
Wi-Fi
IP65 weatherproof
IK08 vandal resistant
Working temperature: -40° C to 53° C (-40° F to 127.4° F)

Not sure which parts your system needs? Send us a message with the door and room layout and we will put the list together.

Specifications

System parameters
Operating system	Embedded Linux operation system
ROM	32 M
RAM	256 M
CPU	Embedded MCU Processor
Video parameters
Lens	1
Resolution	Main stream: 1920 x 1080 Sub stream: 640 x 480
FOV	Horizontal: 124° Vertical: 75°
WDR	Support
Supplement light	IR supplement
Video compression standard	H.264
Audio parameters
Audio compression standard	G.711 U, G.711 A
Audio input	Built-in omnidirectional microphone
Audio output	Built-in loudspeaker (more than 80 dB within 30 cm)
Audio compression bitrate	64 Kbps
Audio quality	Noise suppression and echo cancellation
Volume adjustment	Adjustable
Capacity
User capacity	2000
Card capacity	10000
Linked indoor station capacity	1 (main indoor station)
Sub door station capacity	16
Network parameters
Communication protocol	TCP/IP, RTSP
Wired network	10/100 Mbps self-adaptive Ethernet
Wi-Fi standard	Wi-Fi 802.11 b/g/n
Received frequency	2.4 to 2.4835GHz
Transmitted frequency	2.4 to 2.4835 GHz
Bandwidth	20/40 MHz
Frequency power	802.11b:15 dBm +/- 1.5 dBm 802.11g:15 dBm +/- 1.5 dBm 802.11n(ht20):14 dBm +/- 1.5 dBm 802.11n(ht40):12 dBm +/- 1.5 dBm
Authentication
Card reading frequency	13.56 MHz
Device interfaces
Alarm input	4
Network interface	1
TAMPER	1
Exit button	2 Max.
RS-485	1
TF card	1(Reserved)
Lock control	2
Door contact input	2
Power interface	1
General
Button	1
Installation	Surface mounting
Indicator	3
Weight	380 g
Protective level	IP65, IK08
Working temperature	-40° C to 53° C (-40° F to 127.4° F)
Working humidity	10% to 95%
Dimensions	174 mm x 91 mm x 29 mm
Application environment	Outdoor
Power consumption	: 10 W
Language	English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
