Hikvision 32CH 32MP/8K CCTV NVR Recorder DS-9632NI-M8
If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products
- 32-channel IP recording up to 32MP/8K
- Incoming bandwidth: 320 Mbps
- 8K HDMI output for a local monitor
- 8 SATA bays, up to 14TB per drive
- Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
- Express delivery 1-2 working days
- Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
- +44 (0) 121 655 014610:00 - 17:00 Mon-Fri
Description

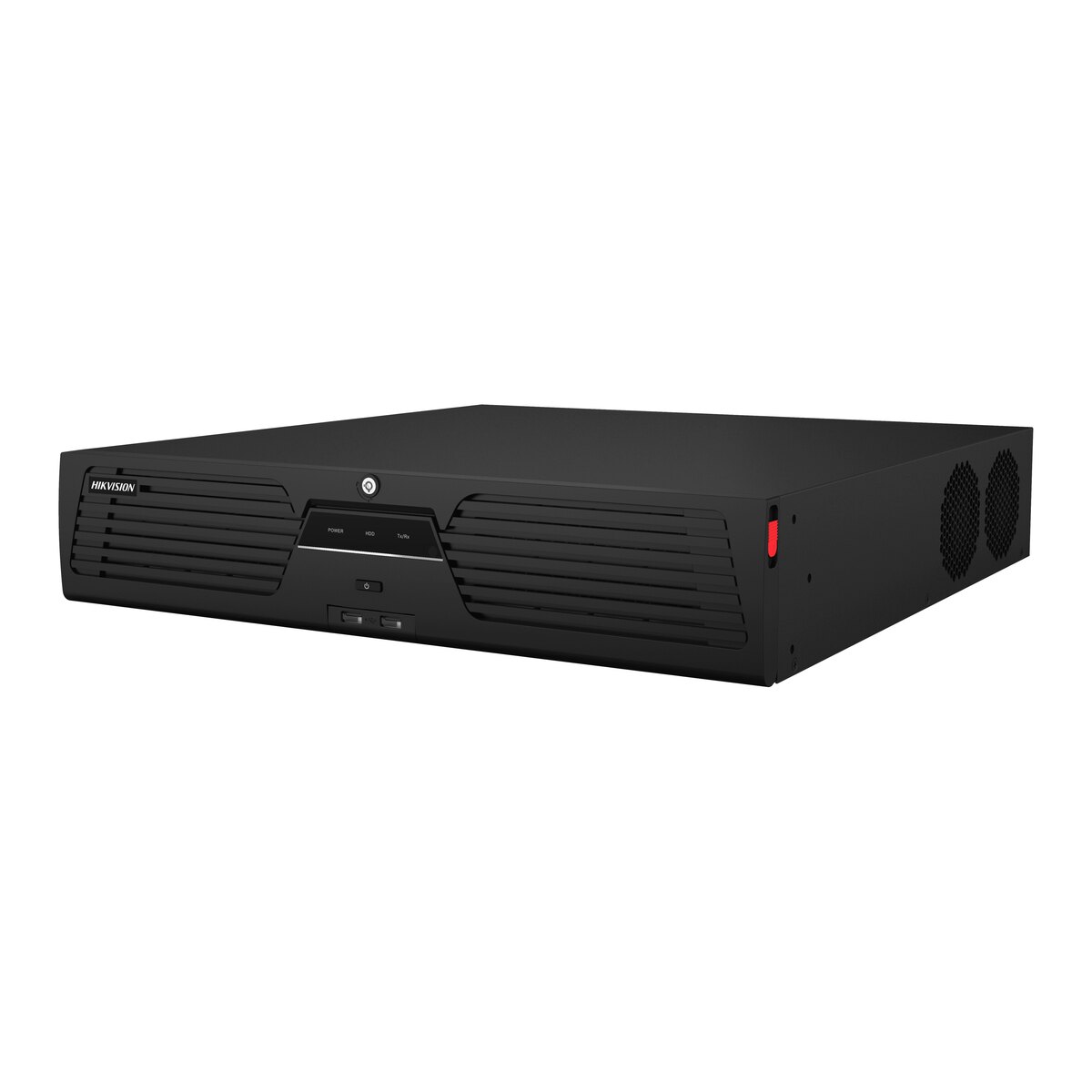

The Hikvision DS-9632NI-M8 is a 32-channel network video recorder for IP cameras up to 32MP (8K).
It takes 8 SATA hard drives of up to 14TB each, with RAID for protection against a failed disk. No hard drive is included: choose one from our surveillance hard drives.
Key features
- 32-channel IP recording up to 32MP/8K
- Incoming bandwidth: 320 Mbps
- 8K HDMI output for a local monitor
- 8 SATA bays, up to 14TB per drive
- H.265+ compression for longer recording on the same storage
- Free Hik-Connect app for live view and playback on your phone
Need cameras to go with it? See our IP cameras, or send us a message with your camera count and we will check compatibility.
Specifications
| Video and Audio | |
|---|---|
| IP Video Input | 32-ch |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI 1 Output | 8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| HDMI 2 Output | 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. |
| VGA 1 Output | 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| VGA 2 Output | 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output Mode | HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480 |
| Audio Output | 2-ch, RCA (Linear, 1 KO) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KO, using the audio input) |
| Decoding | |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding Capability | 2-ch@32 MP (30 fps)/8-ch@8 MP (30 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps) |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Network | |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| RAID | |
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Auxiliary Interface | |
| Serial Interface | 1 RS-485 (full-duplex), 1 RS-232 |
| SATA | 8 SATA interfaces |
| eSATA | 1 eSATA interface |
| Capacity | Up to 14 TB capacity for each disk |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2 x USB 2.0; Rear panel: 2 x USB 3.0 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. |
| DC 12V | 12 VDC, 1 A power output |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | = 50 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 2U chassis |
| Dimension (W x D x H) | 445 x 465 x 92 mm (17.5"x 18.3" x 3.6") |
| Weight | = 10 kg (without HDD, 22 lb.) |
Downloads
Additional information
| Brand | Hikvision |
|---|---|
| Resolution | 32 MegaPixel |
| Technology | IP |
| HDD Bays | 8 HDD Bays |
| Channels | 32 Channel |
