Hikvision 32CH 32MP/8K PoE CCTV NVR Recorder DS-7732NI-M4/16P

32-channel IP recording up to 32MP/8K
16 PoE ports for plug and play camera connection
Incoming bandwidth: 320 Mbps
8K HDMI output for a local monitor

Description

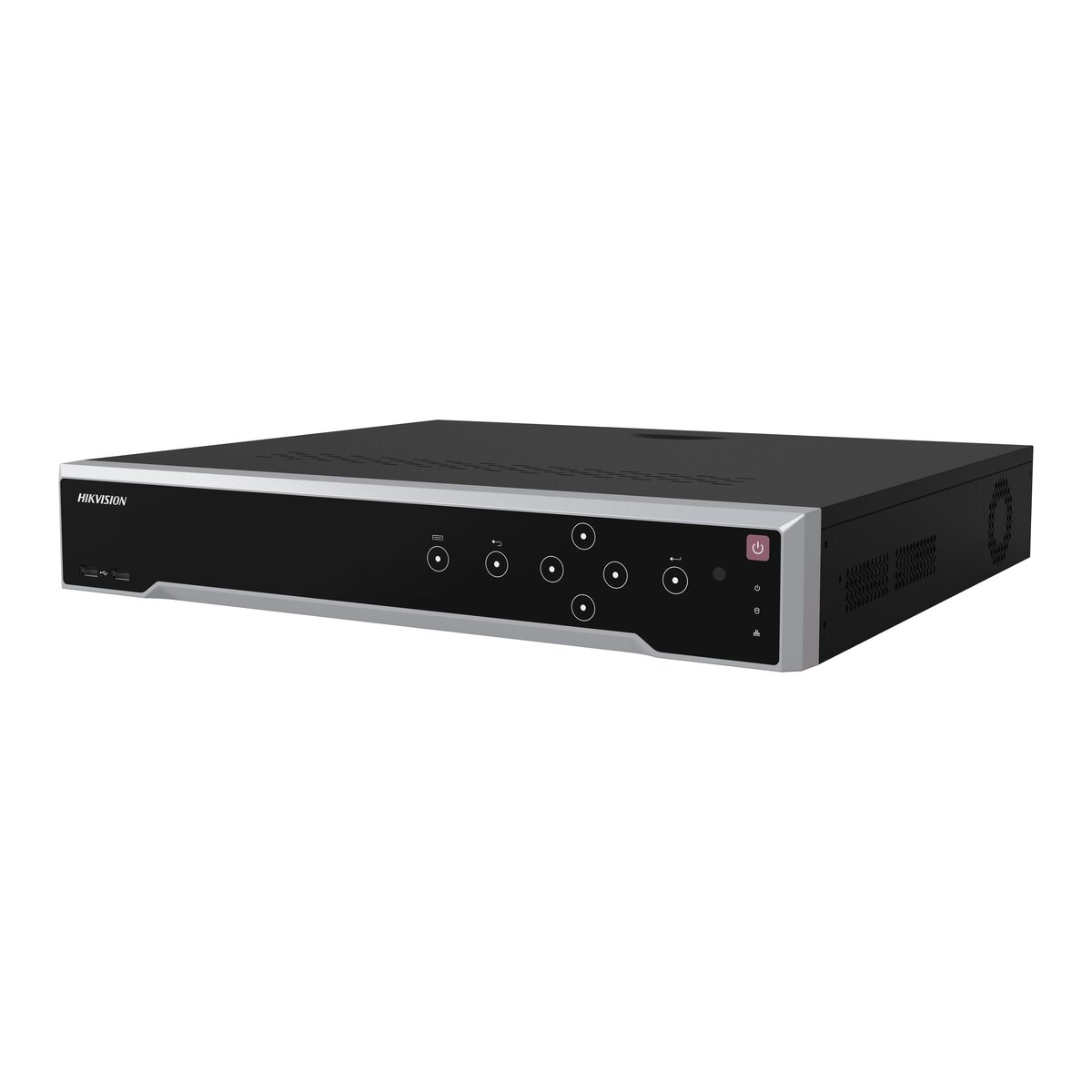

The Hikvision DS-7732NI-M4/16P is a 32-channel network video recorder for IP cameras up to 32MP (8K), with a built-in 16-port PoE switch so each camera needs only one network cable for power and video.

It takes 4 SATA hard drives of up to 14TB each. No hard drive is included: choose one from our surveillance hard drives.

Key features

32-channel IP recording up to 32MP/8K
16 PoE ports for plug and play camera connection
Incoming bandwidth: 320 Mbps
8K HDMI output for a local monitor
4 SATA bays, up to 14TB per drive
H.265+ compression for longer recording on the same storage
Free Hik-Connect app for live view and playback on your phone

Need cameras to go with it? See our IP cameras, or send us a message with your camera count and we will check compatibility.

Specifications

Video and Audio
IP Video Input	32-ch Up to 32 MP resolution *: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	400 Mbps
HDMI 1 Output	8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
HDMI 2 Output	4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
VGA Output	1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Video Output Mode	HDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
Audio Output	1-ch, RCA (Linear, 1 KO)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KO, using the audio input)
Decoding
Decoding Format	H.265+/H.265/H.264+/H.264
Recording Resolution	32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Decoding Capability	2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
Dual-Stream Recording	Support
Stream Type	Video, Video & Audio
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network
Remote Connection	128
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP„¢, HTTP, HTTPS
Network Interface	1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface	16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power	= 200 W
RAID
RAID Type	N/A
Auxiliary Interface
eSATA	1 eSATA interface
SATA	4 SATA interfaces
Capacity	Up to 14 TB capacity for each HDD
Serial Interface	2 RS-485 (half-duplex), 1 RS-232
Alarm In/Out	16/9
USB Interface	Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
Ctrl 12V	Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V	12 VDC, 1 A power output
General
Power Supply	100 to 240 VAC, 50 to 60 Hz
Consumption	= 15 W (without HDD and PoE off)
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10% to 90%
Chassis	19-inch rack-mounted 1.5U chassis
Dimension (W x D x H)	445 x 400 x 75 mm ( 17.5"x 15.7" x 3.0")
Weight	= 5 kg (without HDD, 11 lb.)
