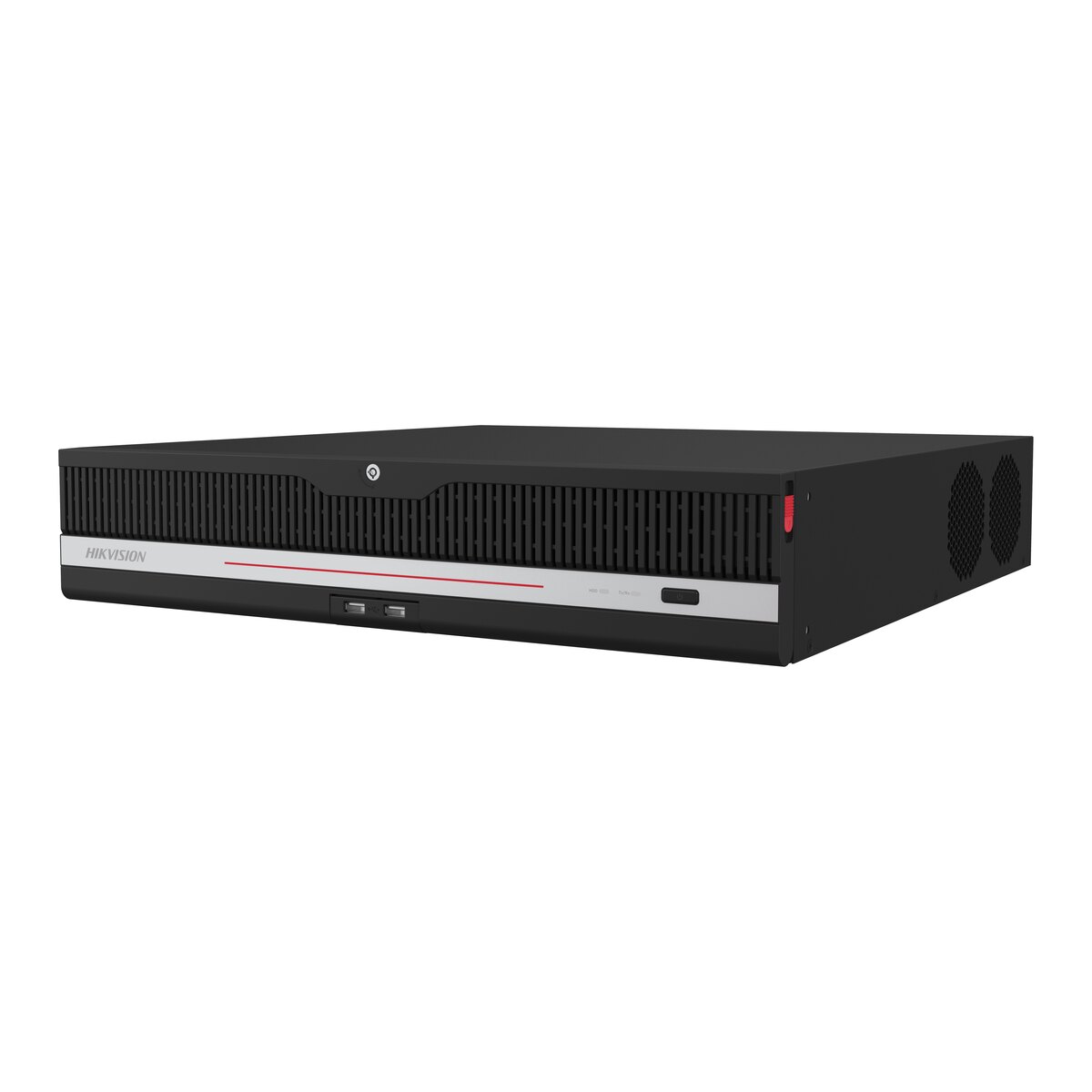

Hikvision 32CH 32MP/8K DeepinMind AI CCTV NVR Recorder iDS-9632NXI-M8/AI(B)
If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products
- 32-channel IP recording up to 32MP
- DeepinMind AI analytics run on the recorder
- 8 SATA bays with RAID
- 8K HDMI output
- Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
- Express delivery 1-2 working days
- Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
- +44 (0) 121 655 014610:00 - 17:00 Mon-Fri
Description
The Hikvision iDS-9632NXI-M8/AI(B) is a 32-channel DeepinMind network video recorder that runs deep-learning analytics itself, so ordinary IP cameras gain AI detection without being replaced. It accepts cameras up to 32MP, takes in up to 320 Mbps and has an 8K HDMI output.
It arrives with an AI algorithm package already installed: facial recognition, people counting, PPE checks for hard hats and hi-vis vests, vehicle make, colour and type, fire and smoke detection, blocked fire escapes, falls, fights and gatherings, plus perimeter rules such as line crossing and intrusion. Up to 16 further models can be loaded through Hikvision’s AI Open Platform. Eight drive bays take disks of up to 16TB each with RAID 0, 1, 5, 6 and 10. No hard drives are included: choose them from our surveillance hard drives.
Key features
- 32 IP camera channels, up to 32MP each
- DeepinMind AI on the recorder: works with standard cameras
- Pre-installed analytics for faces, people counting, PPE, vehicles, fire and smoke, and behaviour
- AI Open Platform: up to 16 custom models
- 8 SATA bays, up to 16TB per drive, with RAID 0/1/5/6/10
- 320 Mbps incoming bandwidth
- 8K HDMI output
Planning a large system? Send us a message with your camera count and storage target and we will size the drives and confirm compatibility.
Specifications
| Intelligent analytics | |
|---|---|
| Pre-installed AI: human | Facial recognition; people counting (regional, statistics); PPE: safety helmet and reflective vest detection |
| Pre-installed AI: vehicle | Vehicle attributes (brand, colour, type); non-motorised vehicle detection (motorcycles, bicycles) |
| Pre-installed AI: dangerous event | Fire and smoke detection; occupation of fire escape |
| Pre-installed AI: behaviour | Falling down, people gathering, fast moving, physical conflict; phone use, sleeping on duty, absence, occupancy limit, overstaying; intrusion, line crossing, region entrance and exit |
| AI Open Platform | Up to 16 models (detection, classification or mixed) |
| Engines | 3 × KT2 (2 for live video analysis, 1 for large-model secondary analysis) |
| Live video analysis | Up to 4-ch per engine (4-ch@4 MP, 2-ch@6 MP or 1-ch@8 MP) |
| Auto-switch video analysis | Up to 16-ch per engine, switch time 10 to 3600 s |
| Scheduled capture analysis | Up to 16-ch per engine, interval 3 to 3600 s |
| Offline picture analysis | 4 images per GPU per second (1 per second with the large model) |
| Video and audio | |
| IP video input | 32-ch, up to 32 MP (up to 8-ch at 32 MP/24 MP in ultra HD mode) |
| Incoming bandwidth | 320 Mbps |
| Outgoing bandwidth | 400 Mbps |
| HDMI 1 output | 8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 2K (2560 × 1440)/60 Hz, 1080p/60 Hz |
| HDMI 2 output | 4K (3840 × 2160)/60 Hz, 2K (2560 × 1440)/60 Hz, 1080p/60 Hz (1080p max when HDMI 1 is at 8K) |
| VGA 1 / VGA 2 output | 1080p (1920 × 1080)/60 Hz |
| Video output mode | HDMI 1/VGA 1 simultaneous, HDMI 2/VGA 2 simultaneous |
| Audio output | 1-ch, RCA (linear, 1 kΩ) |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Decoding | |
| Decoding format | H.265, H.265+, H.264, H.264+ |
| Decoding capability | Up to 2-ch@32 MP, 2-ch@24 MP, 4-ch@12 MP, 8-ch@8 MP, 16-ch@4 MP, 32-ch@1080p |
| Synchronous playback | 16-ch |
| Recording resolution | 32 MP, 24 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Network | |
| Remote connections | 128 |
| Network interface | 2 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet |
| Network protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| API | ONVIF (profile S/G), SDK, ISAPI |
| Storage and interfaces | |
| SATA | 8 × SATA, 3.5-inch HDD, up to 16 TB each |
| eSATA | 1 |
| RAID | RAID 0, 1, 5, 6, 10 |
| Serial interface | 1 × RS-232, 1 × RS-485 (full-duplex) |
| USB | Front: 2 × USB 2.0; rear: 2 × USB 3.0 |
| Alarm in/out | 16 / 9 |
| Power outputs | 12 VDC 1 A; switched 12 VDC 1 A (driven by alarm output 9) |
| General | |
| Power supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working temperature | -10 to 55 °C |
| Working humidity | 10 to 90% |
| Dimensions (W × D × H) | 442 × 460 × 88 mm (2U) |
| Weight | ≤ 9 kg (without HDD) |
Downloads
Additional information
| Brand | Hikvision |
|---|---|
| Resolution | 32 MegaPixel |
| Technology | IP |
| HDD Bays | 8 HDD Bays |
| Channels | 32 Channel |
| Features | AI Person/Vehicle Detection |
