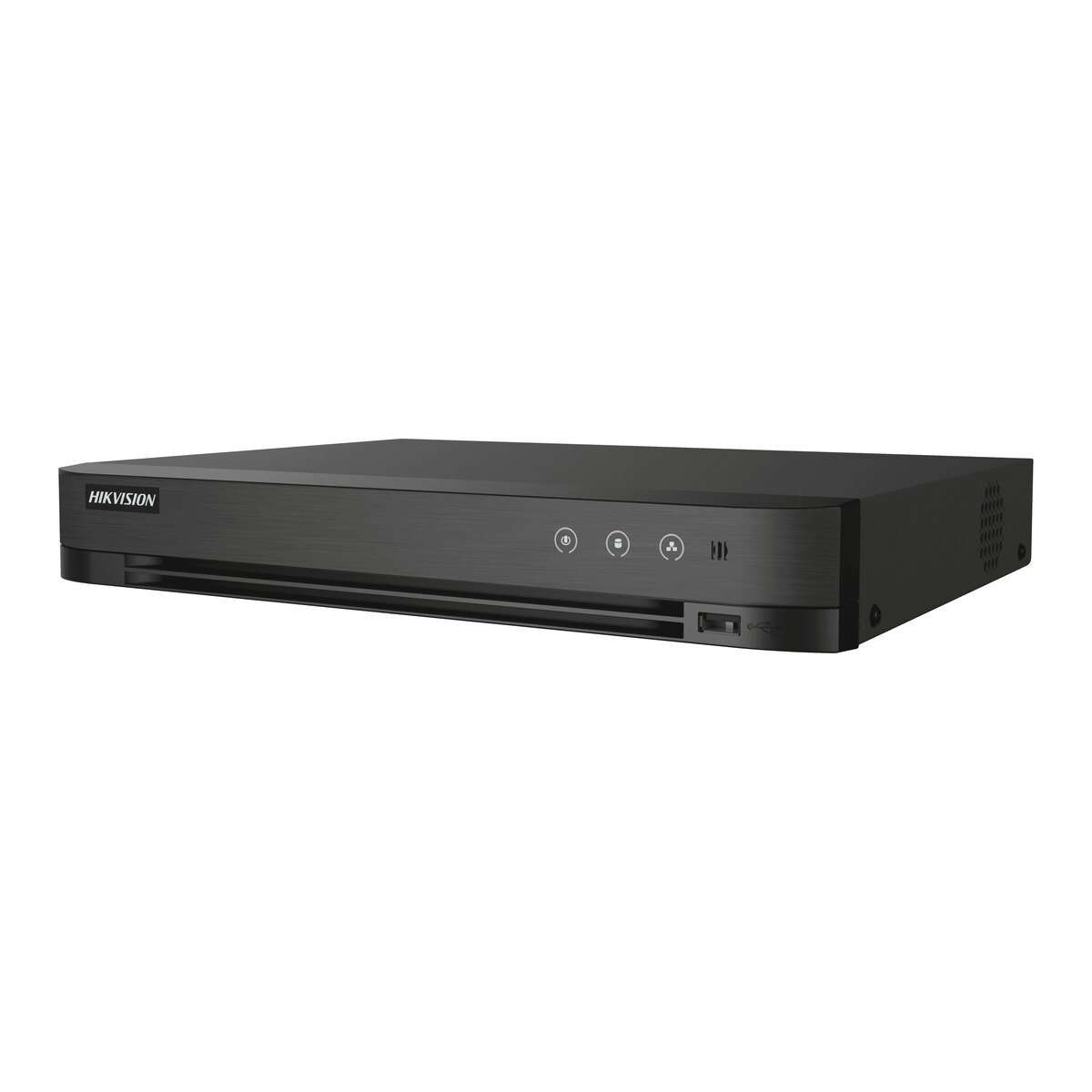

Hikvision 4CH 8MP/4K AcuSense 5-in-1 HD CCTV DVR Recorder iDS-7204HUHI-M1/XT

4-channel 5-in-1 HD recording up to 8MP/4K
AcuSense human and vehicle alerts that cut false alarms
1080p HDMI output for a local monitor
1 SATA bay, up to 10TB per drive

Description

The Hikvision iDS-7204HUHI-M1/XT is a 4-channel Turbo HD digital video recorder for HD-TVI, AHD, HD-CVI and analogue cameras, with extra channels for IP cameras.

AcuSense filters motion alerts down to people and vehicles, so a swaying tree or passing cat no longer fills your phone with notifications. It takes one SATA hard drive of up to 10TB each. No hard drive is included: choose one from our surveillance hard drives.

Key features

4-channel 5-in-1 HD recording up to 8MP/4K
AcuSense human and vehicle alerts that cut false alarms
1080p HDMI output for a local monitor
1 SATA bay, up to 10TB per drive
H.265+ compression for longer recording on the same storage
Free Hik-Connect app for live view and playback on your phone

Need cameras to go with it? See our analog cameras, or send us a message with your camera count and we will check compatibility.

Specifications

Facial Recognition
Face Picture Library	Up to 16 face picture libraries
Face Picture Comparison	Face picture comparison, face picture search; 2-ch face picture comparison alarm (HD analogue camera)
Perimeter Protection
Human/Vehicle Analysis	Up to 4-ch
Video and Audio
IP Video Input	4-ch (up to 8-ch), each up to 8 MP
Analog Video Input	4-ch BNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
HDMI Output	1-ch, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz HDMI/VGA simultaneous output
VGA Output	1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz HDMI/VGA simultaneous output
CVBS Input	PAL/NTSC
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
HDTVI Input	8 MP(3840 x 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328×1504)@20fps,5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input	5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
HDCVI Input	8 MP(3840 x 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
Audio Output	1-ch, RCA (Linear, 1 KO)
Audio Input	1-ch, RCA (2.0 Vp-p, 1 KO):4-ch via coaxial cable
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KO) (using the first audio input)
Recording
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate	32 Kbps to 10 Mbps
Dual-stream	Support main stream or sub stream
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bitrate	64 Kbps
Network
Total Bandwidth	96 Mbps
Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP„¢, HTTPS, ONVIF
Remote Connection	32
Network Interface	1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA	1 SATA interface
Capacity	up to 10 TB capacity for each disk
Serial Interface	RS-485 (half-duplex)
USB Interface	Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0
Alarm In/Out	N/A
General
Power Supply	12 VDC, 1.5 A
Consumption	= 10 W
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10% to 90%
Dimension (W x D x H)	319 x 236 x 48 mm (12.6 x 9.3 x 1.9 inch)
Weight	= 1.16 kg (2.6 lb)
