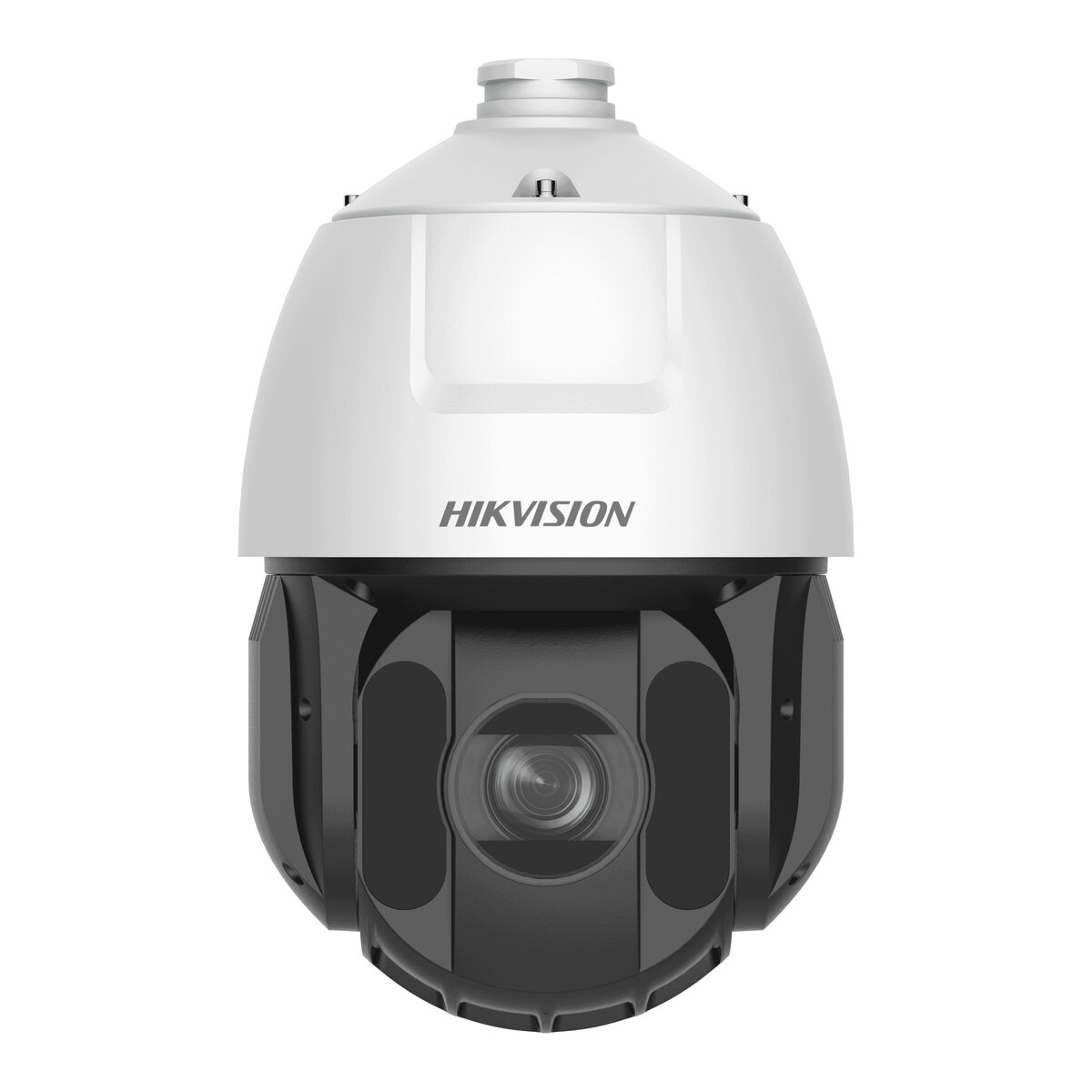

Hikvision 4MP 25x PTZ Network Camera DS-2DE5425IWG-4G

Image Sensor: 1/2.8" progressive scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: color: 0.05Lux @ (F1.6,AGC ON)||B/W: 0.01Lux @(F1.6,AGC ON)||0 Lux with IR
Zoom: 25 × optical,16 × digital

Description

The Hikvision DS-2DE5425IWG-4G is a 4MP 25x zoom PTZ network camera. It records to a Hikvision NVR and can be viewed from anywhere in the Hik-Connect app.

Key features

Image Sensor: 1/2.8" progressive scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: color: 0.05Lux @ (F1.6,AGC ON)||B/W: 0.01Lux @(F1.6,AGC ON)||0 Lux with IR
Zoom: 25 × optical,16 × digital
Focal Length: 4.8 mm~120 mm
Zoom Speed: approx.3.6s

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	1/2.8" progressive scan CMOS
Max. Resolution	2560 × 1440
Min. Illumination	color: 0.05Lux @ (F1.6,AGC ON)\|\|B/W: 0.01Lux @(F1.6,AGC ON)\|\|0 Lux with IR
Shutter Speed	1 s~1/30,000 s
Day & Night	IR cut filter
Zoom	25 × optical,16 × digital
Slow Shutter	yes
Lens
Focal Length	4.8 mm~120 mm
FOV	Horizontal field of view: 55° to 2.4° (wide-tele),Vertical field of view: 33° to 1.4° (wide-tele),Diagonal field of view: 61.5° to 2.8° (wide-tele)
Focus	semi-auto\|\|manual\|\|auto
Aperture	F1.6
Zoom Speed	approx.3.6s
Illuminator
Supplement Light Type	IR
Supplement Light Range	IR distance: up to 150 m
PTZ
Movement Range (Pan)	360°
Movement Range (Tilt)	-15° to 90° (auto flip)
Pan Speed	pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
Tilt Speed	tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Pan	yes
Presets	300
Preset Freezing	yes
Patrol Scan	8 patrols, up to 32 presets for each patrol
Pattern Scan	4 pattern scans
Park Action	preset\|\|pattern scan\|\|patrol scan\|\|auto scan\|\|tilt scan\|\|random scan\|\|frame scan\|\|panorama scan
3D Positioning	yes
PTZ Status Display	yes
Scheduled Task	preset\|\|pattern scan\|\|patrol scan\|\|auto scan\|\|tilt scan\|\|random scan\|\|frame scan\|\|panorama scan\|\|dome reboot\|\|dome adjust\|\|aux output
Power-off Memory	yes
Video
Main Stream	50 Hz:25 fps(2560 × 1440,1920 × 1080,1280 × 960,1280 × 720)60 Hz:30 fps(2560 × 1440,1920 × 1080,1280 × 960,1280 × 720)
Sub-Stream	50 Hz:25 fps(704 × 576,640 × 480,352 × 288)60 Hz:30 fps(704 × 480,640 × 480,352 × 240)
Third Stream	50 Hz:25 fps(1920 × 1080,1280 × 960,1280 × 720,704 × 576,640 × 480,352 × 288)60 Hz:30 fps(1920 × 1080,1280 × 960,1280 × 720,704 × 480,640 × 480,352 × 240)
Video Compression	H.265\|\|H.264\|\|MJPEG
H.264 Type	Baseline Profile\|\|Main Profile\|\|High Profile
H.265 Type	Main Profile
Scalable Video Coding (SVC)	yes
Region of Interest (ROI)	fixed region
Audio
Audio Compression	G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC
Audio Sampling Rate	MP2L2: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz,48kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz,AAC-LC: 16 kHz, 32 kHz, 48 kHz
Environment Noise Filtering	yes
Network
Protocols	IPv4/IPv6\|\|HTTP\|\|HTTPS\|\|802.1x\|\|Qos\|\|FTP\|\|SMTP\|\|UPnP\|\|SNMP\|\|DNS\|\|DDNS\|\|NTP\|\|RTSP\|\|RTCP\|\|RTP\|\|TCP/IP\|\|UDP\|\|IGMP\|\|ICMP\|\|DHCP\|\|Bonjour\|\|WebSocket\|\|WebSockets
API	Open-ended API\|\| ISAPI\|\|Hikvision SDK\|\|Third-party management platform\|\|Hik-Connect\|\|ISUP\|\|Open Network Video Interface
User/Host	32
Security	Authenticated username and password\|\|MAC address binding\|\|HTTPS encryption\|\|802.1X authenticated access\|\|IP address filter
Network Storage	NAS (NFS, SMB/ CIFS)
Client	iVMS-4200
Web Browser	Chrome 57+?Firefox 52+?Safari 12+\|\|IE10-11
Wireless (Wi-Fi)
Wireless Range	Up to 20 m (The performance varies based on actual environment)
Wireless (Mobile Communication)
Frequency	LTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
Standard	LTE FDD:Band 1,3,5,7,8,20,28 LTE TDD:Band 38,40,41 WCDMA/HSPA+:Band 1,5,8 GSM/GPRS/EDGE:850/900/1800MH
Image Parameters Switch	yes
Image Settings	saturation\|\|brightness\|\|contrast\|\|sharpness
Day/Night Switch	day\|\|night\|\|auto\|\|scheduled-switch
Wide Dynamic Range (WDR)	120 dB
SNR	>52dB
Defog	yes
Image Enhancement	BLC, HLC, 3D DNR
Privacy Mask	up to 24 masks\|\|mask color configurable
Regional Focus	yes
Regional Exposure	yes
Interface
Ethernet Interface	RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Audio	1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 O
Alarm	2 alarm inputs
Reset	yes
Power Output	12 VDC, max. 1000 mA
Event
Basic Event	motion detection\|\|alarm input\|\|alarm output\|\|video tampering alarm\|\|exception
Smart Event	face detection\|\|intrusion detection\|\|line crossing detection\|\|region entrance detection\|\|region exiting detection\|\|unattended baggage detection\|\|object removal detection\|\|audio exception detection
Linkage	preset\|\|patrol scan\|\|pattern scan\|\|alarm output\|\|sending email\|\|notify surveillance center\|\| upload to FTP\|\|NAS video recording
General
Power	12 VDC
Dimension	Ø208 mm × 344.8 mm
Weight	Approx. 3.5 kg (7.7 lb.)
Material	Metal
Operating Condition	-30? to 65? (-22°F to 149°F)
Demist	yes
Power Consumption and Current	Max. 20 W (including max. 7 W for IR and max. 1.6 W for heater);
Approval
Protection	IP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
