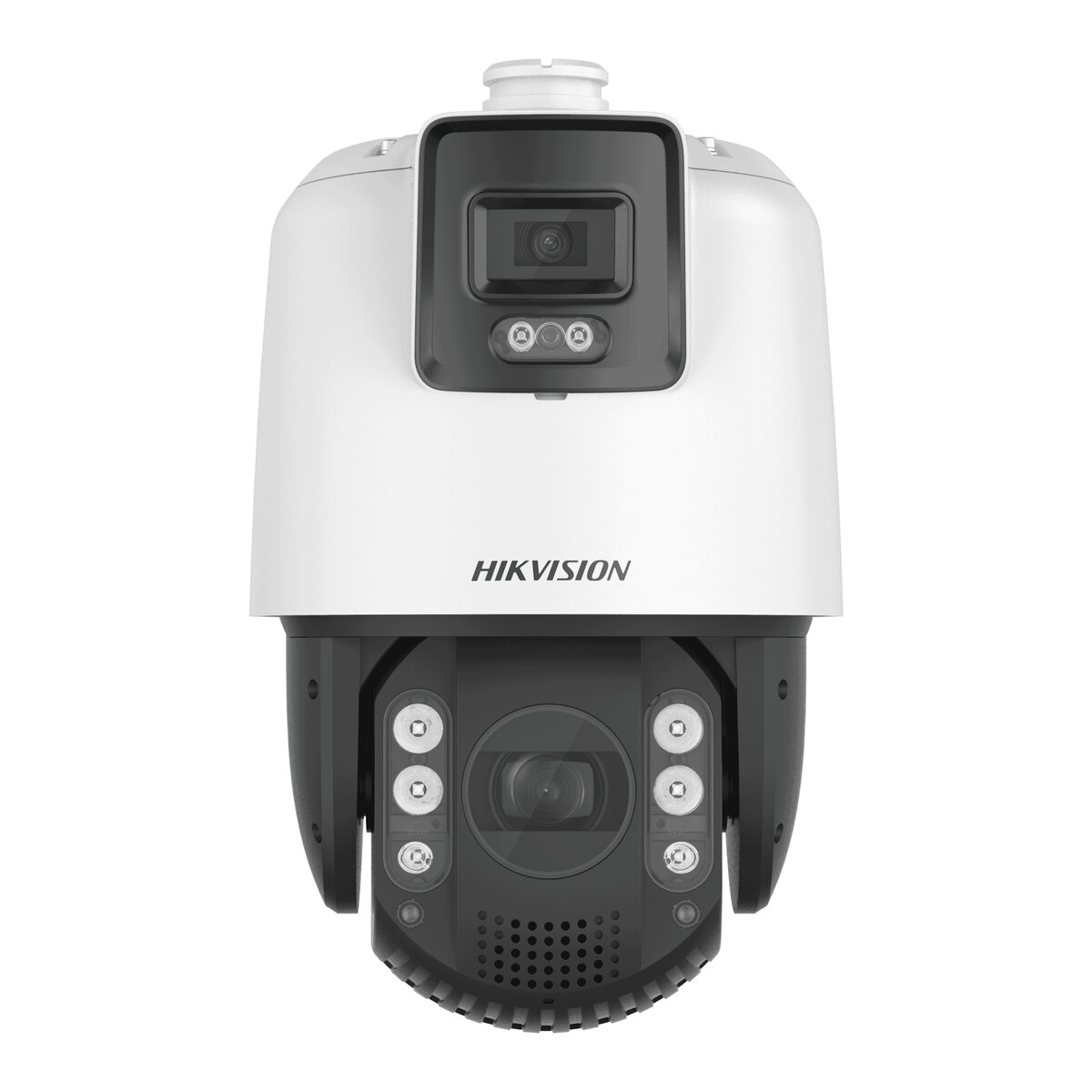

Hikvision 4MP 32x PTZ Network Camera DS-2SE7C432MW-AEB
If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products
- Zoom: [PTZ channel] 32 x optical, 16 x digital
- WDR: 120 dB WDR
- Max. Resolution: [Bullet channel] 2560 x 1440, [PTZ channel] 2560 x 1440
- Focal Length: [Bullet channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 x optical
- Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
- Express delivery 1-2 working days
- Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
- +44 (0) 121 655 014610:00 - 17:00 Mon-Fri
Compatible brackets and mounts
Description
The Hikvision DS-2SE7C432MW-AEB is a 4MP 32x zoom PTZ network camera. It records to a Hikvision NVR and can be viewed from anywhere in the Hik-Connect app.
Key features
- Zoom: [PTZ channel] 32 x optical, 16 x digital
- WDR: 120 dB WDR
- Max. Resolution: [Bullet channel] 2560 x 1440, [PTZ channel] 2560 x 1440
- Focal Length: [Bullet channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 x optical
- Zoom Speed: [PTZ channel]: approx. 5.6 s
- Supplement Light Range: [Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 200 m
Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.
Specifications
| Camera | |
|---|---|
| Image Sensor | [Bullet channel]: 1/1.8" Progressive Scan CMOS; [PTZ channel]: 1/1.8" progressive scan CMOS |
| Min. Illumination | [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s |
| Slow Shutter | yes |
| Focus | semi-auto; manual; auto |
| Day & Night | ICR |
| Zoom | [PTZ channel] 32 x optical, 16 x digital |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| BLC | yes |
| WDR | 120 dB WDR |
| HLC | yes |
| 3D DNR | yes |
| Defog | yes |
| EIS | yes |
| Regional Exposure | yes |
| Regional Focus | yes |
| Image Settings | Saturation; brightness; contrast; sharpness |
| White Balance | MWB; indoor; outdoor; fluorescent lamp; sodium lamp; ATW; auto; Locked WB |
| SNR | ＞52dB |
| General Function | mirror, password protection, watermark, IP address filter |
| Max. Resolution | [Bullet channel] 2560 x 1440, [PTZ channel] 2560 x 1440 |
| Lens | |
| Focal Length | [Bullet channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 x optical |
| Zoom Speed | [PTZ channel]: approx. 5.6 s |
| FOV | [Bullet channel]: Horizontal field of view: 88.7°, Vertical field of view: 44.7°; [PTZ channel]: Horizontal field of view: 60.2° to 2.3° (wide-tele) |
| Aperture | [Bullet channel]: F1.0; [PTZ channel]: F1.5 |
| Illuminator | |
| Supplement Light Type | [Bullet channel] white light, [PTZ channel] IR |
| Supplement Light Range | [Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 200 m |
| Smart Supplement Light | Yes |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s |
| Tilt Speed | tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Zoom | yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Power-off Memory | yes |
| Park Action | preset; patrol scan; pattern scan; auto scan; tilt scan; random scan; frame scan; panorama scan |
| 3D Positioning | yes |
| PTZ Status Display | yes |
| Preset Freezing | yes |
| Scheduled Task | preset; pattern scan; patrol scan; auto scan; tilt scan; random scan; frame scan; panorama scan; dome reboot; dome adjust; aux output |
| Exception Detection | IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot |
| Video | |
| Stream Type | main stream; sub-stream; third stream |
| Main Stream | [Bullet channel]: 50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720) 60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720) [PTZ channel]: 50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720) 60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720) |
| Sub-Stream | [Bullet channel]: 50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288) 60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240) [PTZ channel]: 50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288) 60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240) |
| Third Stream | [Bullet channel]: 50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288) 60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240) [PTZ channel]: 50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288) 60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240) |
| Video Compression | H.265; H.264; MJPEG |
| Video Bit Rate | 32 kbps to 16384 kbps |
| H.264 Type | baseline profile; main profile; high profile |
| H.265 Type | main profile |
| H.264+ | yes |
| H.265+ | yes |
| SVC | yes |
| ROI | main stream, sub-stream and third stream respectively support eight fixed areas |
| Audio | |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM |
| Audio Bit Rate | 32 to 192 Kbps (MP2L2) |
| Audio Sampling Rate | 8 kHz,16 kHz,32 kHz,48 kHz |
| Environment Noise Filtering | yes |
| Smart Features | |
| Smart Record | ANR; Dual-VCA |
| Warning and Alert | white light and audible warning |
| Network | |
| Network Storage | NAS (NFS，SMB/ CIFS), ANR |
| Protocols | IPv4/IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTCP; RTP; TCP/IP; UDP; IGMP; ICMP; DHCP; PPPoE; Bonjour |
| API | Open-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP |
| Simultaneous Live View | 20 |
| User/Host | 32 |
| Security Measures | Authenticated username and password; MAC address binding; HTTPS encryption;802.1X authenticated access; IP address filter |
| Client | iVMS-4200; Hik-Connect |
| Web Browser | IE 10+, Chrome 57+, Firefox 52+, Safari 12+ |
| Image | |
| Image Parameters Switch | Yes |
| Privacy Mask | [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
| Interface | |
| Communication Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| On-board Storage | Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB |
| Alarm Input | 2 alarm inputs |
| Alarm Output | 1 alarm output |
| Audio Input | 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% |
| Audio Output | 1 audio output, line level, impedance: 600 Ω |
| Event | |
| Basic Event | [PTZ channel] motion detection, video tampering alarm, [PTZ channel & bullet channel] alarm input and output, exception |
| Smart Event | [PTZ channel & bullet channel] audio exception detection, [PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection, [Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Alarm Linkage | [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan) |
| Smart Tracking | [PTZ channel] yes |
| Smart Linkage | Manual tracking, auto tracking, tracking takeover, track in turn |
| Deep Learning Function | |
| Face Capture | [Bullet channel] no, [PTZ channel] yes |
| General | |
| Power | 24 VAC, Hi-PoE |
| Power Consumption and Current | Max. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light |
| Operating Conditions | -30℃ to 65℃ (-22°F to 149°F); humidity lower than 90%RH |
| Reset | yes |
| Demist | Demist by heating the glass |
| Material | ADC12 |
| Dimensions | Ø 220 mm x 382.1 mm (Ø 8.66" x 15.04") |
| Weight | Approx. 6 kg (13.23 lb.) |
| Approval | |
| Protection | IP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection |
Downloads
Additional information
| Brand | Hikvision |
|---|---|
| Colour | White |
| Resolution | 4 MegaPixel |
| Technology | IP |
| Features | PoE (Power over Ethernet), Smart Tracking, Vandal Resistant (IK10) |
| Camera Type | PTZ |
| Optical Zoom | 32x |
