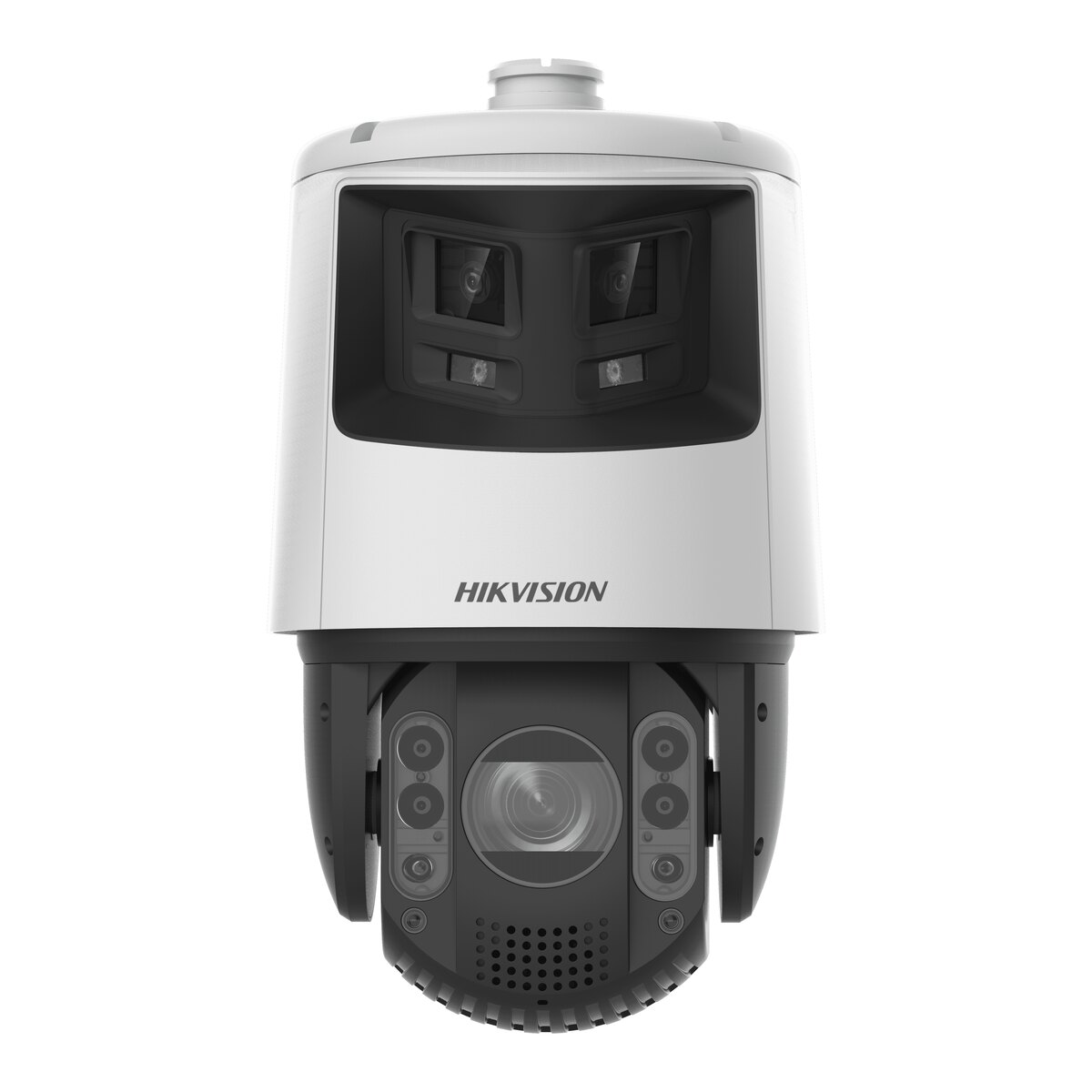

Hikvision 4MP 32x PTZ Network Camera DS-2SE7C432MWG-EB/26

Max. Resolution: [Panoramic channel] 3632 x 1632, [PTZ channel] 2560 x 1440
Zoom: 32 x optical,16 x digital
Focal Length: [Panoramic channel] 2.8 mm, [PTZ channel] 5.9 to 188.8 mm
Zoom Speed: [Panoramic channel] No, [PTZ channel] approx. 5.6 s

Description

The Hikvision DS-2SE7C432MWG-EB/26 is a 4MP 32x zoom PTZ network camera. It records to a Hikvision NVR and can be viewed from anywhere in the Hik-Connect app.

Key features

Max. Resolution: [Panoramic channel] 3632 x 1632, [PTZ channel] 2560 x 1440
Zoom: 32 x optical,16 x digital
Focal Length: [Panoramic channel] 2.8 mm, [PTZ channel] 5.9 to 188.8 mm
Zoom Speed: [Panoramic channel] No, [PTZ channel] approx. 5.6 s
Supplement Light Range: IR distance: up to 200 m
Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	[Panoramic channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/2.8" Progressive Scan CMOS
Max. Resolution	[Panoramic channel] 3632 x 1632, [PTZ channel] 2560 x 1440
Min. Illumination	[PTZ channel] Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 lux with IR,[Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter Speed	1 s to 1/30,000 s
Day & Night	IR cut filter
Zoom	32 x optical,16 x digital
Slow Shutter	yes
HLC	yes
3D DNR	yes
Lens
Focal Length	[Panoramic channel] 2.8 mm, [PTZ channel] 5.9 to 188.8 mm
FOV	[Panoramic channel] horizontal field of view: 180°±10°, vertical field of view: 80°±5° [PTZ channel] horizontal field of view: 60.2° to 2.3°
Focus	Auto, semi-auto, manual
Aperture	[Panoramic channel] F1.0, [PTZ channel] Max. F1.5
Zoom Speed	[Panoramic channel] No, [PTZ channel] approx. 5.6 s
Illuminator
Supplement Light Range	IR distance: up to 200 m
White Light Distance	Panoramic channel: 30 m
PTZ
Movement Range (Pan)	360°
Movement Range (Tilt)	-15° to 90°
Pan Speed	Pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed	Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan	Yes
Presets	300
Preset Freezing	Yes
Patrol Scan	8 patrols, up to 32 presets for each patrol
Pattern Scan	4 pattern scans, record time over 10 minutes for each scan
Park Action	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning	Yes
PTZ Status Display	Yes
Scheduled Task	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, aux output, dome adjust
Power-off Memory	Yes
Video
Main Stream	[PTZ channel] 50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720), 60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720) [Panoramic channel] 50 Hz: 25 fps (3632 x 1632, 3680 x 1656), 60 Hz: 30 fps (3632 x 1632, 3680 x 1656)
Sub-Stream	[PTZ channel] 50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288), 60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240) [Panoramic channel] 50 Hz: 25 fps (1200 x 536, 960 x 432), 60 Hz: 30 fps (1200 x 536, 960 x 432)
Third Stream	[PTZ channel] 50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288), 60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240) [Panoramic channel] No
Video Compression	Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 16384 Mbps
H.264 Type	Baseline Profile, Main Profile, High Profile
H.265 Type	Main Profile
Scalable Video Coding (SVC)	yes
Region of Interest (ROI)	fixed region
Audio
Audio Compression	G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3
Audio Bit Rate	32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3)
Audio Sampling Rate	8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering	yes
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, WebSocket, WebSockets, SRTP
Simultaneous Live View	20
API	ISUP, SDK, ISAPI, Open Network Video Interface (Profile S, Profile G, Profile T)
User/Host	32
Security	Password protection, HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), host authentication (MAC address), IP address filter
Network Storage	NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client	iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser	IE 11+, Chrome 57+, Firefox 52+, Safari 12+, Edge79.0.309.65+
Image Parameters Switch	Yes
Image Settings	saturation, brightness, contrast, sharpness
Day/Night Switch	Day, night, auto, schedule
Wide Dynamic Range (WDR)	[Panoramic channel] Digital WDR, [PTZ channel] 120 dB
SNR	ï¼ž52dB
Defog	yes
Image Stabilization	yes
Image Enhancement	BLC, HLC,3D DNR
Privacy Mask	24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus	yes
Regional Exposure	yes
Interface
Ethernet Interface	1 RJ45 10/100M self-adaptive Ethernet port
On-board Storage	Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Audio	1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KÎ© ± 10%, 1 output (line out), line level, output impedance: 600 Î©
Alarm	2 input(s), 1 output(s)
Reset	Yes
Event
Basic Event	Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart)
Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection
Linkage	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan), audible warning, white light flashing
Smart Tracking	Manual tracking, auto-tracking
Smart Linkage	panorama linkage, tracking takeover, track in turn
Deep Learning Function
Face Capture	Support detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
General
Power	24 VAC, Max. 60 W, Hi-PoE
Dimension	Ã˜222.3 mm x 387.2 mm (Ã˜8.75" x 15.2")
Weight	Approx. 4.75 kg (10.47 lb.)
Material	ADC12, Plastic, PC+10%GF
Operating Condition	-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
General Function	mirror, watermark, password protection, IP address filter
Demist	Yes
Approval
Protection	IP66 (IEC 60529-2013)
