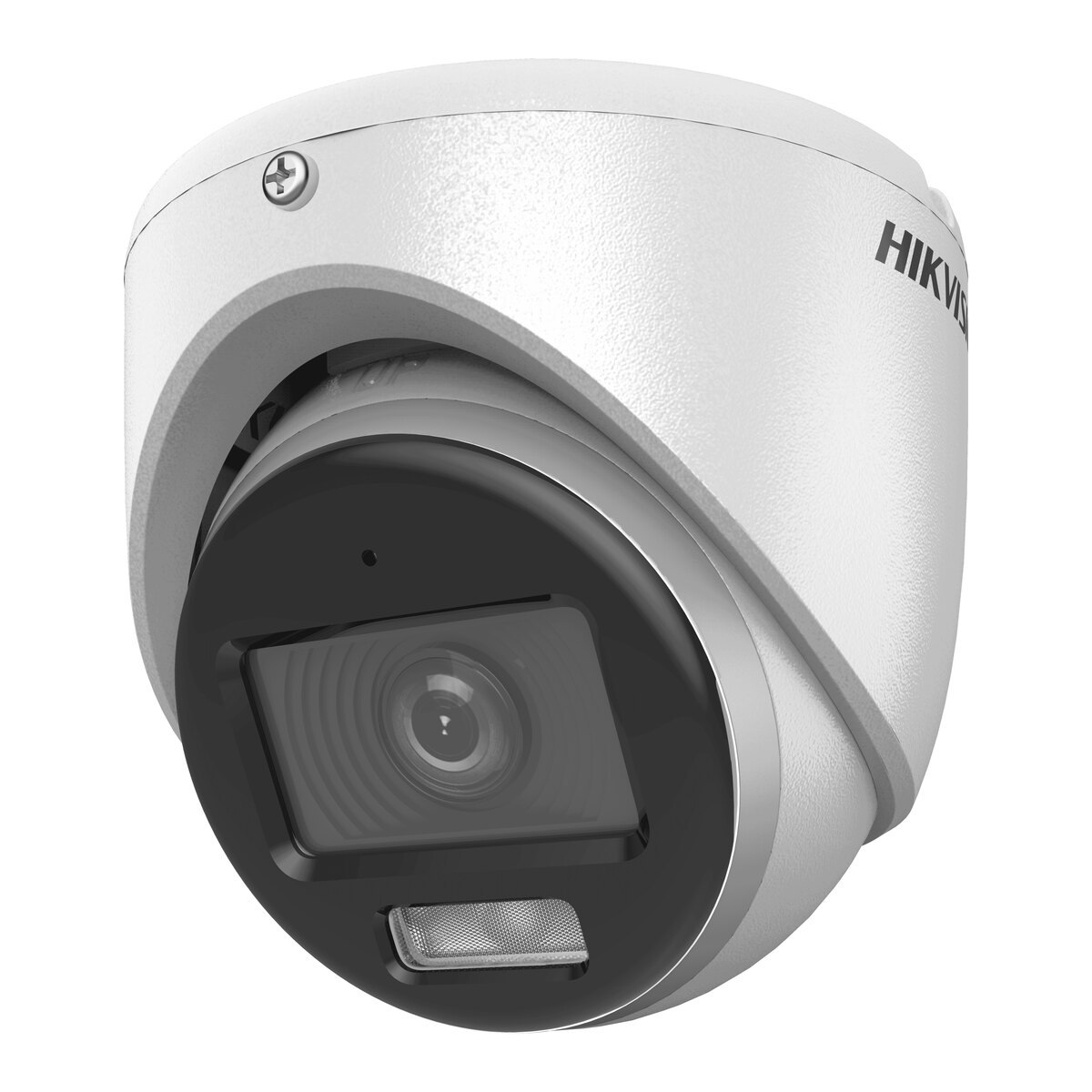

Hikvision 5MP/3K ColorVu Turbo HD Turret Camera with Mic 2.8mm DS-2CE70KF0T-LMFS

Image Sensor: 3K CMOS
Resolution: 2960 (H) x 1665 (V)
Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Lens: 2.8 mm fixed focal lens

Login to view Price SKU: DS-2CE70KF0T-LMFS(2.8mm) Category: Analog CCTV Cameras Tags: 24/7 Colour Cameras, Microphone Brand: Hikvision

Description

The Hikvision DS-2CE70KF0T-LMFS is a 5MP/3K turret Turbo HD camera with a 2.8mm lens. ColorVu keeps the picture in full colour after dark, using a wide aperture and a soft warm light instead of infrared. A built-in microphone records sound with the video. It connects to a Hikvision Turbo HD DVR over standard coax cable.

Key features

Image Sensor: 3K CMOS
Resolution: 2960 (H) x 1665 (V)
Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Lens: 2.8 mm fixed focal lens
Lens Mount: M12
WDR (Wide Dynamic Range): Digital WDR

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	3K CMOS
Signal System	PAL/NTSC
Resolution	2960 (H) x 1665 (V)
Frame Rate	TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps CVI: 4 MP @25 fps/30 fps CVBS: PAL/NTSC
Min. Illumination	0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time	PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Lens	2.8 mm fixed focal lens
Field of View	2.8 mm, horizontal FOV: 110°, vertical FOV: 60°, diagonal FOV: 143°
Lens Mount	M12
Light Alarm	Solid Light Alarm (White Light)
Day & Night	ICR
WDR (Wide Dynamic Range)	Digital WDR
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Illuminator
Supplement Light Type	IR, White Light
Supplement Light Range	IR: Up to 20 m White Light: Up to 20 m
Smart Supplement Light	Yes
White Light	Auto/Off
Image Mode	STD/HIGH-SAT/HIGHLIGHT
AGC	Yes
Day/Night Mode	Auto
White Balance	Auto/Outdoor/Global/Manual
AE (Auto Exposure) Mode	HLS; DWDR; BLC; HLC; Global
Noise Reduction	2D DNR
Language	English
Function	Smart IR; Brightness; Sharpness; AGC; Anti-Banding
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS
Audio In	Built-in mic
General
Power	12 VDC ± 25%, max.3.9 W* You are recommended to use one power adapter to supply the power for one camera.
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
Protection Level	IP67
Material	Metal
Communication	HIKVISION-C
Dimension	Ø85.1 mm x 77.62 mm (Ø3.35" x 3.05")
Weight	Approx. 330 g (0.73 lb.)

Downloads

Additional information

Brand	Hikvision
Lens	2.8mm
Colour	White
Resolution	5 MegaPixel
Technology	AHD, Analog (CVBS), CVI, TVI
Features	Built-in Microphone
Camera Type	Turret
Night Vision	24/7 Colour
