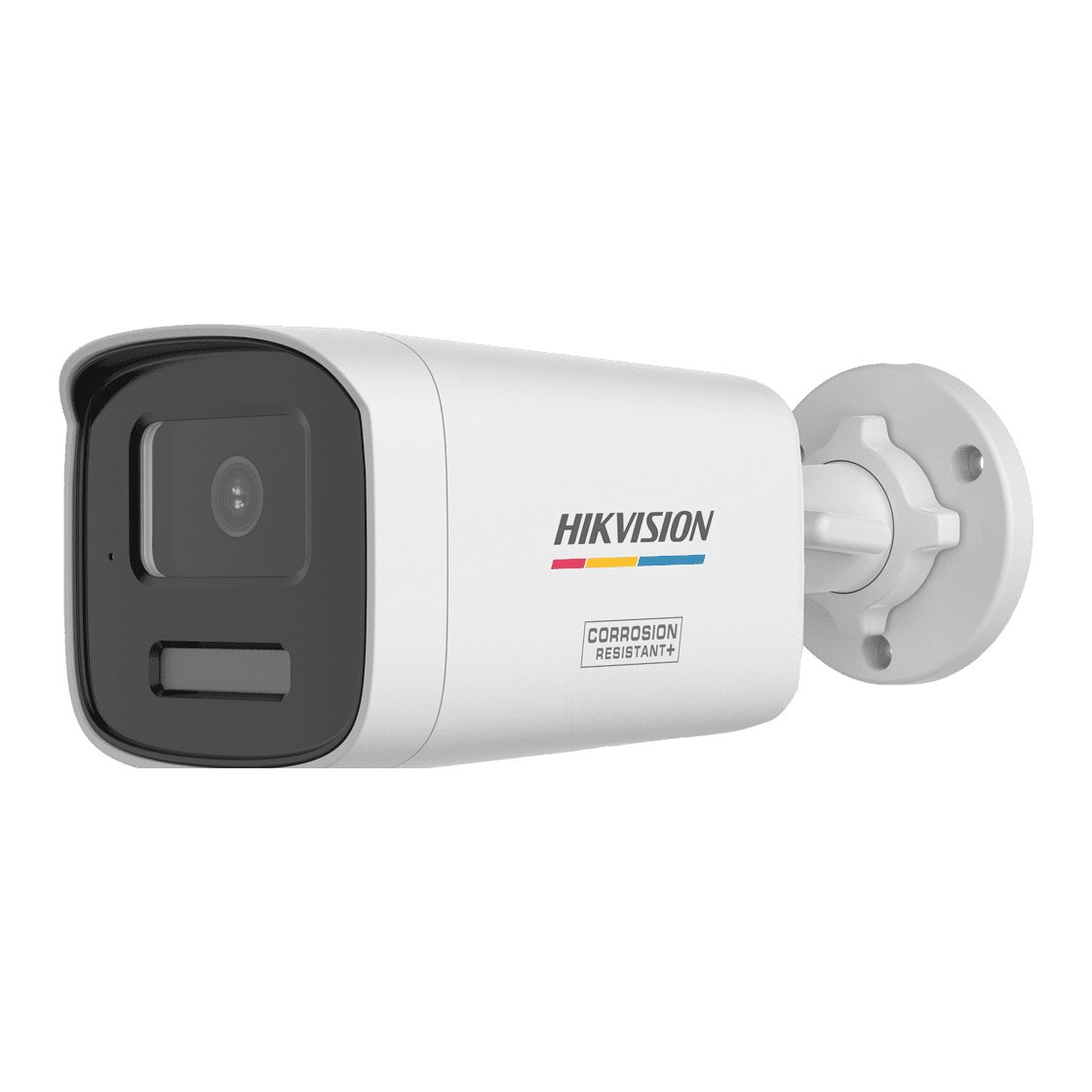

Hikvision 5MP/3K Smart Hybrid Light ColorVu Turbo HD Bullet Camera 2.8mm DS-2CE12KF3T-LSYE

Image Sensor: 3 K CMOS
Max. Resolution: 2960 (H) × 1665 (V)
Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Lens Type: 2.8 mm, 3.6 mm fixed focal lens

Login to view Price SKU: DS-2CE12KF3T-LSYE(2.8mm) Category: Analog CCTV Cameras Tags: 24/7 Colour Cameras, Dual Illumination Brand: Hikvision

Description

The Hikvision DS-2CE12KF3T-LSYE is a 5MP/3K bullet Turbo HD camera with a 2.8mm lens. Smart Hybrid Light watches in infrared and switches to white light when it picks up a person or vehicle, so the footage turns to full colour when it matters. It connects to a Hikvision Turbo HD DVR over standard coax cable.

Key features

Image Sensor: 3 K CMOS
Max. Resolution: 2960 (H) × 1665 (V)
Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Lens Type: 2.8 mm, 3.6 mm fixed focal lens
Lens Mount: M12
Supplement Light Range: IR: Up to 40 m,White Light: Up to 40 m

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	3 K CMOS
Max. Resolution	2960 (H) × 1665 (V)
Min. Illumination	0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time	PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night	ICR
Angle Adjustment	Pan: 0° to 360°,Tilt: 0° to 180°,Rotate: 0° to 360°
Signal System	PAL/NTSC
Slow Shutter	Max. 16 times
Lens
Lens Type	2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV	2.8 mm, horizontal FOV: 112°, vertical FOV: 60°, diagonal FOV: 140°3.6 mm, horizontal FOV: 90°, vertical FOV: 49°, diagonal FOV: 105°
Lens Mount	M12
Microphone
Pickup Distance	In a radius of up to 5 m
Amount	1
Illuminator
Supplement Light Type	Smart,IR,White Light
Supplement Light Range	IR: Up to 40 m,White Light: Up to 40 m
Image Parameters Switch	STD/HIGH-SAT/HIGHLIGHT
Image Settings	Saturation,Brightness,Contrast,Sharpness,Anti-banding,AGC
Frame Rate	TVI: 3K @20 fps/25 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
Day/Night Mode	Auto/Color
Wide Dynamic Range (WDR)	=130 dB
Image Enhancement	BLC,HLC,Global,HLS,WDR,Face AE
Privacy Mask	4 programmable polygon privacy masks
Noise Reduction	3D DNR
White Balance	Auto,Manual
Interface
Video Output	1 HD analog output
General
Power	12 VDC ± 25%, max. 7.7 W, PoC.at,*You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.
Material	Front cover: Metal; Main body: Plastic
Dimension	211 mm × 83.5 mm × 80.7 mm (8.31" × 3.29" × 3.18")
Weight	Approx. 445 g (0.98 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
Communication	HIKVISION-C
Language	English
Approval
Protection	IP67
Anti-Corrosion Protection	NEMA 4X (NEMA 250-2018)

Downloads

Additional information

Brand	Hikvision
Lens	2.8mm
Colour	White
Resolution	5 MegaPixel
Technology	TVI
Features	PoC (Power over Coax)
Camera Type	Bullet
Night Vision	24/7 Colour, Smart Dual Light
