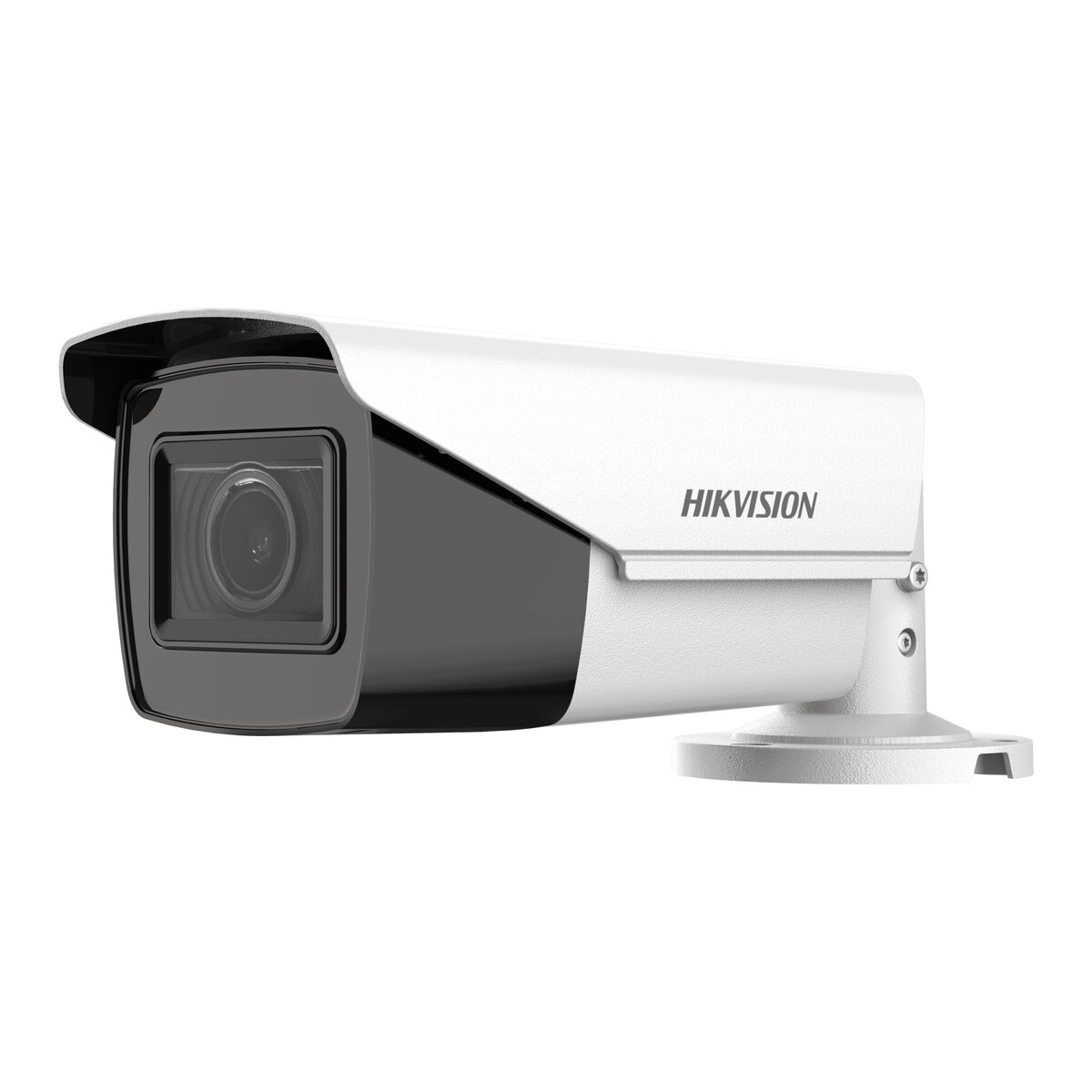

Hikvision 5MP Motorised Varifocal Turbo HD Bullet Camera 2.7-13.5mm DS-2CE19H0T-AIT3ZF

Image Sensor: 5 MP CMOS
Max. Resolution: 2560 (H) × 1944 (V)
Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Lens Mount: F14

Description

The Hikvision DS-2CE19H0T-AIT3ZF is a 5MP bullet Turbo HD camera with a 2.7-13.5mm lens. The motorised lens zooms and focuses from the recorder or the app, so you can frame the shot once the camera is up. It connects to a Hikvision Turbo HD DVR over standard coax cable.

Key features

Image Sensor: 5 MP CMOS
Max. Resolution: 2560 (H) × 1944 (V)
Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Lens Mount: F14
Lens Type: 2.7 mm to 13.5 mm motorized varifocal lens
Focal Length & FOV: horizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	5 MP CMOS
Signal System	PAL/NTSC
Max. Resolution	2560 (H) × 1944 (V)
Frame Rate	TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fpsAHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25fpsCVI: 4 M @ 30 fps, 4 M @ 25 fpsCVBS: PAL/NTSC
Min. Illumination	0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens Mount	F14
Day & Night	IR Cut Filter
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Lens
Lens Type	2.7 mm to 13.5 mm motorized varifocal lens
Focal Length & FOV	horizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°
Illuminator
Supplement Light Range	IR: Up to 40 m
Day/Night Mode	Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
Image Parameters Switch	STD/HIGH-SAT
White Balance	Auto/Manual
Image Enhancement	DWDR,BLC,HLC,Global
Noise Reduction	2D DNR
Language	English
Image Settings	Brightness, Smart IR, Sharpness, AGC
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS
General
Power	12 VDC±15%, 24 VAC±15%, Max 8.8 W
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
Material	Front cover: Metal, Main body: Plastic
Communication	HIKVISION-C
Dimension	84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10.04")
Weight	Approx. 682 g (1.50 lb.)
Approval
Protection	IP67

Downloads

Additional information

Brand	Hikvision
Lens	2.7-13.5mm
Colour	White
Resolution	5 MegaPixel
Technology	AHD, Analog (CVBS), CVI, TVI
Features	Varifocal Lens
Camera Type	Bullet
Night Vision	Infrared (IR)
