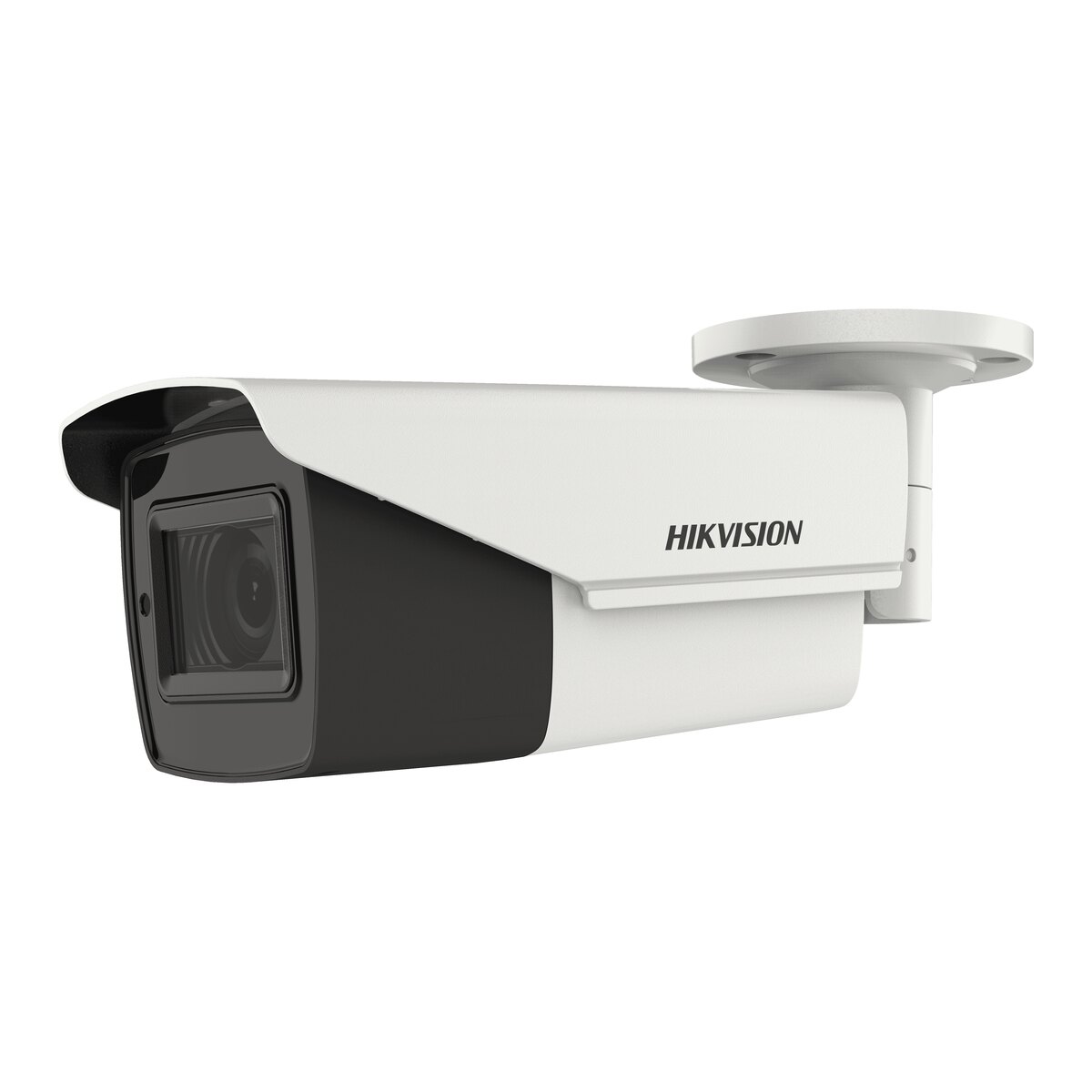

Hikvision 5MP Motorised Varifocal Turbo HD Bullet Camera 2.7-13.5mm DS-2CE19H8T-AIT3ZF

Image Sensor: 5 MP CMOS
Max. Resolution: 2560 (H) x 1944 (V)
Min. Illumination: Colour: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Lens Type: 2.7 mm to 13.5 mm motorized varifocal lens

Description

The Hikvision DS-2CE19H8T-AIT3ZF is a 5MP bullet Turbo HD camera with a 2.7-13.5mm lens. The motorised lens zooms and focuses from the recorder or the app, so you can frame the shot once the camera is up. It connects to a Hikvision Turbo HD DVR over standard coax cable.

Key features

Image Sensor: 5 MP CMOS
Max. Resolution: 2560 (H) x 1944 (V)
Min. Illumination: Colour: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Lens Type: 2.7 mm to 13.5 mm motorized varifocal lens
Focal Length & FOV: horizontal FOV: 92.3° to 29.3°
Lens Mount: Î¦14

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	5 MP CMOS
Max. Resolution	2560 (H) x 1944 (V)
Min. Illumination	Colour: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
Day & Night	IR Cut Filter
Angle Adjustment	Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
Signal System	PAL/NTSC
Lens
Lens Type	2.7 mm to 13.5 mm motorized varifocal lens
Focal Length & FOV	horizontal FOV: 92.3° to 29.3°
Lens Mount	Î¦14
Illuminator
Supplement Light Type	IR
Supplement Light Range	Up to 80 m
Smart Supplement Light	Yes
Image Settings	Brightness; Sharpness; Mirror; Smart IR; AGC
Frame Rate	TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fpsAHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fpsCVI: 4 MP@25fps, 4 MP@30fpsCVBS: PAL, NTSC
Day/Night Mode	Auto/Colour/BW (Black and White)
Wide Dynamic Range (WDR)	=130 dB
Image Enhancement	WDR; BLC
Privacy Mask	4 programmable privacy masks
Noise Reduction	3D DNR
White Balance	Auto/Manual
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS
Event
Motion Detection	4 programmable motion areas
General
Power	9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC, max. 10.5 W
Material	Metal
Dimension	84.5 mm x 92 mm x 255.1 mm (3.33" x 3.62" x 10")
Weight	Approx. 930 g (2.05 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
Communication	HIKVISION-C
Language	English
Approval
Protection	IP67

Downloads

Additional information

Brand	Hikvision
Lens	2.7-13.5mm
Colour	White
Resolution	5 MegaPixel
Technology	AHD, Analog (CVBS), CVI, TVI
Features	Varifocal Lens
Camera Type	Bullet
Night Vision	Infrared (IR)
