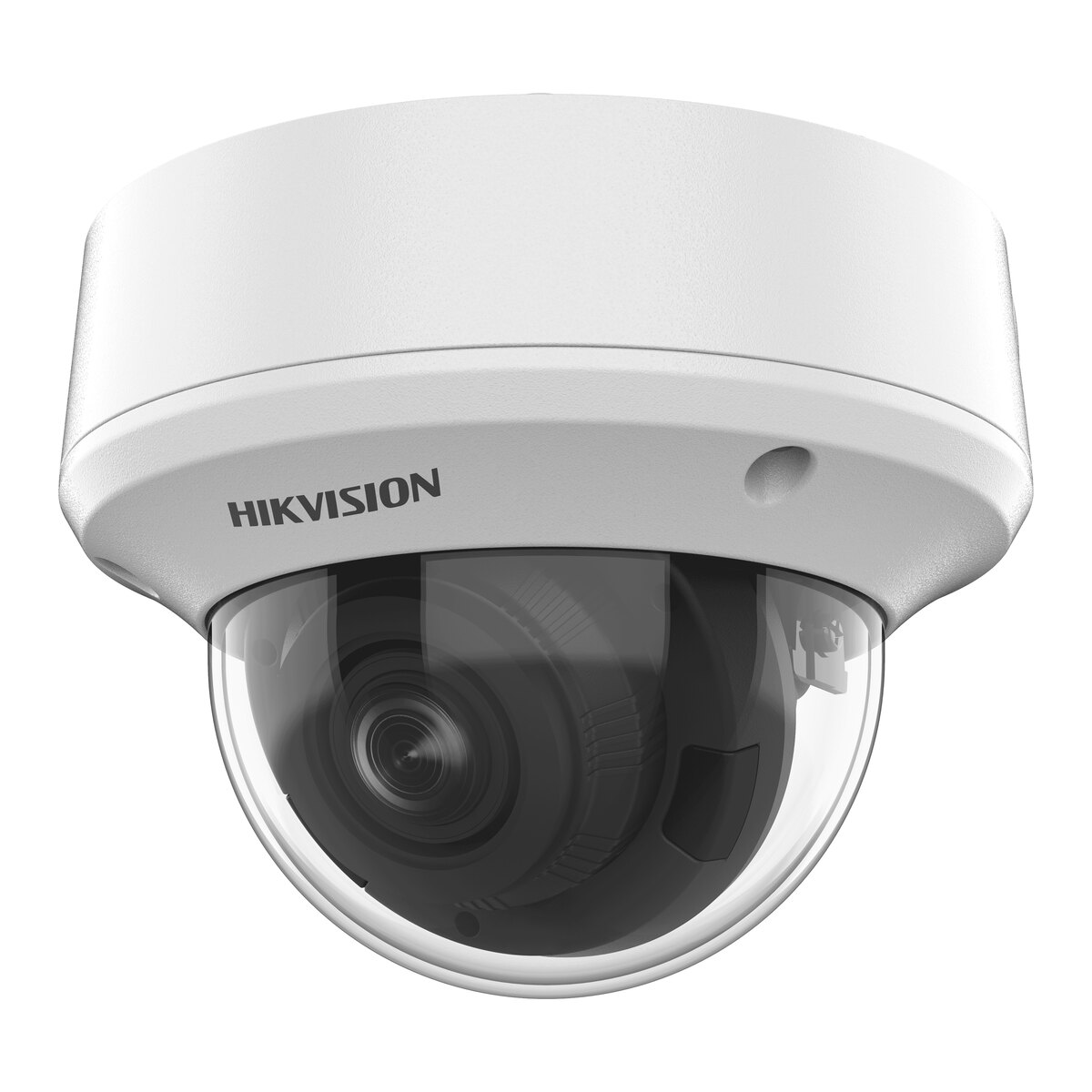

Hikvision 5MP Motorised Varifocal Turbo HD Dome Camera DS-2CE5AH0T-AVPIT3ZF

Hikvision 5MP Motorised Varifocal Turbo HD Dome Camera 2.7-13.5mm DS-2CE5AH0T-AVPIT3ZF

Image Sensor: 5 MP CMOS
Max. Resolution: 2560 (H) × 1944 (V)
Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Lens Mount: F14

Description

The Hikvision DS-2CE5AH0T-AVPIT3ZF is a 5MP dome Turbo HD camera. The motorised lens zooms and focuses from the recorder or the app, so you can frame the shot once the camera is up. It connects to a Hikvision Turbo HD DVR over standard coax cable.

Key features

Image Sensor: 5 MP CMOS
Max. Resolution: 2560 (H) × 1944 (V)
Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Lens Mount: F14
Lens Type: 2.7 mm to 13.5 mm motorized varifocal lens
Focal Length & FOV: horizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	5 MP CMOS
Signal System	PAL/NTSC
Max. Resolution	2560 (H) × 1944 (V)
Frame Rate	TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fpsAHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fpsCVI: 4 M @ 30 fps, 4 M @ 25 fpsCVBS: PAL/NTSC
Min. Illumination	0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens Mount	F14
Day & Night	IR Cut Filter
Angle Adjustment	Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
Lens
Lens Type	2.7 mm to 13.5 mm motorized varifocal lens
Focal Length & FOV	horizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°
Illuminator
Supplement Light Range	IR: Up to 40 m
Day/Night Mode	Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
Image Parameters Switch	STD/HIGH-SAT
White Balance	Auto/Manual
Image Enhancement	DWDR,BLC,HLC,Global
Noise Reduction	2D DNR
Language	English
Image Settings	Brightness, Smart IR, Sharpness, AGC
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS
General
Power	12 VDC±15%, 24 VAC±15%, Max 5.9 W
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
Material	Metal
Communication	HIKVISION-C
Dimension	Ø145 mm × 111.3 mm (5.69" × 4.37")
Weight	Approx. 837 g (1.85 lb.)
Approval
Protection	IP67

Downloads

Additional information

Brand	Hikvision
Colour	White
Resolution	5 MegaPixel
Technology	AHD, Analog (CVBS), CVI, TVI
Features	Varifocal Lens
Camera Type	Dome
Lens	2.7-13.5mm
Night Vision	Infrared (IR)
