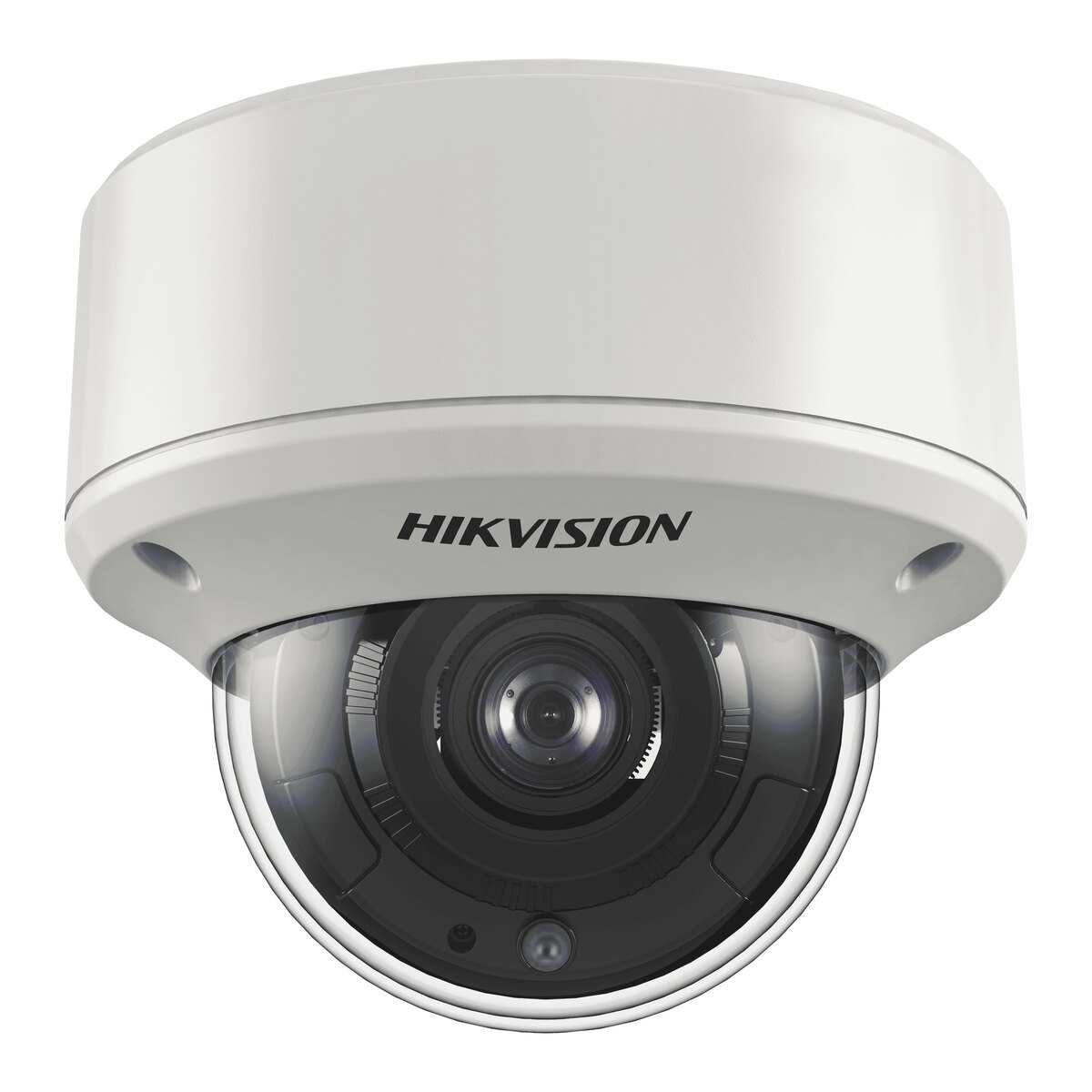

Hikvision 5MP Motorised Varifocal Turbo HD Dome Camera with Mic 2.7-13.5mm DS-2CE59H8T-AVPIT3ZF

Image Sensor: 5 megapixel progressive scan CMOS
Max. Resolution: 2560 (H) x 1944 (V)
Min. Illumination: Colour: 0.003 Lux@(F1.38, AGC ON), 0 Lux with IR
Lens Type: 2.7 mm to 13.5 mm motorized varifocal lens

Description

The Hikvision DS-2CE59H8T-AVPIT3ZF is a 5MP dome Turbo HD camera with a 2.7-13.5mm lens. The motorised lens zooms and focuses from the recorder or the app, so you can frame the shot once the camera is up. A built-in microphone records sound with the video. It connects to a Hikvision Turbo HD DVR over standard coax cable.

Key features

Image Sensor: 5 megapixel progressive scan CMOS
Max. Resolution: 2560 (H) x 1944 (V)
Min. Illumination: Colour: 0.003 Lux@(F1.38, AGC ON), 0 Lux with IR
Lens Type: 2.7 mm to 13.5 mm motorized varifocal lens
Focal Length & FOV: 92.3° to 29.3°
Lens Mount: Î¦ 14

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	5 megapixel progressive scan CMOS
Max. Resolution	2560 (H) x 1944 (V)
Min. Illumination	Colour: 0.003 Lux@(F1.38, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355°
Signal System	PAL/NTSC
Lens
Lens Type	2.7 mm to 13.5 mm motorized varifocal lens
Focal Length & FOV	92.3° to 29.3°
Lens Mount	Î¦ 14
Image Settings	Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Frame Rate	TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps,AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps,CVI: 4 MP@25fps, 4 MP@30fps,CVBS: PAL, NTSC
Day/Night Mode	Auto/Colour/BW (Black and White)
Wide Dynamic Range (WDR)	= 130 dB
Image Enhancement	BLC
Privacy Mask	4 programmable privacy masks
Noise Reduction	Level 1 to 9
White Balance	Auto/Manual
AGC	Yes
Interface
Video Output	1 HD analogue output, TVI/AHD/CVI/CVBS
Event
Motion Detection	4 programmable areas
General
Material	Metal
Dimension	Î¦ 145.2 mm x 124.1 mm (Î¦ 7.1" x 4.9")
Weight	Approx. 640 g (1.41 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
Communication	Up the coax, Protocol: HIKVISION-C (TVI output)
Language	English
Power Supply	-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC
Consumption	-A: Max. 8 W
IR Range	Up to 60 m
Approval
Protection	IP67, IK10

Downloads

Additional information

Brand	Hikvision
Lens	2.7-13.5mm
Colour	White
Resolution	5 MegaPixel
Technology	AHD, Analog (CVBS), CVI, TVI
Features	Built-in Microphone, Vandal Resistant (IK10), Varifocal Lens
Camera Type	Dome
Night Vision	Infrared (IR)
