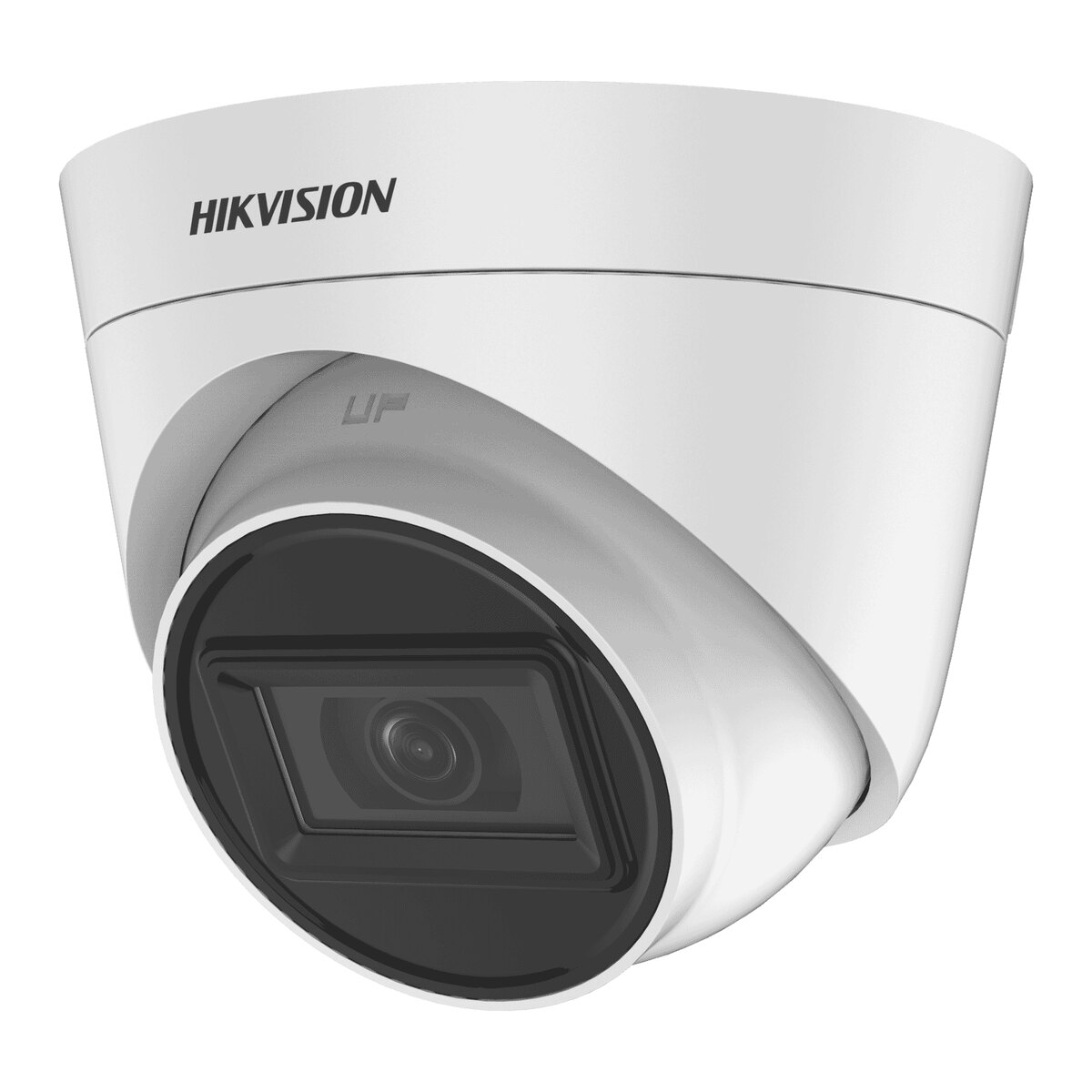

Hikvision 5MP Turbo HD Turret Camera 2.4mm DS-2CE78H0T-IT1F

Image Sensor: 5 MP CMOS image sensor
Max. Resolution: 2560 (H) × 1944 (V)
Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Lens Type: 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens

Description

The Hikvision DS-2CE78H0T-IT1F is a 5MP turret Turbo HD camera with a 2.4mm lens. It connects to a Hikvision Turbo HD DVR over standard coax cable.

Key features

Image Sensor: 5 MP CMOS image sensor
Max. Resolution: 2560 (H) × 1944 (V)
Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Lens Type: 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
Lens Mount: M12
Wide Dynamic Range (WDR): Digital WDR

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	5 MP CMOS image sensor
Max. Resolution	2560 (H) × 1944 (V)
Min. Illumination	Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50, 000 sNTSC: 1/30 s to 1/50, 000 s
Day & Night	ICR
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
Signal System	PAL/NTSC
Lens
Lens Type	2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV	2.4 mm, horizontal FOV: 103°, vertical FOV: 81°, diagonal FOV: 142° 2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112° 6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°
Lens Mount	M12
Image Parameters Switch	STD/HIGH-SAT
Image Settings	Brightness, Sharpness, Mirror, Smart IR
Frame Rate	TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fpsAHD: 5M@20fps, 4M@30fps, 4M@25fpsCVI: 4M@30fps, 4M@25fpsCVBS: PAL/NTSC
Day/Night Mode	Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	BLC, HLC
White Balance	ATW/MANUAL
AGC	Support
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS
General
Material	Front Cover: PlasticMain Body: Metal
Dimension	F 109.82 mm × 91.03 mm (F 4.32" × 3.60")
Weight	Approx. 303 g (0.67 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication	HIKVISION-C
Language	English
Power Supply	12 VDC ±25%
Consumption	Max. 4.3 W
IR Range	Up to 30 m
Approval
Protection	IP67
