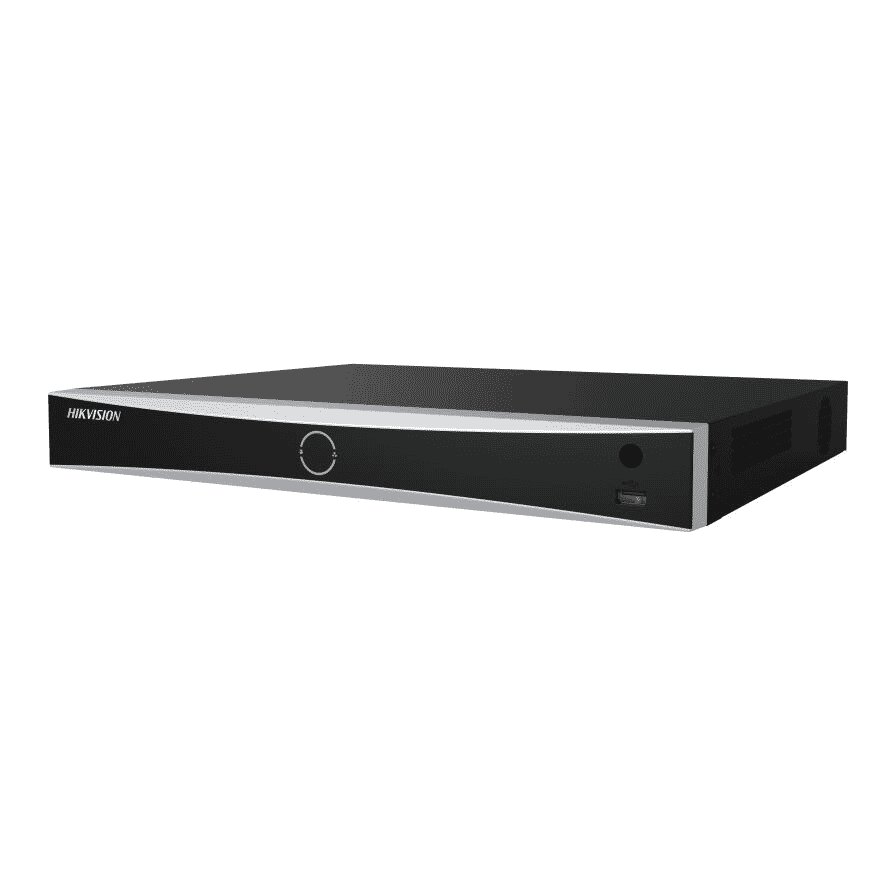

Hikvision 8CH 12MP AcuSense PoE CCTV NVR Recorder DS-7608NXI-I2/8P/S(STD)(E)
If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products
- 8-channel IP recording up to 12MP
- 8 PoE ports for plug and play camera connection
- AcuSense human and vehicle alerts that cut false alarms
- Incoming bandwidth: 80 Mbps
- Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
- Express delivery 1-2 working days
- Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
- +44 (0) 121 655 014610:00 - 17:00 Mon-Fri
Description
The Hikvision DS-7608NXI-I2/8P/S(STD)(E) is an 8-channel network video recorder for IP cameras up to 12MP, with a built-in 8-port PoE switch so each camera needs only one network cable for power and video.
AcuSense filters motion alerts down to people and vehicles, so a swaying tree or passing cat no longer fills your phone with notifications. It takes 2 SATA hard drives of up to 8TB each. No hard drive is included: choose one from our surveillance hard drives.
Key features
- 8-channel IP recording up to 12MP
- 8 PoE ports for plug and play camera connection
- AcuSense human and vehicle alerts that cut false alarms
- Incoming bandwidth: 80 Mbps
- 4K HDMI output for a local monitor
- 2 SATA bays, up to 8TB per drive
- H.265+ compression for longer recording on the same storage
- Free Hik-Connect app for live view and playback on your phone
Need cameras to go with it? See our IP cameras, or send us a message with your camera count and we will check compatibility.
Specifications
| Facial Recognition | |
|---|---|
| Face Picture Library | Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture = 512 KB, total capacity = 150 MB) |
| Face Picture Comparison | 4-ch face picture comparison alarm |
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
| Facial Detection and Analytics Performance | 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265) |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | 8-ch |
| Perimeter Protection | |
| Human/Vehicle Analysis | Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm |
| Video and Audio | |
| IP Video Input | 8 |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI Output | 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| VGA Output | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output Mode | HDMI/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480 |
| Audio Output | 1-ch, RCA (Linear, 1 KO) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KO) |
| Decoding | |
| Decoding Format | H.265, H.265+, H.264, H.264+, MPEG4 |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Playback Mode | Normal/Smart, Event, Tag, Eternal File |
| Live View Window Division | 1/4/6/8/9/16 |
| Aux Port Window Division | 1/4/6/8/9/16 |
| Decoding Capability | 16-ch @ 1080p (30 fps) |
| Audio Compression | G.711ulaw, G.711alaw, G.722, G.726, MP2L2 |
| Network | |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | = 120W |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 8 TB capacity for each disk |
| Serial Interface | RS-485 (half-duplex), RS-232, Keyboard |
| Alarm In/Out | 4/1 |
| USB Interface | Front panel: 1 x USB 2.0; Rear panel: 1 x USB 3.0 |
| General | |
| Power Supply | = 180 W |
| Consumption | = 15W |
| Working Temperature | -10„ƒ~＋55„ƒ |
| Working Humidity | 10ï¼…~90ï¼… |
| Chassis | 1U |
| Dimension (W x D x H) | 385 x 315 x52 mm (11.6"x 9.5" x 1.6") |
| Weight | = 3 kg (6.6 lb) |
Downloads
Additional information
| Brand | Hikvision |
|---|---|
| Resolution | 12 MegaPixel |
| Technology | IP |
| HDD Bays | 2 HDD Bays |
| Features | AI Person/Vehicle Detection, PoE (Power over Ethernet) |
| Channels | 8 Channel |
