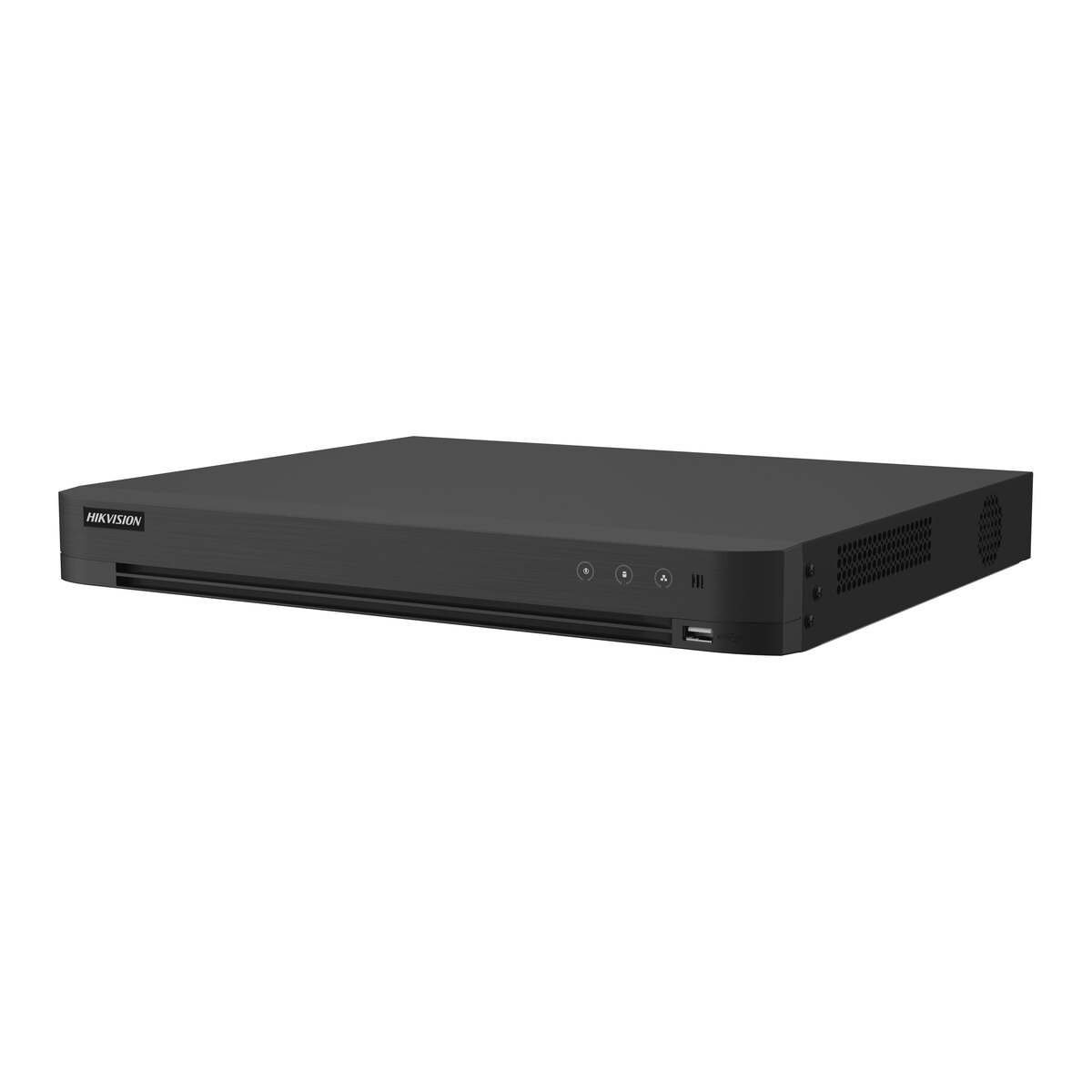

Hikvision 8CH 8MP/4K AcuSense 5-in-1 Power-over-Coax HD CCTV DVR Recorder iDS-7208HUHI-M2/PXT

8-channel 5-in-1 HD recording up to 8MP/4K
Power-over-Coax for compatible Turbo HD cameras
AcuSense human and vehicle alerts that cut false alarms
4K HDMI output for a local monitor

Description

The Hikvision iDS-7208HUHI-M2/PXT is an 8-channel Turbo HD digital video recorder for HD-TVI, AHD, HD-CVI and analogue cameras, with extra channels for IP cameras, with Power-over-Coax so compatible cameras take power down the coax.

AcuSense filters motion alerts down to people and vehicles, so a swaying tree or passing cat no longer fills your phone with notifications. It takes 2 SATA hard drives of up to 12TB each. No hard drive is included: choose one from our surveillance hard drives.

Key features

8-channel 5-in-1 HD recording up to 8MP/4K
Power-over-Coax for compatible Turbo HD cameras
AcuSense human and vehicle alerts that cut false alarms
4K HDMI output for a local monitor
2 SATA bays, up to 12TB per drive
H.265+ compression for longer recording on the same storage
Free Hik-Connect app for live view and playback on your phone

Need cameras to go with it? See our analog cameras, or send us a message with your camera count and we will check compatibility.

Specifications

Facial Recognition
Face Picture Library	Up to 16 face picture libraries; HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
Face Picture Comparison	4-ch face picture comparison alarm (HD analogue camera)
Motion Detection 2.0
Human/Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analogue channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Perimeter Protection
Human/Vehicle Analysis	Up to 8-ch (advanced model)
Facial Detection
Facial Detection and Capture	Face picture detection, face picture searchï¼› 4-ch face picture capture
Video and Audio
IP Video Input	8-ch (up to 16-ch), each up to 8MP
Analog Video Input	8-ch BNC interface (1.0 Vp-p, 75 O), supporting coax connection
PoC Camera Input	Support Hikvision PoC camera
HDMI Output	1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz HDMI/VGA simultaneous output
VGA Output	1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz HDMI/VGA simultaneous output
CVBS Input	PAL/NTSC
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
HDTVI Input	8 MP(3840 x 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328×1504)@20fps,5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input	5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
HDCVI Input	8 MP(3840 x 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
Audio Output	1-ch, RCA (Linear, 1 KO)
Audio Input	4-ch, RCA (2.0 Vp-p, 1 KO):8-ch via coaxial cable
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KO) (using the first audio input)
Recording
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate	Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate	32 Kbps to 10 Mbps
Dual-stream	Support main stream or sub stream
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bitrate	64 Kbps
Decoding
Decoding Capability	up to 24-ch 1080P@30fps
Network
Total Bandwidth	256 Mbps
Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP„¢, HTTPS, ONVIF, ISUP
Remote Connection	64
Network Interface	1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA	2 SATA interface
Capacity	up to 12 TB capacity for each disk
Serial Interface	RS-485 (half-duplex)
USB Interface	Front panel: 1 x USB 2.0; Rear panel: 2 x USB 3.0
Alarm In/Out	8/4
General
Power Supply	48 VDC, 2.5 A
Consumption	= 20 W (without HDD)
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10% to 90%
Dimension (W x D x H)	384 x 313 x 52 mm (15.1 x 12.3 x 2.0 inch)
Weight	= 1.78 kg (3.9 lb)
