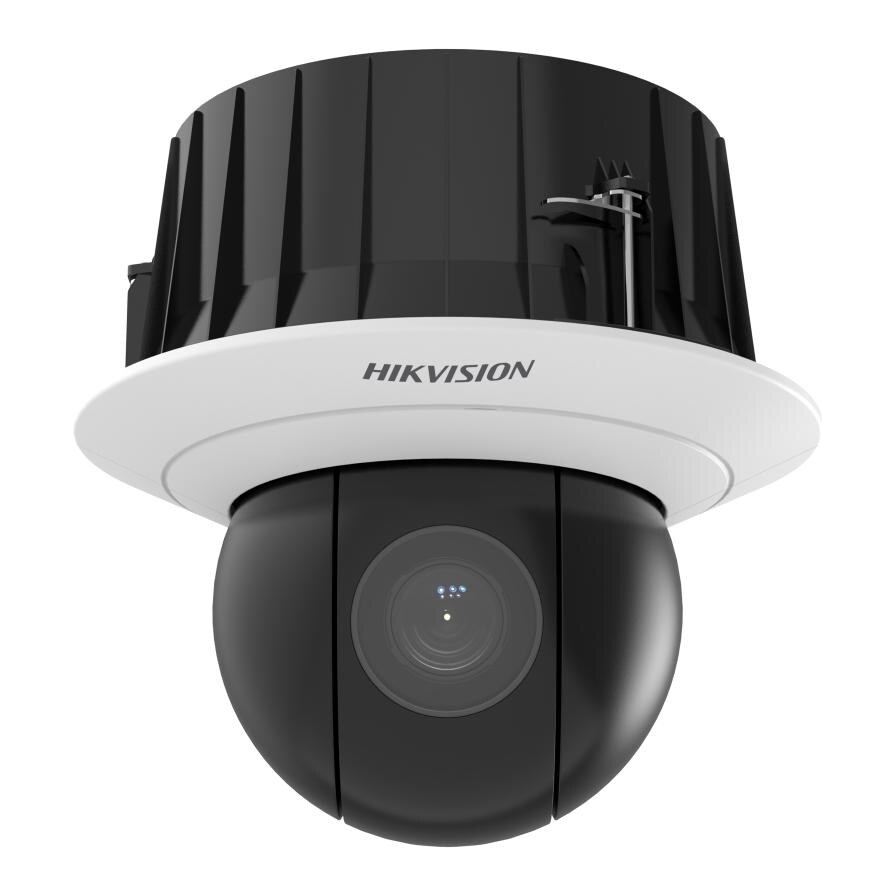

Hikvision 8MP (4K) 32x DarkFighter PTZ Network Camera DS-2DF6A832X-DE3
Login for Price
- Image Sensor: 1/1.8＂ progressive scan CMOS
- Max. Resolution: 3840 x 2160
- Min. Illumination: colour: 0.002Lux @ (F1.5:AGC ON)||B/W: 0.0002Lux @(F1.5:AGC ON)
- Zoom: 16x digital
Description
The Hikvision DS-2DF6A832X-DE3 is a 8MP (4K) 32x zoom PTZ network camera. DarkFighter is the Hikvision low-light range, built to keep the image clear in very little light. It records to a Hikvision NVR and can be viewed from anywhere in the Hik-Connect app.
Key features
- Image Sensor: 1/1.8＂ progressive scan CMOS
- Max. Resolution: 3840 x 2160
- Min. Illumination: colour: 0.002Lux @ (F1.5:AGC ON)||B/W: 0.0002Lux @(F1.5:AGC ON)
- Zoom: 16x digital
- Optical Zoom: 32x
- Focal Length: 6.7 mm to 214.4 mm, 32x optical
Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/1.8＂ progressive scan CMOS |
| Max. Resolution | 3840 x 2160 |
| Min. Illumination | colour: 0.002Lux @ (F1.5:AGC ON)||B/W: 0.0002Lux @(F1.5:AGC ON) |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Day & Night | ICR |
| Zoom | 16x digital |
| HLC | yes |
| 3D DNR | yes |
| Optical Zoom | 32x |
| DORI | Detect (25px/m): 2690 m Observe (63px/m): 1067 m Recognize (125px/m): 538 m Identify (250px/m): 269 m |
| Lens | |
| Focal Length | 6.7 mm to 214.4 mm, 32x optical |
| FOV | Horizontal field of view: 56.6° to 2.0° (wide-tele), Vertical field of view: 33.7° to 1.2° (wide-tele), Diagonal field of view: 63.4° to 2.3° (wide-tele) |
| Focus | Auto, semi-auto, manual, rapid focus |
| Aperture | F1.5 |
| Zoom Speed | approx. 4.5 s |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -20° to 90° (auto flip) |
| Pan Speed | pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s |
| Tilt Speed | tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s |
| Proportional Pan | yes |
| Presets | 300 |
| Preset Freezing | yes |
| Patrol Scan | 8 patrols |
| Pattern Scan | 4 pattern scans |
| Park Action | preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan |
| 3D Positioning | yes |
| PTZ Status Display | yes |
| Scheduled Task | preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output |
| Power-off Memory | yes |
| Video | |
| Main Stream | 50Hz: 25fps (3840 x 2160, 2560 x 1440, 1920×1080, 1280 x 960, 1280×720) 60Hz: 24fps (3840 x 2160,2560 x 1440, 1920×1080, 1280 x 960, 1280×720) |
| Sub-Stream | 50Hz: 25fps (704 x 576, 640 x 480, 352 x 288) 60Hz: 24fps (704 x 480, 640 x 480, 352 x 240) |
| Third Stream | 50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288), 60Hz: 24fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240) |
| Video Compression | H.265||H.264||MJPEG |
| H.264 Type | baseline profile||main profile||high profile |
| H.265 Type | main profile |
| Scalable Video Coding (SVC) | yes |
| Audio | |
| Audio Compression | G.711alaw||G.711ulaw||G.722.1||G.726||MP2L2||PCM |
| Network | |
| Client | iVMS-4200||Hik-Connect||Hikcentral |
| Web Browser | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Image | |
| Wide Dynamic Range (WDR) | 140 dB WDR |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | up to 24 masks||polygon region ||mosaic mask ||mask colour configurable |
| Regional Focus | yes |
| Regional Exposure | yes |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE |
| On-board Storage | Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KO ± 10%, 1 output (line out), line level, output impedance: 600 O |
| Alarm | 7 alarm inputs, 2 alarm outputs |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Event | |
| Basic Event | motion detection||video tampering alarm||alarm input and output |
| Smart Event | unattended baggage detection||object removal detection||Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection |
| Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
| Smart Tracking | manual tracking||event tracking |
| Deep Learning Function | |
| Face Capture | yes |
| General | |
| Power | 12 VDC, PoE |
| Dimension | Ø 290 mm x 274.8 mm (Ø 11.42" x 10.82") |
| Weight | Approx. 3.8 kg (8.38 lb.) |
| Operating Condition | -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing) |
| General Function | mirror, password protection, watermark, IP address filter |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Approval | |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2006+A2:2013, IEC 62368-1:2014+A11:2017); LOA (SANS IEC60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5 |
Downloads
Additional information
| Brand | Hikvision |
|---|---|
| Colour | White |
| Resolution | 8 MegaPixel |
| Technology | IP |
| Features | PoE (Power over Ethernet), Smart Tracking |
| Camera Type | PTZ |
| Night Vision | DarkFighter |
| Optical Zoom | 32x |
