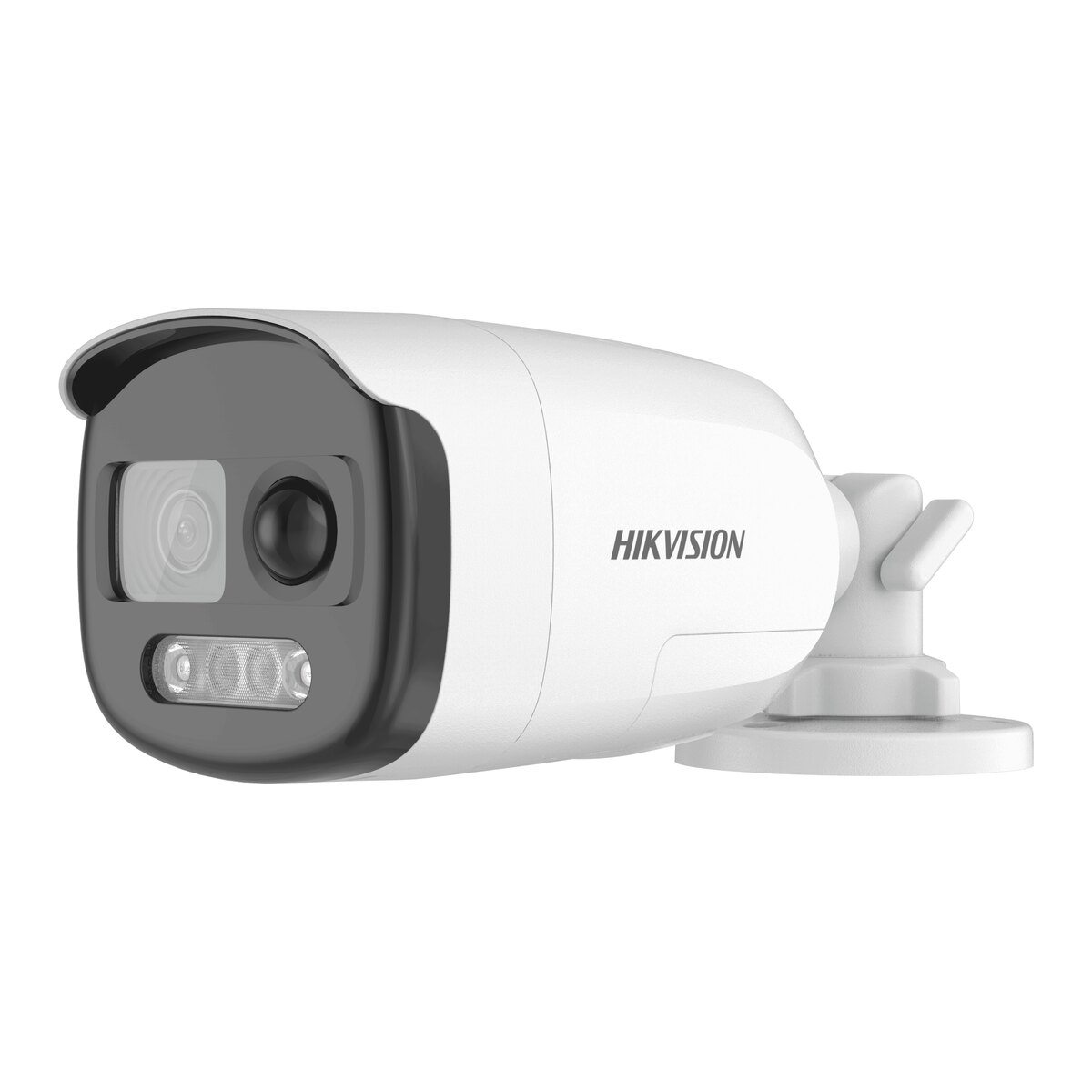

Hikvision 8MP (4K) ColorVu Turbo HD Bullet Camera 2.8mm DS-2CE12UF3T-PIRXO

Image Sensor: 8 MP CMOS
Max. Resolution: 3840 (H) × 2160 (V)
Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Lens Type: 2.8 mm, 3.6 mm fixed focal lens

Login to view Price SKU: DS-2CE12UF3T-PIRXO(2.8mm) Category: Analog CCTV Cameras Tags: 24/7 Colour Cameras, 4K Analog Cameras Brand: Hikvision

Description

The Hikvision DS-2CE12UF3T-PIRXO is a 8MP (4K) bullet Turbo HD camera with a 2.8mm lens. ColorVu keeps the picture in full colour after dark, using a wide aperture and a soft warm light instead of infrared. It connects to a Hikvision Turbo HD DVR over standard coax cable.

Key features

Image Sensor: 8 MP CMOS
Max. Resolution: 3840 (H) × 2160 (V)
Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Lens Type: 2.8 mm, 3.6 mm fixed focal lens
Lens Mount: M16
Supplement Light Range: Up to 40 m

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	8 MP CMOS
Max. Resolution	3840 (H) × 2160 (V)
Min. Illumination	0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time	PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
Day & Night	24/7 Color Imaging
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Signal System	PAL/NTSC
Lens
Lens Type	2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV	2.8 mm, horizontal FOV: 108°, vertical FOV: 57°, diagonal FOV: 127°3.6 mm, horizontal FOV: 91°, vertical FOV: 45°, diagonal FOV: 110°
Lens Mount	M16
Illuminator
Supplement Light Type	White Light
Supplement Light Range	Up to 40 m
Smart Supplement Light	Yes
Image Parameters Switch	STD/HIGH-SAT/HIGHLIGHT
Image Settings	AGC;Brightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light
Frame Rate	8 [email protected] fps/15 fps, 5 MP@20 fps, 1080P@25 fps/30 fps
Day/Night Mode	Color
Wide Dynamic Range (WDR)	=130 dB
Image Enhancement	WDR;BLC;HLC;Global;HLS
Privacy Mask	4 programmable privacy masks
Noise Reduction	3D DNR/2D DNR
White Balance	Auto/Manual
White Light	Auto/Off
Supplement Detection(PIR)
PIR Range	11 m
PIR Angle	110°
Interface
Video Output	1 HD analog output
Alarm	1 line outflashing light alarm (white)
Event
Motion Detection	4 programmable motion areas
General
Power	12 VDC ± 25%, max. 6.7 W*You are recommended to use one power adapter to supply the power for one camera.
Material	Front cover: Metal, Main body: Plastic
Dimension	82.6 mm × 77.1 mm × 213.2 mm (3.25" × 3.04" × 8.39")
Weight	Approx. 482 g (1.06 lb.)
Operating Condition	-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
Communication	HIKVISION-C
Language	English
Approval
Protection	IP67
