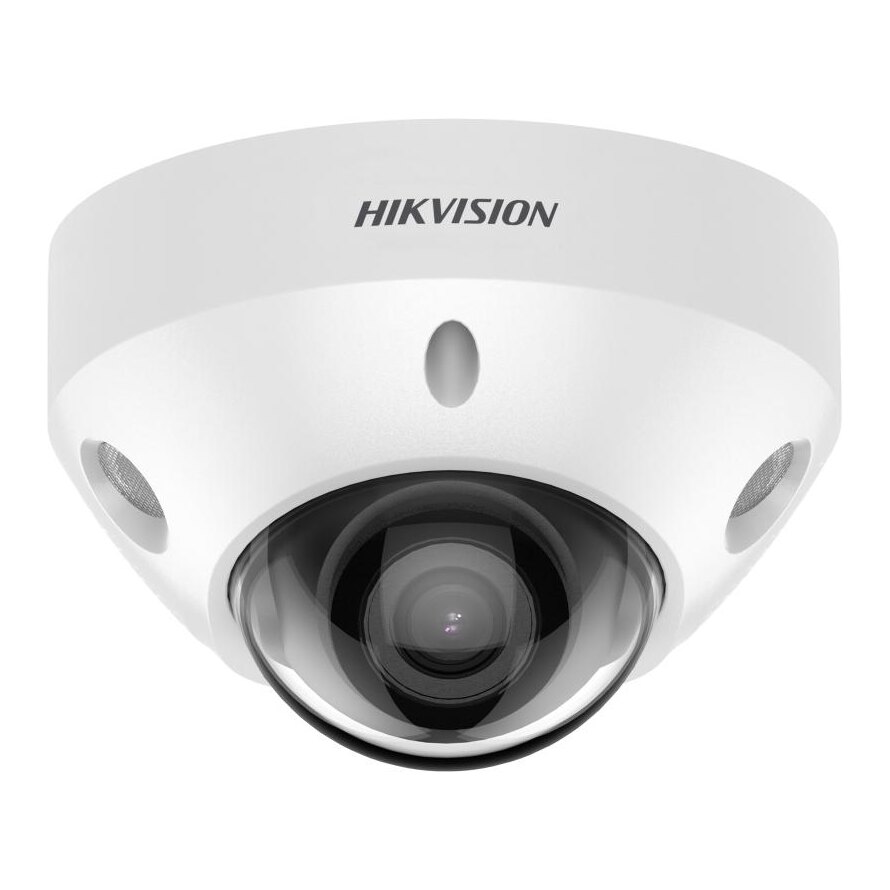

Hikvision 8MP AcuSense Mini Dome Network Camera 2.8mm DS-2CD2583G2-IS
If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products
- Image Sensor: 1/2.8€³ Progressive Scan CMOS
- Max. Resolution: 3840 x 2160
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Lens Type: Fixed focal lens, 2.8 mm
- Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
- Express delivery 1-2 working days
- Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
- +44 (0) 121 655 014610:00 - 17:00 Mon-Fri
Compatible brackets and mounts
Description
The Hikvision DS-2CD2583G2-IS is a 8MP mini dome network camera with a 2.8mm lens. AcuSense tells people and vehicles apart from other movement, so alerts come from intruders and not from leaves or passing headlights. It records to a Hikvision NVR and can be viewed from anywhere in the Hik-Connect app.
Key features
- Image Sensor: 1/2.8€³ Progressive Scan CMOS
- Max. Resolution: 3840 x 2160
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Lens Type: Fixed focal lens, 2.8 mm
- Focal Length & FOV: 2.8 mm, horizontal FOV 106.4°, vertical FOV 58.4°, diagonal FOV 124.8°
- Lens Mount: M12
Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.8€³ Progressive Scan CMOS |
| Max. Resolution | 3840 x 2160 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 mm |
| Focal Length & FOV | 2.8 mm, horizontal FOV 106.4°, vertical FOV 58.4°, diagonal FOV 124.8° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm: 1.4 m to 8 |
| DORI | |
| DORI | 2.8 mm: D: 88 m O: 35 m R: 18 m I: 9 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 20 fps (3840 x 2160) 25 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720) 60 Hz: 20 fps (3840 x 2160) 30 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720) |
| Sub-Stream | 50 Hz: 25 fps (640 x 480, 640 x 360) 60 Hz: 30 fps (640 x 480, 640 x 360) |
| Third Stream | 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360) 60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360) *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | = 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
| Built-in Microphone | Yes |
| Audio | -IS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | -IS: 1 input, 1 output (max. 12 VDC, 20 mA) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Line crossing detection, intrusion detection, face detection |
| Linkage | Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email |
| General | |
| Power | 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: (802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W |
| Dimension | Ø113.6 mm x 72.6 mm (Ø 4.5" x 2.9") |
| Package Dimension | 134 mm x 134 mm x 108 mm (5.3" x 5.3" x 4.3") |
| Weight | Approx. 400 g (0.9 lb.) |
| With Package Weight | Approx. 635 g (1.4 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Anti-flicker, heartbeat, password reset via e-mail, pixel counter |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015) |
| Safety | UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) |
| Environment | CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) IK10 (IEC 62262: 2002) |
Downloads
Additional information
| Brand | Hikvision |
|---|---|
| Lens | 2.8mm |
| Colour | White |
| Resolution | 8 MegaPixel |
| Technology | IP |
| Features | Built-in Microphone, PoE (Power over Ethernet), Vandal Resistant (IK10) |
| Camera Type | Dome |
| Night Vision | Infrared (IR) |
